Brand SIGLENT SDS2352X-E - Siglent Digital Storage Oscilloscope, 350MHz

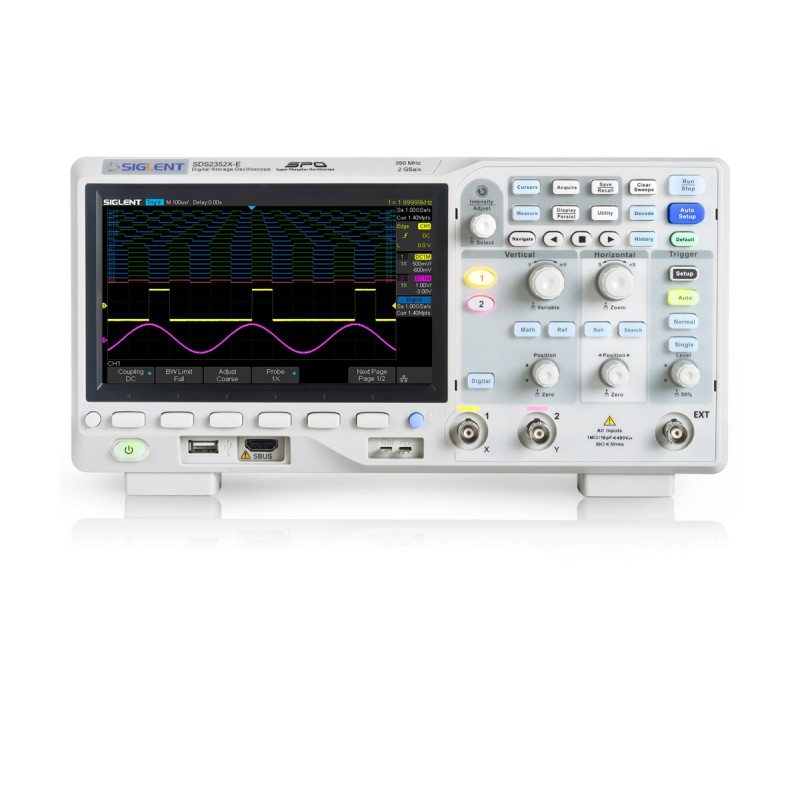

SDS2352X-E - Siglent Digital Storage Oscilloscope, 350MHz

SDS2352X-E - Siglent Digital Storage Oscilloscope, 350MHz
Brand: SIGLENT
Product Code: SDS2352X-E - Siglent Digital Storage Oscilloscope, 350MHz
Availability: 2-4 Weeks
*** Click here to view manufacturer specifications ***
Video
Price: CAD 1,216.55
Qty:

Product Overview

SIGLENT’s new SDS2000X-E Series Super Phosphor Oscilloscopes are available in two bandwidths; 200 MHz and 350 MHz. They each have a maximum sampling rate of 2 GSa/s and a standard record length of 28Mpts.The most commonly used functions can be accessed with its user-friendly one-button design.

The SDS2000X-E series employs a new generation of SPO technology. With its excellent signal fidelity, background noise is lower than similar products in the industry. It has a minimum vertical input range of 500 uV/div, an innovative digital trigger system with high sensitivity and low jitter, and a waveform capture rate of 400,000 frames/sec (sequence mode). It also employs a 256-level intensity grading display function and a color temperature display mode not found in other models in this class. Siglent’s newest oscilloscope offering supports multiple powerful triggering modes including serial bus triggering and decoding. History waveform recording and sequential triggering allow for extended waveform records to be captured, stored, and analyzed. Also included is the deep memory FFT. This math function uses upto 1 M samples for the FFT calculation, providing the SDS2000X-E with very high frequency resolution. The hardware co-processor executes true fast measurement and math to all of 28M sample points so that there is minimal distortion on analysis. It also supports searching and navigating, on-screen Bode plot, 16 channel digital /MSO (optional), an external USB powered 25 MHz AWG function generator module (option), a USB WIFI adapter for
wireless control and monitoring (option), and an embedded application that allows remote control via web browser. The features and high-performance of the SDS2000X-E oscilloscopes cannot be matched else anywhere at this price.

Features and Benefits

• 200MHz, 350MHz bandwidth models
• Real-time sampling rate up to 2 GSa/s (1 GSa/s per channel, if bothchannels active)
• The newest generation of SPO technology
• Waveform capture rate up to 110,000 wfm/s (normal mode), and 400,000 wfm/s (sequence mode)
• Supports 256-level intensity grading and color display modes
• Record length up to 28 Mpts
• Digital trigger system
• Intelligent trigger: Edge, Slope, Pulse Width, Window, Runt, Interval, Time out (Dropout), Pattern
• Serial bus triggering and decoding (standard), supports protocols IIC, SPI, UART, CAN, LIN
• Video trigger, supports HDTV
• Low background noise with voltage scales from 500μV/div to 10V/div
• 10 types of one-button shortcuts, supports Auto Setup, Default, Cursors, Measure, Roll, History, Display/Persist, Clear Sweep, Zoom and Print
• Segmented acquisition (Sequence) mode, divides the maximum record length into multiple segments (up to 80,000), according to trigger conditions set by the user, with a very small dead time segment to capturequalifying events
• History waveform record (history) function (maximum recorded waveform length is 80,000 frames)
• Automatic measurement function for 38 parameters as well as Measurement Statistics, Zoom, Gating, Math, History and Reference functions
• 1 Mpt FFT Math and measurement functions use all sampled data points in memory (up to 28 Mpts)
• Math functions (FFT, addition, subtraction, multiplication, division, integration, differential, square root)
• Preset key can be customized for user settings or factory “defaults”
• Security Erase mode
• High Speed hardware based Pass/ Fail function
• 16 Digital channels (MSO) (option)
• Bode plot
• Search and navigate
• USB AWG module(option)
• USB WIFI adapter(option)
• Web Browser based control
• Large 7 inch TFT -LCD display with 800 * 480 resolution
• Multiple interface types: USB Host, USB Device (USB -TMC), LAN, Pass / Fail, Trigger Out
• Supports SCPI remote control commands
• VXI-11+SCPI, Telnet (port 5024) +SCPI and Socket (port 5025) +SCPI programming over LAN
• Supports web control and virtual instrument control panel for both PC and mobile terminals
• Web control update rate of up-to 10 times/s provides nearly real-time update rate
• Supports Multi-language display and embedded online help
