Memory Recorder 8968 - HIOKI High Resolution Unit for MR8847

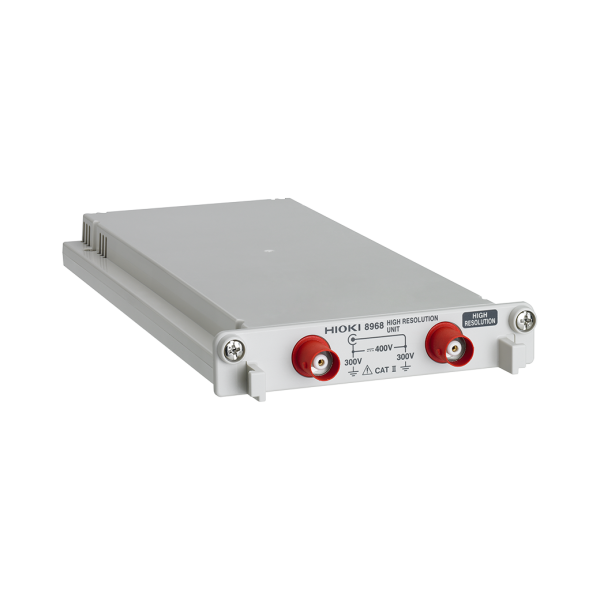

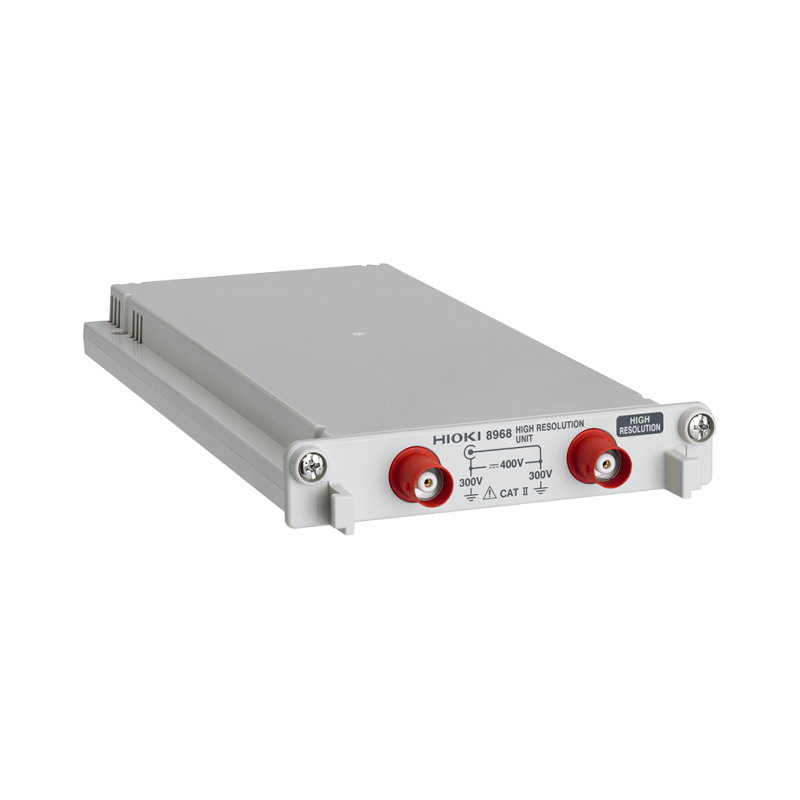

8968 - HIOKI High Resolution Unit for MR8847

8968 - HIOKI High Resolution Unit for MR8847
Brand: HIOKI
Product Code: 8968
Availability: 2-4 Weeks
Price: CAD 2,094.40
Qty:


All products ship from Toronto, Canada by courier. Shipping is usually 1-10 days depending on your location in Canada. Shipping is free of charge. Orders received before 2:00pm (Mon-Fri) will be shipped on the same day (provided item is available in stock).

You can pay with all major credit cards. On our side, we use PayPal to process all credit card transactions. But on your side, it will be like any regular purchase. You do not need to create a PayPal account. From the shopping cart, simply select "PayPal / Credit Card", then select "Pay with a credit or Visa debit card".

Customer satisfaction guaranteed, or your money back. RCC Electronics is proudly Canadian. We have been selling the best test equipment since 1978.



Instantly Measure Waveforms Using 16-bit high Resolution Key Features • 16-bit A/D high resolution measurement • Reliably capture instantaneous waveforms using high speed 1MS/s sampling and A/D converter • Isolated input, up to 300 V AC/DC from the earth

Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)

Measurement functions Number of channels: 2, for voltage measurement
Input connectors Isolated BNC connector (input impedance 1 MΩ, input capacitance 30 pF),
Max. rated voltage to earth: 300 V AC, DC (with input isolated from the unit, the maximum voltage that can be applied between input channel and chassis and between input channels without damage)
Measurement range 5 mV to 20 V/div, 12 ranges, full scale: 20 div, AC voltage for possible measurement/display using the memory function: 280 V rms, Low-pass filter: 5/50/500 Hz, 5 k/50 kHz
Anti-aliasing filter Integrated filter for suppressing aliasing distortion caused by FFT processing (automatic cutoff frequency setting/OFF)
Measurement resolution 1/1600 of measurement range (using 16-bit A/D conversion and when installed in the 8847)
Highest sampling rate 1 MS/s (simultaneous sampling across 2 channels)
Measurement accuracy ±0.3 % of full scale (with filter 5 Hz, zero position accuracy included)
Frequency characteristics DC to 100 kHz -3 dB, with AC coupling: 7 Hz to 5 MHz -3dB
Input coupling AC/DC/GND
Max. allowable input 400 V DC (the maximum voltage that can be applied across input pins without damage)
Dimensions and mass 106 mm (4.17 in) W × 19.8 mm (0.78 in) H × 196.5 mm (7.74 in) D, 250 g (8.8 oz)
Accessories None
