> Brand: BAUR SSG500 - BAUR HV Surge Generator

SSG500 - BAUR HV Surge Generator

SSG500 - BAUR HV Surge Generator
SSG500 - BAUR HV Surge Generator
Brand: BAUR
Product Code: SSG500
Availability: 2-4 Weeks
*** Click here to view manufacturer specifications ***

All products ship from Toronto, Canada by courier. Shipping is usually 1-10 days depending on your location in Canada. Shipping is free of charge. Orders received before 2:00pm (Mon-Fri) will be shipped on the same day (provided item is available in stock).

You can pay with all major credit cards. On our side, we use PayPal to process all credit card transactions. But on your side, it will be like any regular purchase. You do not need to create a PayPal account. From the shopping cart, simply select "PayPal / Credit Card", then select "Pay with a credit or Visa debit card".

Customer satisfaction guaranteed, or your money back. RCC Electronics is proudly Canadian. We have been selling the best test equipment since 1978.



Surge voltage generators are used for pre-locating as well as for pin-pointing of high and low resistance faults in power cables. The stored energy of the high voltage capacitors is fed at intervals into the faulty cable. This causes an acoustic noise at the fault position which can be detected with a ground microphone and an audio frequency receiver.

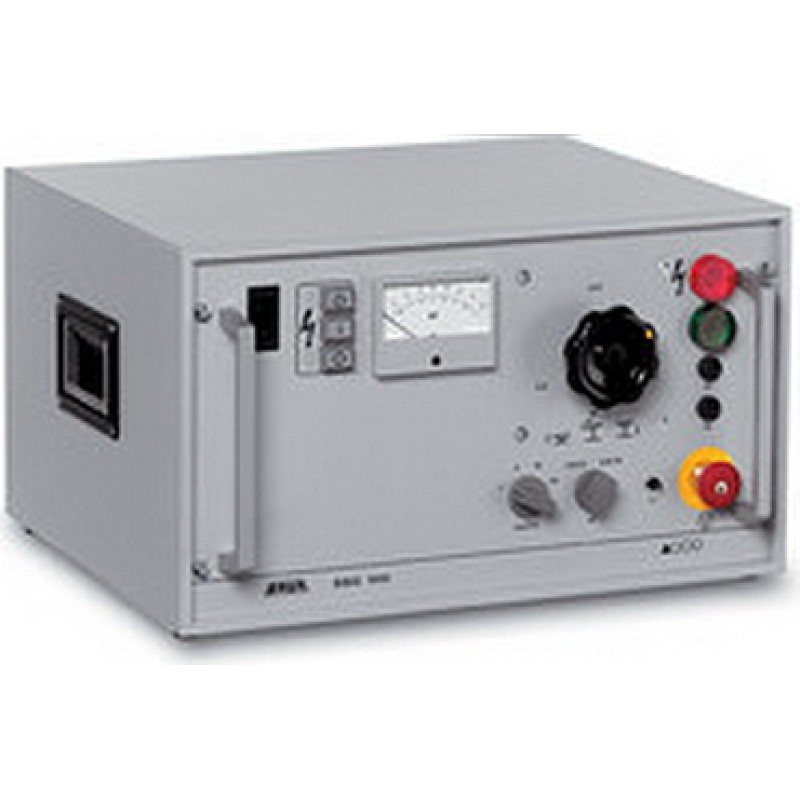

The SSG 500 is a portable surge voltage generator in a sturdy 19" steel housing. The output voltage is selectable in 3 ranges, 4 / 8 / 16 kV. Maximum safety is guaranteed by a safety interlock circuit, automatic discharging device, enclosed housing and separation between operation and protection ground. The high voltage is measured in 3 ranges on a kV-meter.



Features

  • Easy to operate
  • Solenoid operated surge switch
  • Automatic discharge device
  • Max. surge energy 512 joule
  • Output voltage: 3, 6, 12 kV and 4, 8, 16 kV
  • 2 selectable impulse frequencies
  • DC operation for cable testing and cable fault location
  • Lightweight, easily portable
  • Safety control circuit according to VDE 0104
