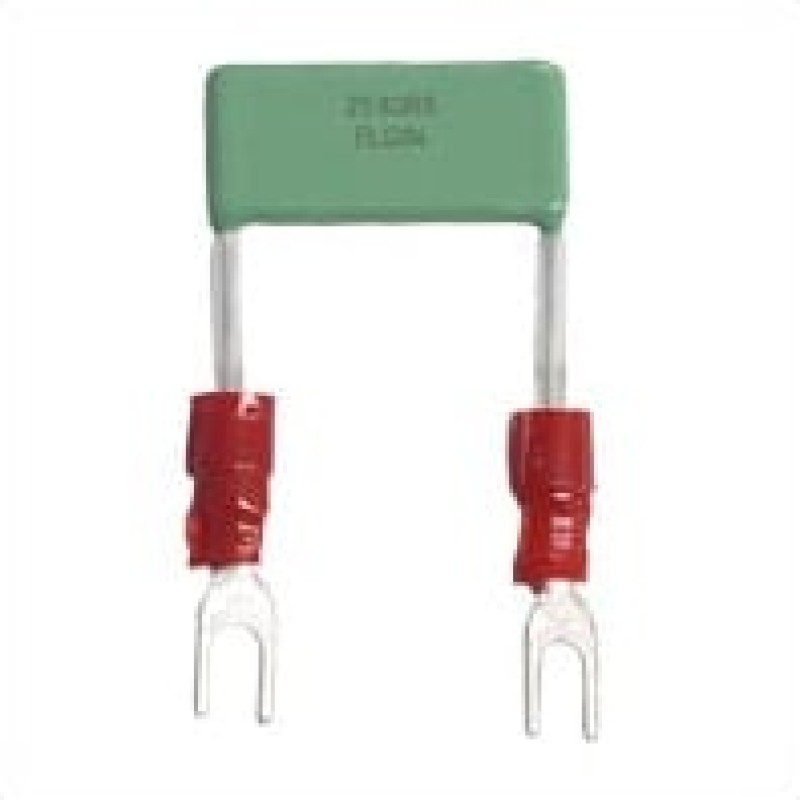

B-551- GRAPHTEC Shunt Resistor (1pc/pack) (soldered on lugs for terminal block use)

Name: B-551- GRAPHTEC Shunt Resistor (1pc/pack) (soldered on lugs for terminal block use)
Brand: GRAPHTEC Instruments
SKU: B-551
Price: 63.00 CAD
Availability: InStock

Click Image for Gallery

Brand: GRAPHTEC Instruments
Product Code: B-551
Availability: In Stock

CAD 63.00

Qty: Add to Cart

Add to Enquiry List Add to Compare

Description

250-ohm shunt resistor

The GRAPHTEC B-551 is a precision shunt resistor used to convert a 4–20 mA current signal to a 1–5 V input signal.

Verified details

Resistance: 250 Ω ±0.1%
Rated power: 1 W
Maximum operating voltage: 15.8 V
Quantity: One resistor is required per measurement channel

Compatibility

Officially listed for supported GRAPHTEC GL7000, GL2000, GL980, GL860, GL840, GL260, GL240 and GLT400 inputs. Screwless-terminal restrictions apply.

Before ordering

Confirm the exact logger model, connection type and required quantity with RCCE before ordering.

Technical reference

Checked against the official GRAPHTEC supplies listing.
