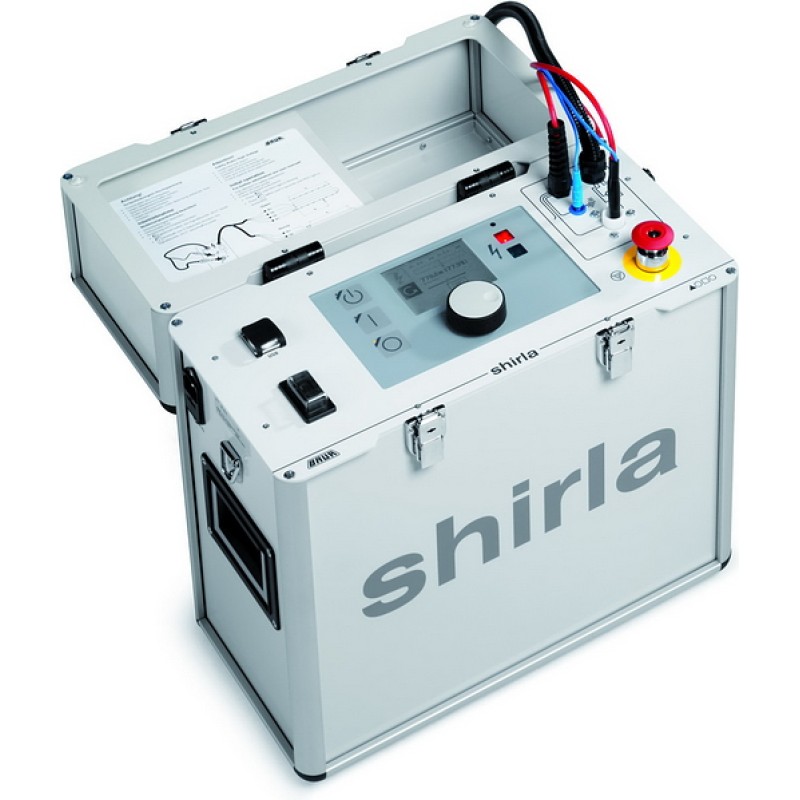

SHIRLA (Rental) - BAUR Cable Sheath Fault Locator
Product Code: SHIRLA (Rental)
Availability: In Stock
*** Click here to view manufacturer specifications ***
This is a rental unit. Prices showing are for a 2-week rental.
All-in-one, fully automatic cable sheath testing and fault location system. This unique device is used for cable and cable sheath testing, fault prelocation as well as for sheath fault pin pointing according to the step voltage method.
The special measuring bridge is performing the measurements according to Murray and Glaser. With the integrated high voltage DC source, shirla allows prelocation of low resistive as well as high resistive cable faults. The measuring principle enables prelocation of faults especially at unshielded control- and lighting cables as well as cable sheath!
Analyses are done automatically and the results are displayed digitally. For cable fault pin pointing according to the step voltage method, shirla applies a defined DC pulse pattern and the step voltage can be picked up by using the KMF1 or UL receiver set.
- Cable and cable sheath testing up to 10kV
- Resistance measurement
- Cable and cable sheath fault prelocation with high precision measuring bridge
- Definable cable sections with individual adjustable length, cross section and conductor material
- Cable sheath fault pin pointing
- Integrated discharge unit
- Step less voltage adjustment
- Automatic reporting function
- Mains and battery operated
- Menu control via one button operation
- Timer function for testing and switch-on delay time
