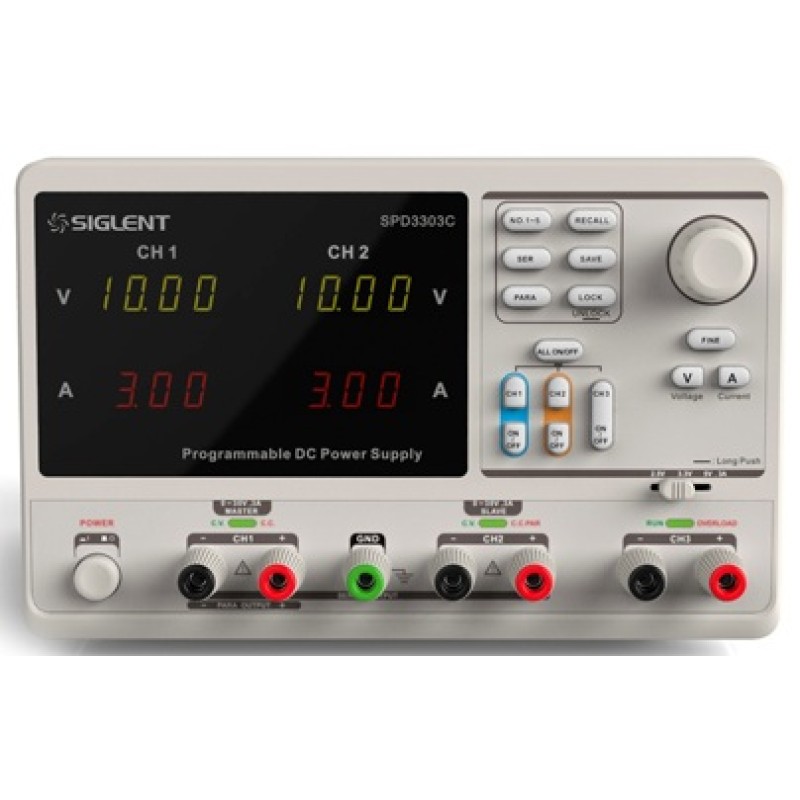

SPD3303C - Siglent Digital DC Power Supply - 30V/3A

SPD3303C - Siglent Digital DC Power Supply - 30V/3A
Click Image for Gallery
SPD3303C - Siglent Digital DC Power Supply - 30V/3A SPD3303C - Siglent Digital DC Power Supply - 30V/3A
Brand: SIGLENT
Product Code: SPD3303C
Availability: In Stock
Specifications: Link to Data Sheet
Video: Link to Video
CAD 464.40
Qty: Add to Cart
Add to Enquiry List Add to Compare

Features and Benefits:

●3 independent high precision output：30V/3A*2,2.5V/3.3V/5V/3A*1,total 195W power

●4 digits voltage and 3 digits current display, min resolution: 10mV, 10mA

●Three output modes: independent, series and parallel

●100V/120V/220V/230V compatible design, to meet the need of different power grids

●Smart temperature controlled fan, effectively reduce the noise

●Save/Recall 5 group system specifications, support data storage expansion

●Connected to PC via USB Device, support SCPI command, to meet the control and communication needs



Channels



CH1：DC voltage range：0-30V，DC current range：0-3A

CH2：DC voltage range：0-30V，DC current range：0-3A

CH3：DC voltage range：2.5/3.3/5.0V，DC current range：0-3A

Max output power

195W

Min voltage/curren

resolution

 10mV  10mA

Voltage/Current display

digits

LED

4 digits voltage and 3 digits current display

Ripple noise

   ≤1mVrms (5Hz～1MHz)

   ≤3mArms

Standard interface

USB Device

Dimension

210mm(W)×130mm(H)×265mm(D)

Weight

7.5kg



PSU | Exact Specifications
Output Channels 3
Channel Output Configuration 0–32 V/0–3.2 A × 2; 2.5/3.3/5 V, 3.2 A × 1
Maximum Single-Channel Voltage 32 V
Maximum Single-Channel Current 3.2 A
Maximum Total Output Power 220 W
Power Supply Topology Linear
Programming Resolution 10 mV/10 mA
Remote Sense No
Series/Parallel Capability Yes
Interfaces USB
Display LED
Protection Functions OVP / OCP / OTP
Form Factor Benchtop
PSU | Filter Facets
Instrument Type Programmable DC Power Supply
Channel Count 3
Voltage Class >20–40 V
Current Class ≤3.2 A
Power Class >150–300 W
Topology Linear
Programmable Yes
Remote Control Yes
Form Factor Benchtop
