• Spectrum Analysis   9 KHz – 1.5 GHz  –  (Standard)
• Vector Network Analysis  10 MHz – 1.5 GHz (Standard）
• Distance-to-fault (Optional)
• Digital Modulation Analysis (Optional)
• Touch-screen display
• -156 dBm/Hz Displayed Average Noise Level (Typ.)
• -99 dBc/Hz @10 kHz Offset Phase Noise (1 GHz, Typ.)
• 1 Hz Minimum Resolution Bandwidth (RBW)
• Supports mouse, keyboard, and web browser-based remote control

Description

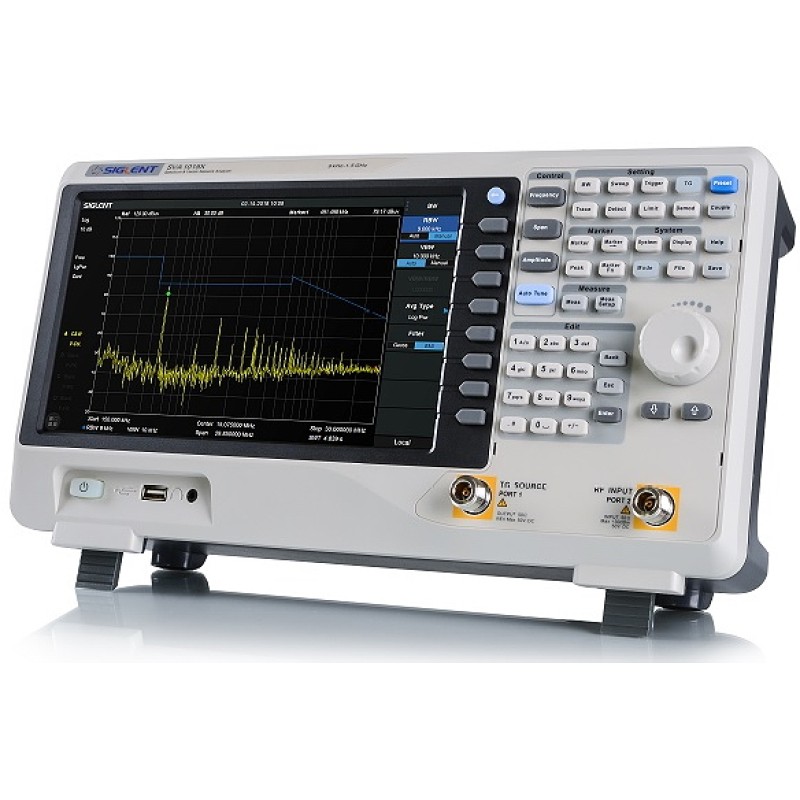

The SIGLENT SVA1000X series spectrum & vector network analyzers are powerful and flexible tools for broadcast and RF device / system testing. With a wide frequency range from 9 kHz to 1.5 GHz, the analyzer delivers reliable automatic measurements and plenty of features including a tracking generator and multiple modes of operation: The base model is a swept super-heterodyne spectrum analyzer (9 KHz -1.5 GHz) and optional functions include a vector network analyzer (10 MHz – 1.5 GHz) (S11, S21), a Frequency Domain Reflectometery based distance-to-fault locator, and a modulation analyzer. Applications include broadcast monitoring/evaluation, site surveying, EMI pre-compliance,research and development, education, production and maintenance.

Additional Options

SVA1000X-DTF: Adds Distance to Fault option

SVA1000X-DMA: Adds Digital Modulation Analysis option, including ASK & FSK

SVA1000X-AMA: Adds Analog Modulation Analysis option, includes AM & FM

SVA1000X-EMI: Adds EMI Measurement option

SVA1000-AMK: Adds Advanced Measurement Kit option (ACPR, CHPower, OBW, T-Power, TOI, 3-D Waterfall Mode)

F503ME: Mechanical Calibration Kit (includes short, open, 50 ohm termination)
