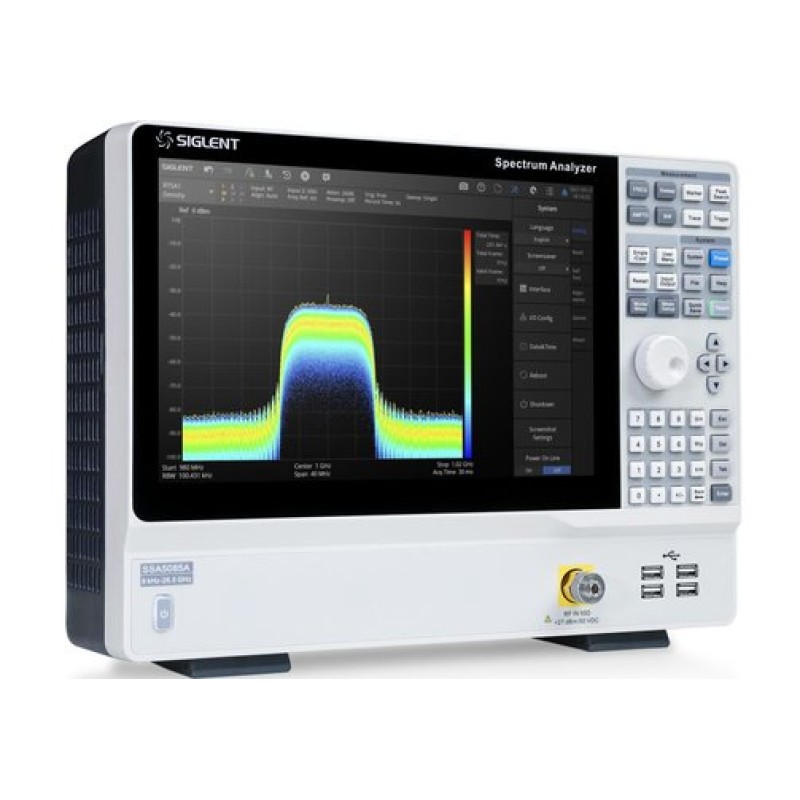

SSA5085A - Siglent Spectrum Analyzer - 26.5 GHz

Name: SSA5085A - Siglent Spectrum Analyzer - 26.5 GHz
Brand: SIGLENT
SKU: SSA5085A
Price: 33968.70 CAD
Availability: OutOfStock

Pre-Order

Click Image for Gallery

Brand: SIGLENT
Product Code: SSA5085A
Availability: Pre-order item. Add item to cart and ETA will be 2-4 weeks.

CAD 33,968.70

Qty: Add to Cart

Add to Enquiry List Add to Compare

Description Specification

9 kHz ~ 26.5 GHz; RBW 1 Hz ~ 10 MHz; DANL -165 dBm/Hz; SSB <-105 dBc/Hz; RTSA BW up to 40 MHz(option)

SA \| Exact Specifications
Frequency Range	9 kHz-26.5 GHz
Max Frequency	26.5 GHz
Displayed Average Noise Level (DANL)	-165 dBm/Hz
Phase Noise	<-105 dBc/Hz @ 1 GHz, 10 kHz offset
Resolution Bandwidth (RBW)	1 Hz-10 MHz
Real-Time Analysis Bandwidth	25 MHz standard; 40 MHz option
Tracking Generator	Optional
VNA Capability	No
Form Factor	Benchtop
Display	12.1-inch multi-touch
SA \| Filter Facets
Instrument Type	Real-Time Spectrum Analyzer
Max Frequency Range	13.61-26.5 GHz
Real-Time Capability	Yes
Analysis Bandwidth	25.1-40 MHz
Tracking Generator	Optional
VNA Capability	No
Port Count	Not Applicable
Form Factor	Benchtop
