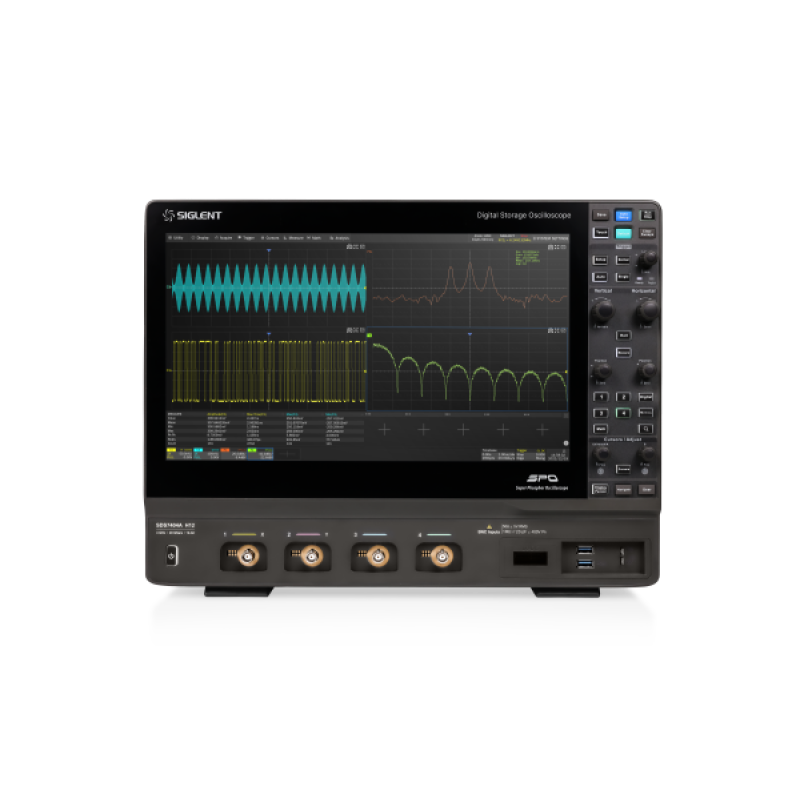

SIGLENT SDS7604AP 6 GHz High-Resolution Oscilloscope

The SDS7604AP is a four-channel, 12-bit oscilloscope for high-speed signal integrity, serial-bus, embedded-system and compliance-test applications. The AP architecture provides 20 GSa/s real-time sampling on all four analog channels.

Key capabilities

• 6 GHz analog bandwidth with four analog channels plus external trigger
• 20 GSa/s real-time sampling on all channels
• Standard 1 Gpts memory per channel; optional expansion to 2 Gpts per channel
• Up to 1,000,000 waveforms per second
• 15.6-inch HD capacitive multi-touch display
• 12-bit ADC with mixed-signal, serial analysis and advanced measurement options

Contact RCCE for Canadian pricing, availability, compatible probes, compliance-test options and configuration guidance.
