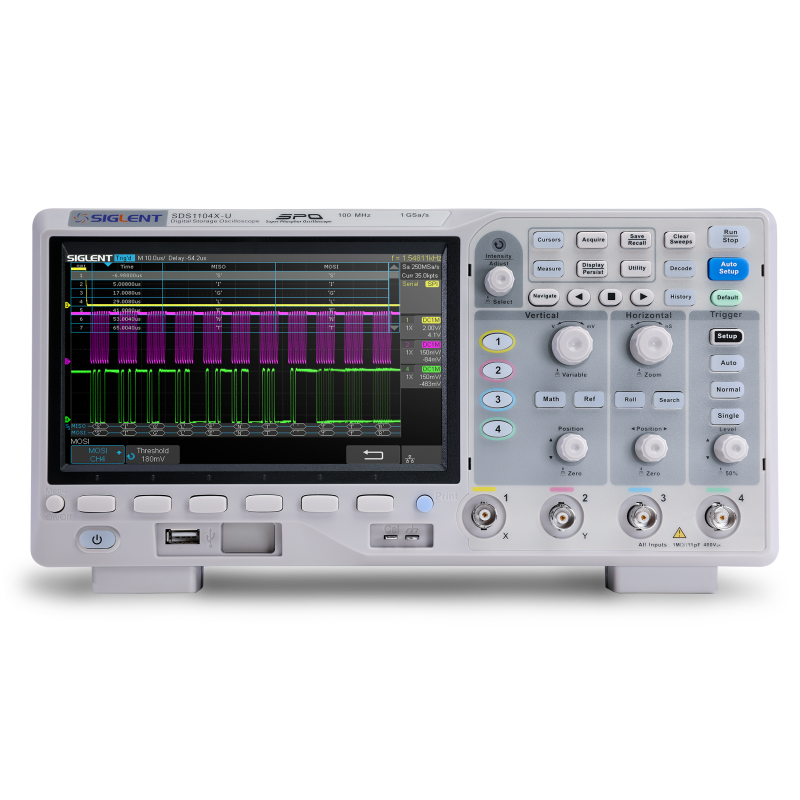

SDS1104X-U - Siglent 100MHz, 4CH Oscilloscope

SIGLENT’s SDS1000X-U Series Super Phosphor Oscilloscopes is available in one bandwidth, 100 MHz. It has a maximum
sample rate of 1 GSa/s and a maximum record length of 14 Mpts. For ease-of-use, the most commonly used functions
can be accessed with its user-friendly front panel design. The SDS1000X-U series employs a new generation of SPO
(Super -Phosphor Oscilloscope) technology that provides excellent signal fidelity and performance. It comes with an
innovative digital trigger system with high sensitivity and low jitter, and a waveform capture rate of 400,000
frames/sec (sequence mode). The SDS1000X-U also employs a 256-level intensity grading display function and
a color temperature display mode not found in other models in this class. SIGLENT’s latest oscilloscope offering supports
multiple powerful triggering modes including serial bus triggering. Serial bus decoding for IIC, SPI, UART, CAN, and
LIN bus types are included. The X-U models also include History waveform recording and sequential triggering that
enable extended waveform recording and analysis. Another powerful addition is the new 128k point FFT math function
that gives the SDS1000X-U very high frequency resolution when observing signal spectra. The new digital design
includes a hardware co-processor that delivers measurements quickly and accurately without slowing
acquisition and front-panel response. SDS1000X-U also supports searching and navigating. The features and
performance of SIGLENT’s new SDS1000X-U cannot be matched anywhere else in this price class
