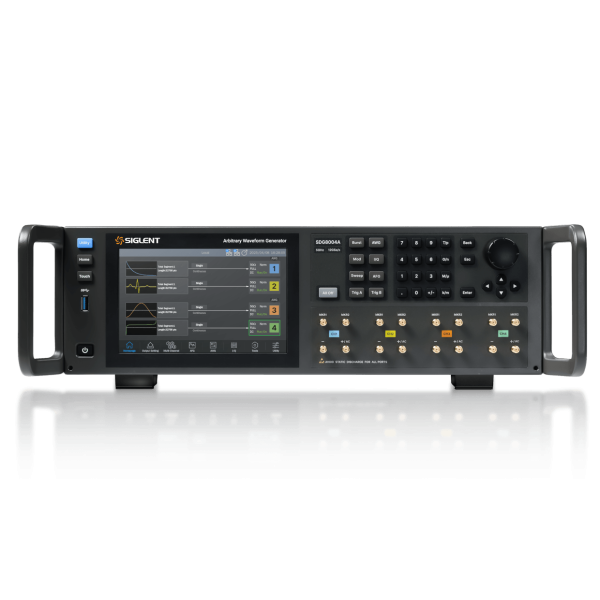

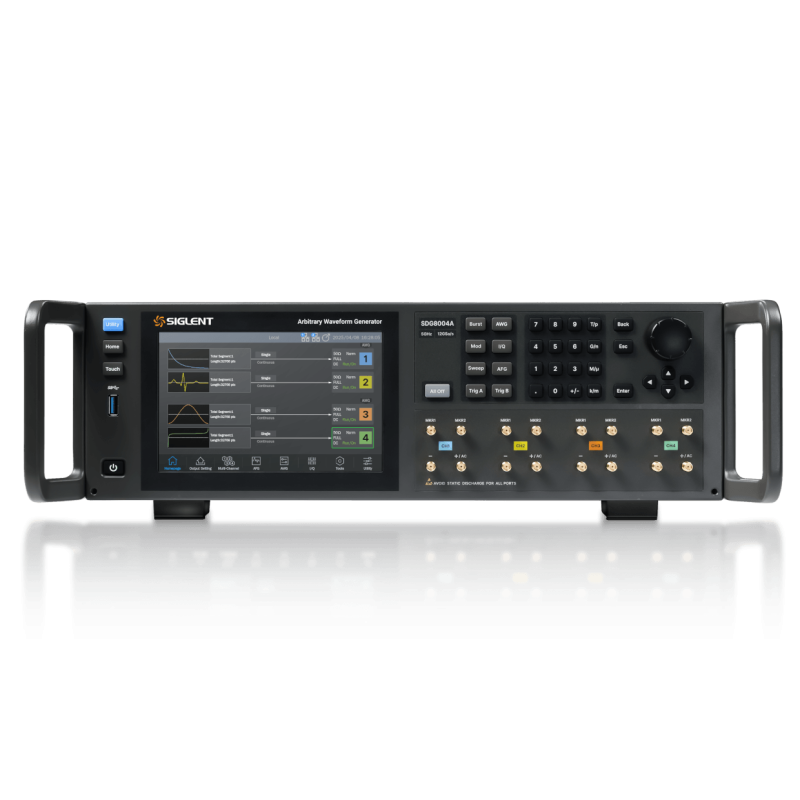

SIGLENT SDG8004A 4-Channel Arbitrary Waveform Generator

The SDG8004A is a four-channel function and arbitrary waveform generator for creating synchronized test signals in design, verification and production environments. Its high-speed, high-resolution outputs support complex waveform playback, modulation and serial-pattern testing.

Key Features

• Four analog output channels
• 16-bit vertical resolution
• Maximum output frequency of 5 GHz and interpolated sampling up to 12 GSa/s
• Up to 2 GHz modulation bandwidth
• Supports vector modulation and high-speed serial pattern generation

Optional software features are sold separately and require the SDG8000A instrument. Confirm option requirements when ordering.

Specifications

SIGLENT official SDG8000A product information · Official datasheet

Standard Accessories

• 1 × USB cable
• 1 × wireless mouse
• 1 × power cord
• 2 × SMA coaxial cables
• 8 × 50 Ω end connectors (4-channel model)
• 1 × Quick Start guide
• 1 × calibration certificate

Standard accessory information is based on SIGLENT SDG8000A ordering information.

Optional Accessories

• SDG8000-4GPTS — 4 G point waveform storage option
• SDG8000-ACAMP — AC amplified output option
• SDG8000-DCAMP — DC amplified output option
• SDG8000-HSS — high-speed serial waveform option
• SDG8000-IQ — IQ vector signal generation option
• SDG8000-MTONENL — multi-tone and LFM option
• SDG8000-Multi-Level SEQ — complex multi-level sequence waveform option
• DynamicPort-Cable — Dynamic Jump Interface Cable
• USB-GPIB adapter
• 10M_OCXO_L — OCXO timebase; factory assembly and calibration only

Options and accessories are sold separately unless specifically included on the quotation.
