Product Overview

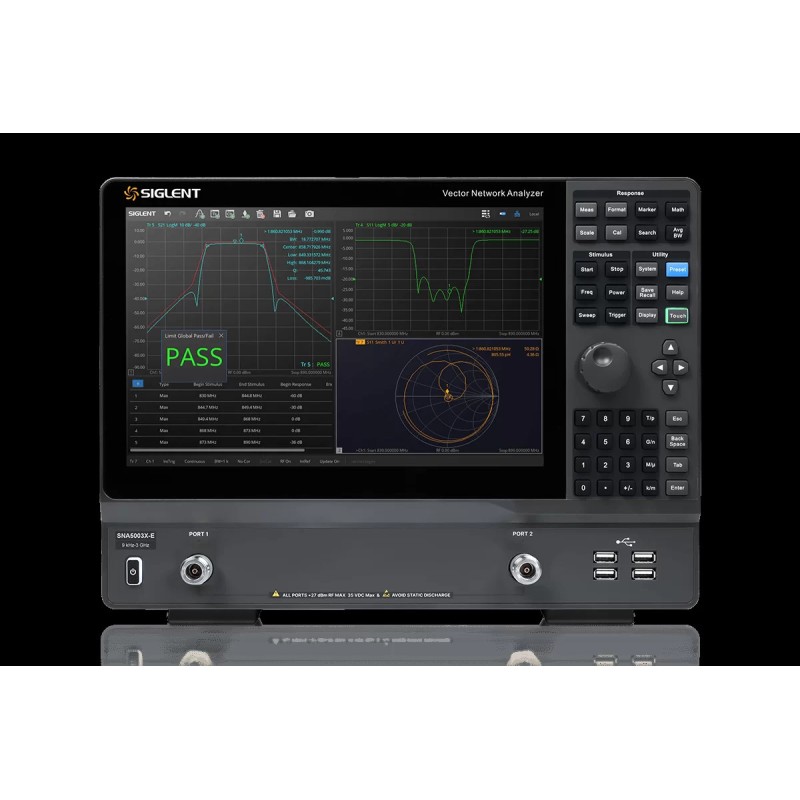

The SNA5000X-E vector network analyzer is a compact, cost‑effective entry‑level model in the SNA5000 series, retaining the core performance architecture of the SNA5000A family and focusing on the fundamentals of vector network analysis. Covering 9 kHz to 6.5 GHz with 1 Hz frequency resolution, adjustable IF bandwidth from 1 Hz to 10 MHz, output power from –40 dBm to +10 dBm, and a typical dynamic range of 125 dB, it delivers stable, accurate measurements for R&D, education, production, and quality inspection, offering professional RF measurement performance and intelligent operation in an economical, all‑in‑one solution.
Key Features
-
Frequency range: 9 kHz – 6.5 GHz
-
Frequency resolution: 1 Hz
-
Level resolution: 0.05 dB
-
Range of IFBW: 1 Hz~10 MHz
-
Setting range of output level：-40 dBm ~ +10 dBm
-
Dynamic range: 125 dB (typ.)
-
Types of calibration: Response calibration, Enhanced Response calibration, Full-one port calibration, Full-two port calibration, TRL calibration
-
Types of measurement: Scattering-parameter measurement, differential-parameter measurement, receiver measurement, time-domain parameter analysis, impedance conversion, fixture simulation, adapter removal/insertion, spectrum analysis
-
Internal Bias-Tee connections
-
Interface: LAN, USB Device, USB Host (USB-GPIB)
-
Remote control: SCPI/ Labview/ IVI based on USB-TMC / VXI-11 / Socket /Telnet / WebServer
-
12.1-inch touch screen
-
Video output: HDMI
