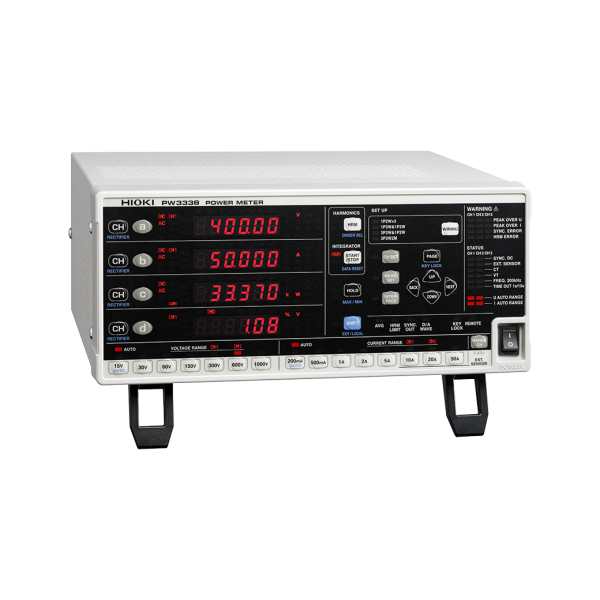

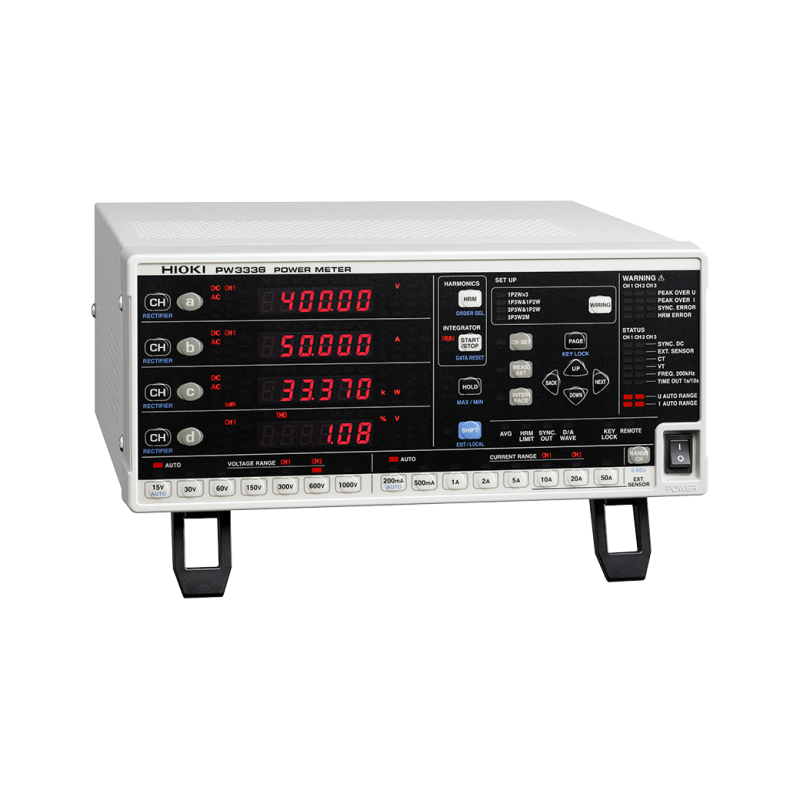

PW3336 - HIOKI AC/DC Power Meter - 2Channel

PW3336 - HIOKI AC/DC Power Meter - 2Channel

Official HIOKI product information for PW3336 - HIOKI AC/DC Power Meter - 2Channel.

Key Capabilities

• Compatible with the SPECpower® (*1) benchmark for server power consumption
• Measure DC and single-phase 2-wire to 3-phase 3-wire with 2-channel input
• For development and production of motors, inverters, power conditioners, power supplies, and other devices
• High-precision basic accuracy of ±0.1 % (*2)
• Wide frequency bandwidth of 0.1 Hz to 100 kHz or DC
• High-current measurement up to 65 A of direct input
• Harmonic measurement up to the 50th order according to IEC 61000-4-7
• High-accuracy measurement, even with a low power factor for no-load testing of transformers and motors

Contact RCC Electronics for Canadian availability, configuration guidance and a formal quotation.

Technical Specifications

Official HIOKI product information

Standard Accessories

• Instruction manual ×1, Measurement guide ×1, Power cord ×1

Optional accessories below are not included unless stated on the RCCE quotation.

Optional Accessories

• AC FLEXIBLE CURRENT SENSOR CT9667 — • 10 Hz to 20 kHz, ±2% accuracy; • Rated 5000 A/ 500 A AC
• CLAMP ON SENSOR 9660 — • 40Hz to 5kHz, ±0.3% accuracy; • Rated 100 A AC, 1 mV/A output rate
• CLAMP ON SENSOR 9661 — • 40Hz to 5kHz, ±0.3% accuracy; • Rated 500 A AC, 1 mV/A output rate
• CLAMP ON SENSOR 9669 — • 40Hz to 5kHz, ±1.0% accuracy; • Rated 1000 A AC, 0.5 mV/A output rate
• AC/DC CURRENT PROBE CT6841A — • Frequency bandwidth DC to 2 MHz; • Rated current 20 A AC/DC; • Automatic phase correction function
• AC/DC CURRENT PROBE CT6843A — • Frequency bandwidth DC to 700 kHz; • Rated current 200 A AC/DC; • Automatic phase correction function
• AC/DC CURRENT SENSOR CT6862-05 — • DC to 1MHz, ±0.05% accuracy; • Rated 50A AC/DC
• AC/DC CURRENT SENSOR CT6863-05 — • DC to 500kHz, ±0.05% accuracy; • Rated 200A AC/DC
• AC/DC CURRENT SENSOR CT6873 — • DC to 10 MHz; • Rated 200 A AC/DC
• CLAMP ON SENSOR 9272-05 — • 1 Hz to 100 kHz, ±0.3% accuracy; • Rated 20 A/200 A AC
• AC/DC CURRENT PROBE CT6844A — • Frequency bandwidth DC to 500 kHz; • Rated current 500 A AC/DC; • Automatic phase correction function
• AC/DC CURRENT PROBE CT6845A — • Frequency bandwidth DC to 200 kHz; • Rated current 500 A AC/DC; • Automatic Phase Correction function
• AC/DC CURRENT SENSOR CT6875A — • DC to 2 MHz; • Rated 500 A AC/DC
• AC/DC CURRENT SENSOR CT6904A, CT6904A-1 — • DC to 4 MHz (CT6904A), DC to 2 MHz (CT6904A-1); • Rated current 500 A AC/DC
• AC/DC CURRENT PROBE CT6846A — • Frequency bandwidth DC to 100 kHz; • Rated current 1000 A AC/DC; • Automatic phase correction function
• AC/DC CURRENT SENSOR CT6876A — • DC to 1.5 MHz; • Rated 1000 A AC/DC

Confirm compatibility and the final configuration with RCC Electronics before ordering.
