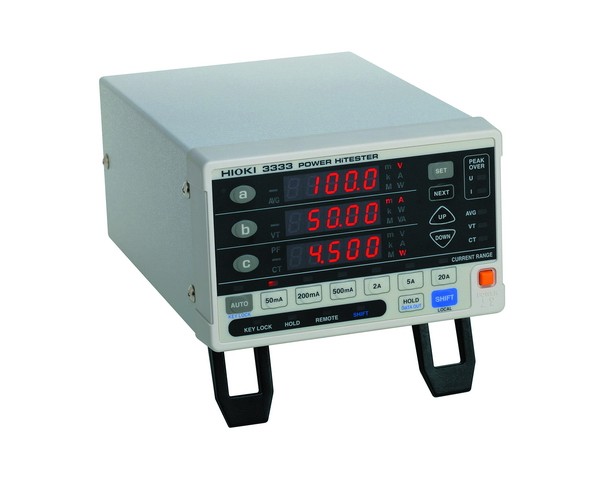

3333 - HIOKI Bench Type Power Analyzer - Production Testing

Suitable for Integration into Production Line Testing

High accuracy (0.1% rdg. ± 0.1% f.s. ) Maximum cost performance

Basic specifications

Measurement lines	Single-phase/two-wire
Measurement items	Voltage, Current, Active power, Apparent power, Power factor
Measurement ranges	Voltage: 200.0 V (300.0 Vmax), Current: 50.00 mA to 20.00 A (30.00 Amax), 6 ranges Power: 10.000 W to 4.000 kW, 6 ranges
Basic accuracy	± 0.1 % rdg. ± 0.1 % f.s. (at 45 to 66 Hz)
Frequency characteristics	45 Hz to 5 kHz
Other functions	Scaling function (PT/CT), Displays a simple average function, RS-232C interface (Model 3333-01 also includes GP-IB interface)
Sampling rate	5 times/second
Power supply	100 to 240 V AC, 50/60 Hz, 20 VA max
Dimensions, mass	160 W × 100 H × 227 D mm, 1.9 kg
Accessories	Power cord (1)
