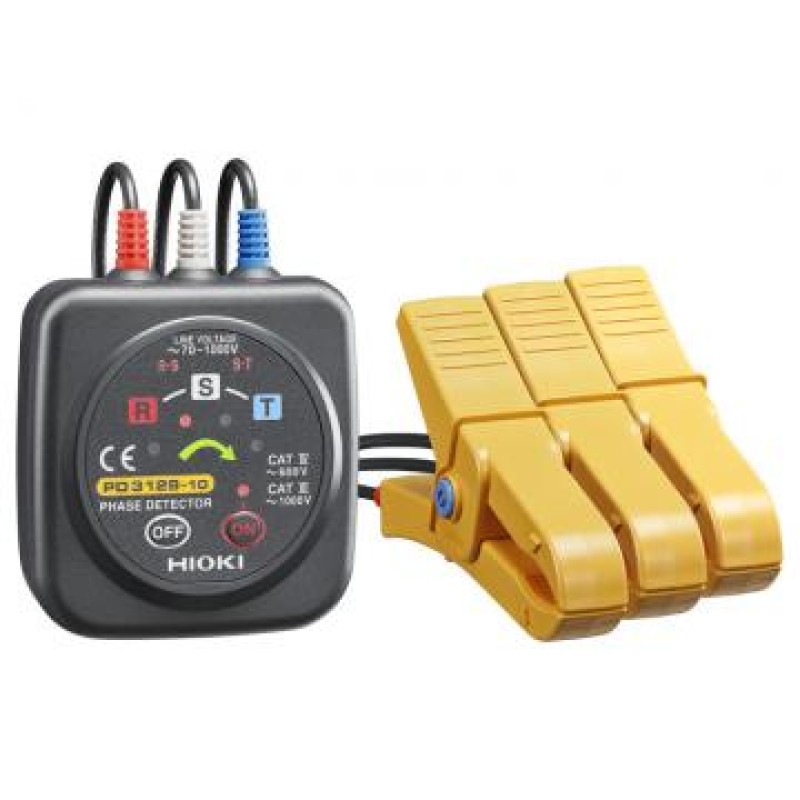

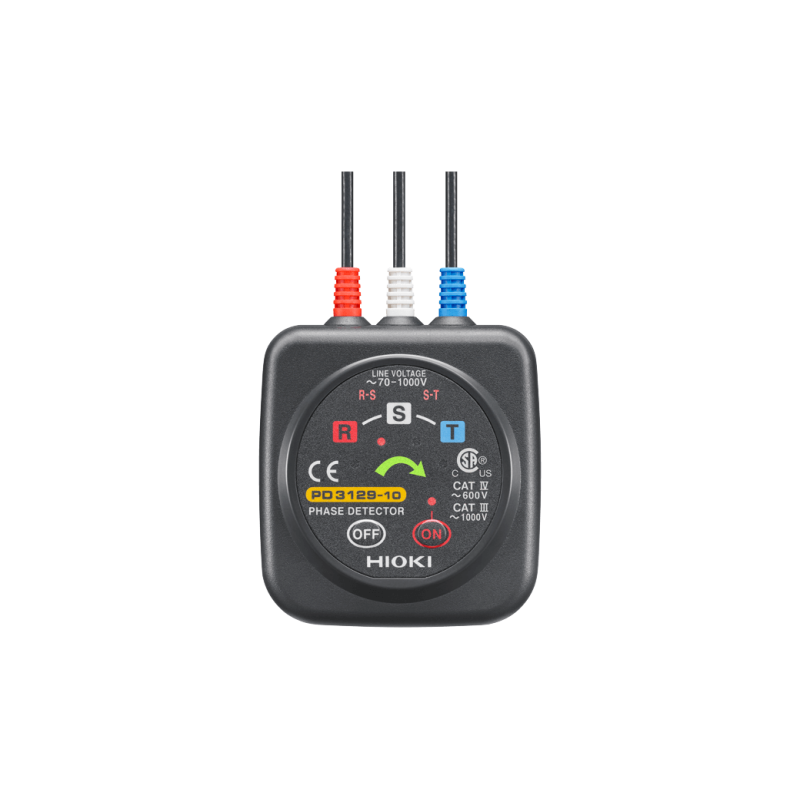

PD3129-10 - HIOKI Phase Detector
Product Code: PD3129-10
Availability: In Stock
*** Click here to view manufacturer specifications ***
Video
|
All products ship from Toronto, Canada by courier. Shipping is usually 1-10 days depending on your location in Canada. Shipping is free of charge. Orders received before 2:00pm (Mon-Fri) will be shipped on the same day (provided item is available in stock). You can pay with all major credit cards. On our side, we use PayPal to process all credit card transactions. But on your side, it will be like any regular purchase. You do not need to create a PayPal account. From the shopping cart, simply select "PayPal / Credit Card", then select "Pay with a credit or Visa debit card". Customer satisfaction guaranteed, or your money back. RCC Electronics is proudly Canadian. We have been selling the best test equipment since 1978. |
PHASE DETECTOR PD3129-10
Phase Detector with Easy-to-Read Arrow and Non-Metallic Contact Clips for 70V to 1000V Lines
Hioki’s non-contact voltage detection and measurement technology places efficiency and safety as priority considerations with the goal of protecting customers that need to conduct on-site electrical work as part of renovations and expansions of manufacturing plants and buildings. Model PD3129-10 is a non-contact phase detector that detects the phase of electrical current flow within insulated wires without using metallic contact voltage clips.The green arrow indicates normal phase, which can be useful for visual reports that document the proper completion of electrical work.
• Simply clip clamps onto wire insulation
• Green LED arrow clearly shows phase direction, perfect for visual reports
• CAT III 1000V
• Rotating LED indicator shows the phase sequence for a 3-phase power supply at a glance
• Intermittent beeps signal positive phase; continuous tone signals reverse phase
• Magnetic base allows the instrument to be secured on a distribution panel
■ Basic specifications
| Functions | Phase detection (positive and negative) |
|---|---|
| Voltage detection method | Static induction |
| Voltage range | 70 to 1000 V AC (50/60 Hz) (sine wave, continuous input) |
| Frequency range | 45 Hz to 66 Hz |
| Object to be connected | 7 mm (0.28 in) to 40 mm (1.57 in) of insulated wiring |
| Display |
Phase detection : Positive ; 4 LEDs lit in clockwise order and the buzzer sounds intermittently, green arrow lights up Negative ; 4 LEDs lit in counterclockwise order and the buzzer sounds continuously |
| Battery check function | Power ON lamp: lights up (Power ON), blinks (Battery LOW) |
| Auto power off | Auto shut off if no activity is detected after power is turned ON for 15 minutes |
| Power supply | R6P (AA) manganese battery ×2, Continuous use: 70 hr |
| Dimensions and mass | 70 mm (2.76 in)W × 75 mm (2.95 in)H × 30 mm (1.18 in)D, 240 g (8.5 oz), Cord length : 0.7 m (2.30 ft) |
| Accessories | Carrying case ×1, Strap ×1, Spiral tube ×1, Instruction manual ×1, R6P (AA) manganese battery ×2 |
