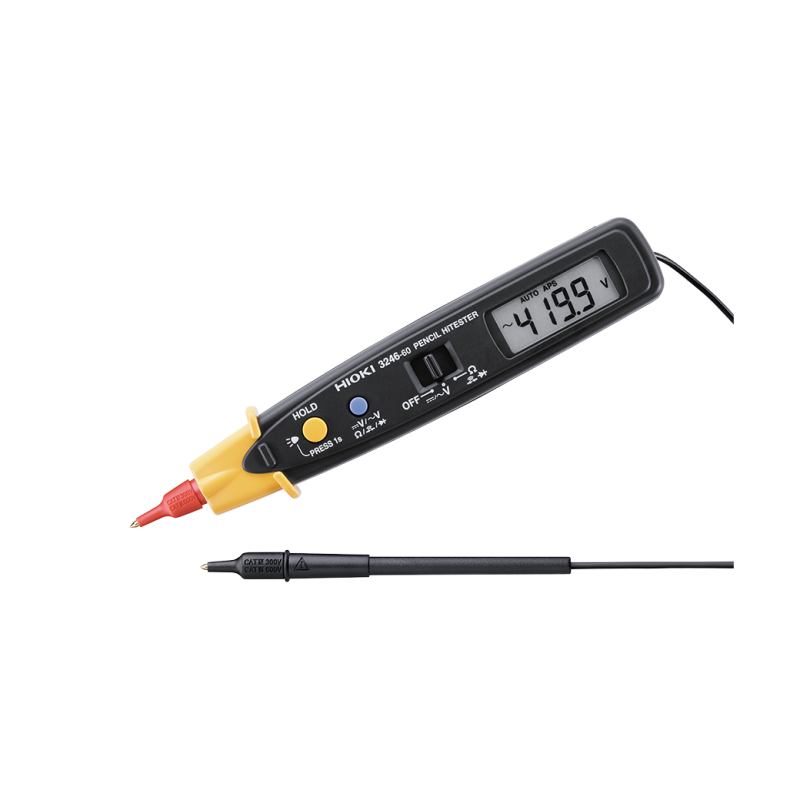

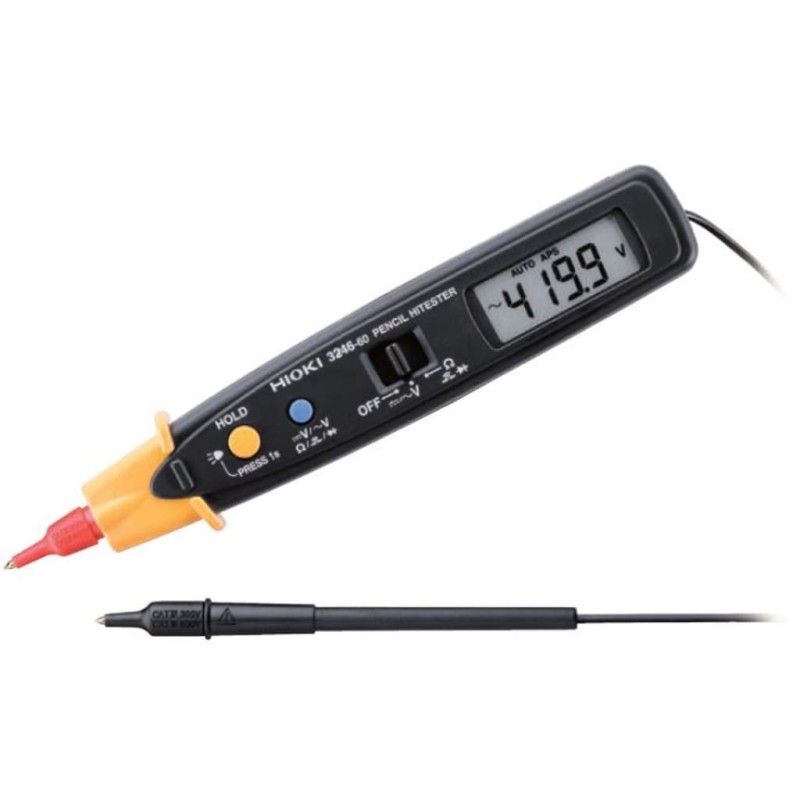

3246-60 - HIOKI Pencil Type DMM

3246-60 - HIOKI Pencil Type DMM
Click Image for Gallery
3246-60 - HIOKI Pencil Type DMM 3246-60 - HIOKI Pencil Type DMM
Brand: HIOKI
Product Code: 3246-60
Availability: In Stock
Specifications: Link to Data Sheet
CAD 106.40
Qty: Add to Cart
Add to Enquiry List Add to Compare

3246-60 - HIOKI Pencil Type DMM supports field electrical measurement and troubleshooting.

Pencil-type DMM with Penlight
  • Full-auto ranging, 4199 count display
  • Penlight brightly illuminates test points
  • Overload protection to 600 V (ohm and continuity functions)
Basic specifications
DC Voltage range 420.0 mV to 600V, 5 ranges, Best accuracy: ± 1.3 % rdg. ± 4 dgt.
AC Voltage range 4.200 V to 600V, 4 ranges, Accuracy: ± 2.3 % rdg. ± 8 dgt. , Average rectifier effective value
Frequency characteristics at AC Voltage 50 to 500 Hz
Resistance range 420.0 ohm to 42.00 M-ohm, 6 ranges, Best accuracy: ± 2.0 % rdg. ± 4 dgt.
Continuity Possible 50 ohm ± 30 ohm
Diode check Possible (3.4 V open terminal voltage)
Auto power save Possible (Cancel possible)
Range switching Auto or Manual
Display Digital/LCD, maximum 4199 dgt.
Sampling rate 2.5 times/sec
Safety considerations Safety: EN61010, overvoltage category III 600V, EMC: EN61326
Power supply CR2032 × 1 battery, (Continuous use 150 hours)
Dimensions, mass 30 mm(1.18in)W × 182 mm(7.17in)H × 26.5 mm(1.05in)D, 80g(2.8 oz)



Need help selecting the right HIOKI configuration? Contact RCC Electronics for Canadian application support and a quotation.
