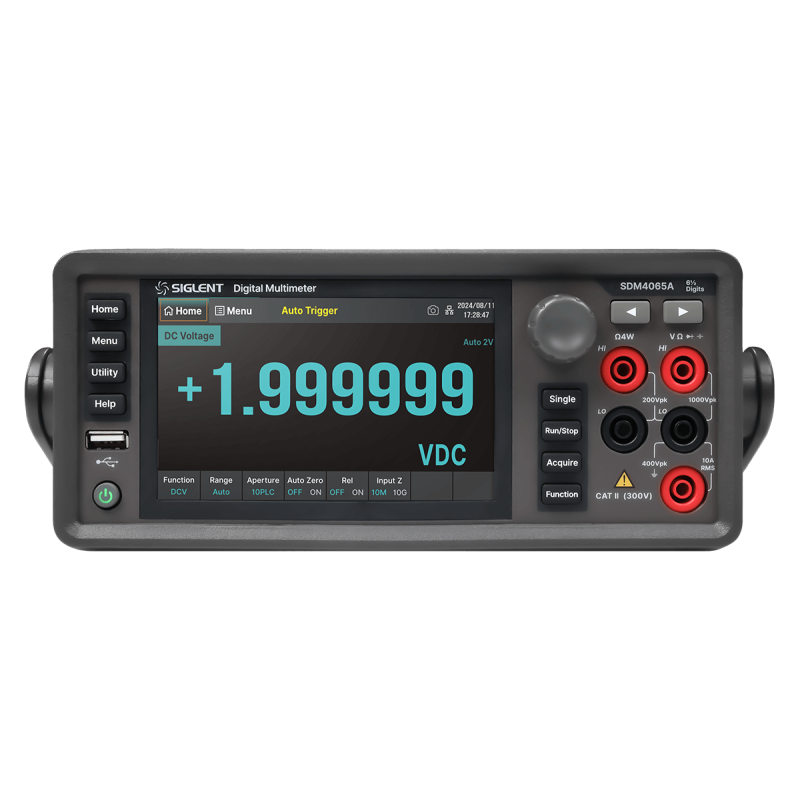

SDM4065A - Siglent SDM4000 Series: 6.5Digit Benchtop Digital Multimeter

SDM4065A - Siglent SDM4000 Series: 6.5Digit Benchtop Digital Multimeter
Click Image for Gallery
SDM4065A - Siglent SDM4000 Series: 6.5Digit Benchtop Digital Multimeter SDM4065A - Siglent SDM4000 Series: 6.5Digit Benchtop Digital Multimeter
Brand: SIGLENT
Product Code: SDM4065A
Availability: In Stock
CAD 1,308.15
Qty: Add to Cart
Add to Enquiry List Add to Compare

6½-digit; 50000rdgs/s sampling speed; 5 inch (800*480) true color TFT-LCD screen display; True RMS AC voltage and AC current measurements

DMM | Exact Specifications
Reading Resolution 6½ digits
Display Counts 2,200,000
Maximum Reading Rate 50,000 rdgs/s
DC Voltage Range 200 mV–1000 V
AC Voltage Range 200 mV–750 V
DC Current Range 200 µA–10 A
AC Current Range 200 µA–10 A
Resistance Range 200 Ω–100 MΩ
Capacitance Range 2 nF–100 mF
Frequency Range 3 Hz–1 MHz
Scanner Card No
Scanner Channels Not Included
Data Logging Yes
Digitizer Function Yes
Display 5-inch 800×480 touchscreen
Interfaces USB Host / USB Device / LAN; GPIB optional
Form Factor Benchtop
DMM | Filter Facets
Instrument Type Benchtop Digital Multimeter
Digit Class 6½ digits
Reading Rate Class >20k rdgs/s
Counts Class >500k
Scanner Card No
Data Logging Yes
Digitizer Function Yes
Display Type Touchscreen
Form Factor Benchtop
