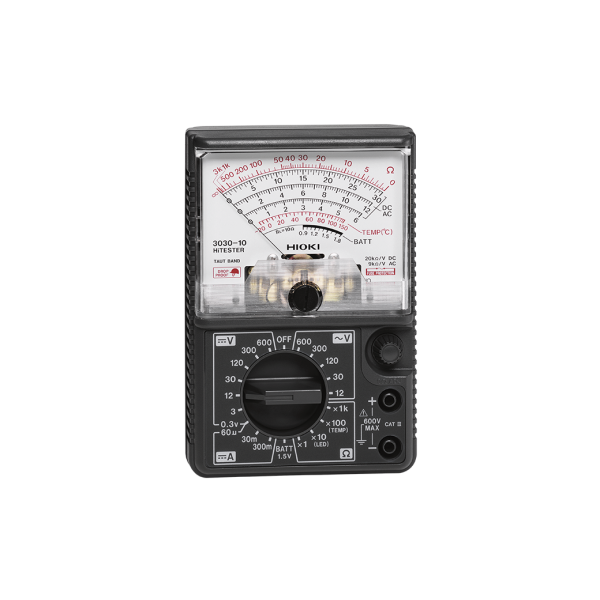

Multimeter 3030-10 - HIOKI Analog Multimeter

3030-10 - HIOKI Analog Multimeter

3030-10 - HIOKI Analog Multimeter
3030-10 - HIOKI Analog Multimeter
Brand: HIOKI
Product Code: 3030-10
Availability: 2
*** Click here to view manufacturer specifications ***
Price: CAD 172.20
Qty:


All products ship from Toronto, Canada by courier. Shipping is usually 1-10 days depending on your location in Canada. Shipping is free of charge. Orders received before 2:00pm (Mon-Fri) will be shipped on the same day (provided item is available in stock).

You can pay with all major credit cards. On our side, we use PayPal to process all credit card transactions. But on your side, it will be like any regular purchase. You do not need to create a PayPal account. From the shopping cart, simply select "PayPal / Credit Card", then select "Pay with a credit or Visa debit card".

Customer satisfaction guaranteed, or your money back. RCC Electronics is proudly Canadian. We have been selling the best test equipment since 1978.







Basic Analog Multimeter with Standard Features
  • Drop proof design withstands dropping onto a concrete floor from a height of 1 meter
  • LED check, Battery check function
  • Temperature measurement support (with optional probes)
  • Protected against transient voltages up to 250 V AC, preventing electric shock accidents before they can happen
Basic specifications
DC Voltage range 0.3 V (16.7 k-ohm/V), 3/12/30/120/300/600 V (20 k-ohm/V)
Accuracy: ±2.5 % f.s. Max. rated voltage: 600 V
AC Voltage range 12 V (9 k-ohm/V) Accuracy: ±4 % f.s.
30/120/300/600 V (9 k-ohm/V) Accuracy: ±2.5 % f.s.
Average rectifier effective value Max. rated voltage: 600 V
DC Current range 60 µA/30 m/300 mA (300 mV internal voltage drop)
Accuracy: ±3 % f.s.
Resistance range 0 to 3 k-ohm (center scale 30 ohm), R × 1, R × 10, R × 100, R × 1 k
Accuracy: ±3 % of scale length
Battery check 0.9 to 1.8 V, load resistance 10 ohm
Accuracy: ±6 % f.s.
Temperature scale -20 to 150°C (Thermister Temperature Probe 9021-01 is necessary, sold separately), Accuracy: ±3 % of scale length
Power consumption For resistance measurement range, R6P (AA) × 2 batteries
Dimensions, mass 95 mm(3.74 in)W × 141 mm(5.55 in)H × 39 mm(1.54 in)D, 280 g (9.9 oz)
Supplied accessories TEST LEAD 9207-30 × 1, CARRYING CASE 9390 × 1, Spare fuse × 1
