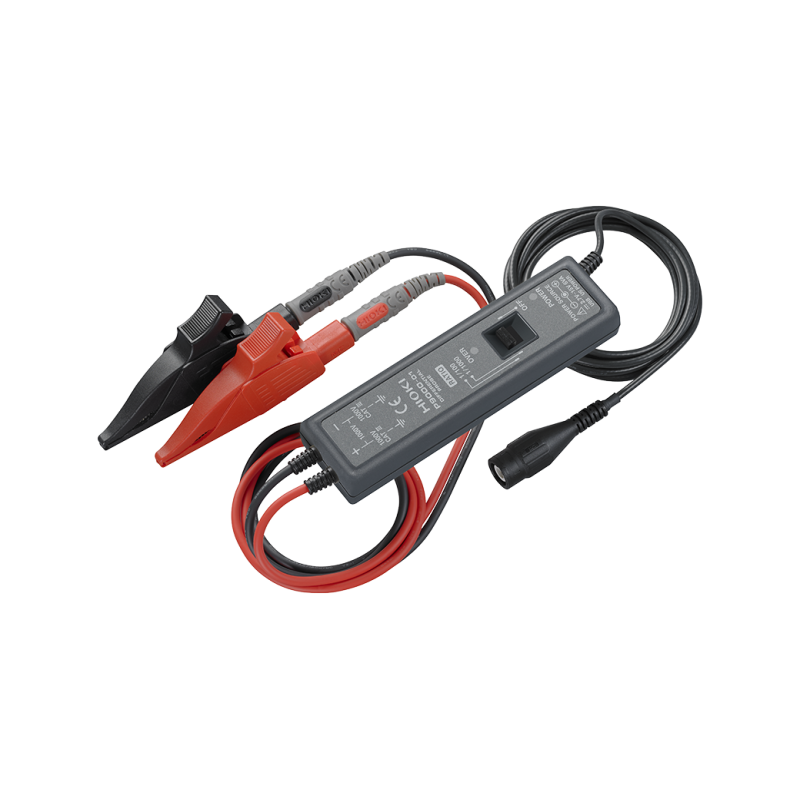

P9000-01 - HIOKI High Voltage Differential Probe (Wave Mode Only)
Price: CAD 693.00
P9000-01 HIGH VOLTAGE DIFFERENTIAL PROBE
Measurement functions |
[P9000-01] WAVE mode only: waveform monitor output Frequency characteristics: DC to 100 kHz, -3 dB [P9000-02] (selectable) WAVE mode: waveform monitor output, AC-RMS mode: RMS value of the output AC waveform Wave mode frequency characteristics: DC to 100 kHz, -3 dB AC-RMS mode frequency characteristics: 30 Hz to 10 kHz; response time: 300 ms (rising) or 500 ms (falling) |
---|---|
Division ratio | 1000:1 or 100:1 (selectable) |
DC amplitude accuracy | ±0.5% f.s. (f.s. = 1.0 V; voltage division ratio: 1000:1) (f.s. = 3.5 V; voltage division ratio: 100:1) |
RMS amplitude accuracy |
±1% f.s. (30 Hz to 1 kHz non-inclusive, sine wave), ±3% f.s. (1 kHz to 10 kHz, sine wave) |
Input resistance, capacity | Between H and L: 10.5 MΩ, 5 pF or less (at 100 kHz) |
Max. allowable input | 1000 V AC/DC |
Max. rated voltage to earth | 1000 V AC/DC (CAT III) |
Operating temperature range | -40 ˚C (-40 ˚F) to 80 ˚C (176 ˚F) |
Power supply |
(1) AC Adapter Z1008 (100 to 240 V AC, 50/60 Hz), 6 VA (including AC adapter) or 0.9 VA (probe only) (2) USB bus power (5 V DC, USB Micro-B receptacle), 0.8 VA (3) External power (2.7 V to 15 V DC), 1 VA |
Dimensions and mass | 128 mm (5.04 in)W × 36 mm (1.42 in)H × 22 mm (0.87 in)D, 170 g (6.0 oz) |
Cord length | Input side: 70 cm (2.30 ft) ; output side: 1.5 m (4.92 ft) |
Accessories | Instruction manual ×1, alligator clips ×2, carrying case ×1 |
