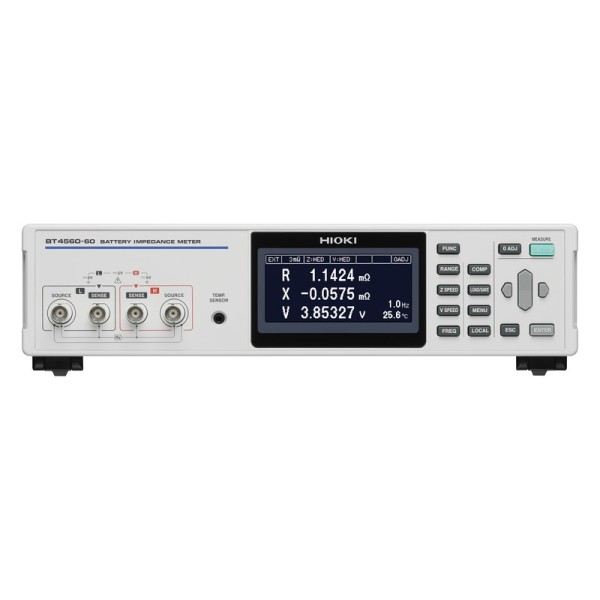

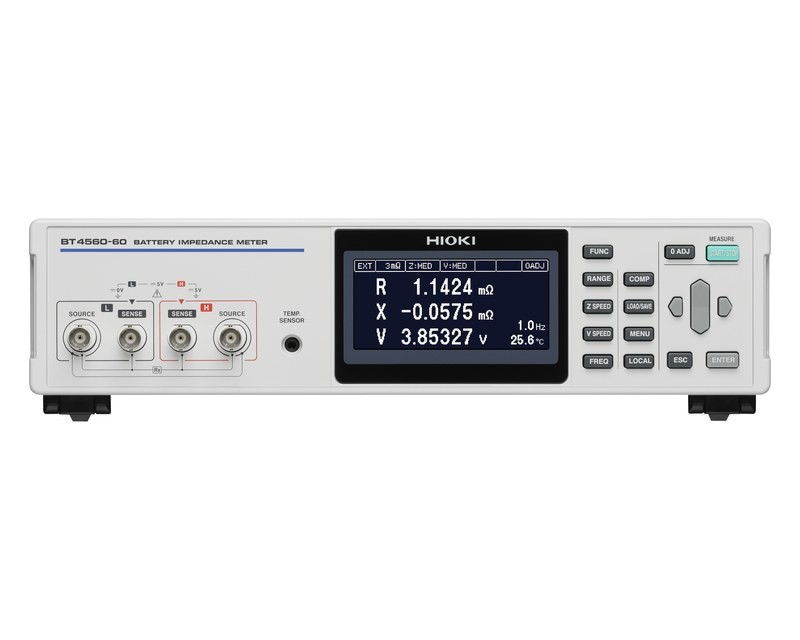

HIOKI BT4560-60 Battery Impedance Meter

The BT4560-60 provides electrochemical impedance spectroscopy (EIS) measurements for high-capacity lithium-ion battery cells used in electric-vehicle and energy-storage applications. Its 0.01 Hz to 10 kHz frequency range supports cell research, design validation and production evaluation.

Key Capabilities

• Measures impedance, voltage and temperature
• Measures resistance, reactance, impedance and phase angle
• Three impedance ranges with 0.1 µΩ maximum resolution
• Supports production-line control through LAN, RS-232C, USB and EXT. I/O
• Expands to multi-channel battery evaluation with the HIOKI SW1001 or SW1002 switch mainframe

Typical Applications

• EV and ESS battery-cell research and development
• Cell design evaluation and electrochemical analysis
• Quality control and automated production testing
• Multi-channel battery comparison and screening

Contact RCC Electronics for Canadian availability, probe selection and system-configuration guidance.

Technical Specifications

Official HIOKI BT4560-60 product information

Standard Accessories

• Power cord × 1
• Instruction manual × 1
• Zero-adjustment board × 1
• USB cable, A-B type × 1

Measurement probes are selected separately for the battery and fixture configuration.

Optional Accessories

• L2000 — 4-terminal probe; the 3 mΩ range cannot be used with this probe on the BT4560-60
• L2002 — clip-type probe
• L2003 — pin-type probe
• Z2005 — temperature sensor
• 9637 — RS-232C cable
• 9642 — LAN cable with straight-to-cross conversion adapter
• SW1001 — switch mainframe for multi-channel systems
• SW1002 — high-capacity switch mainframe for multi-channel systems

Optional items are not included unless stated on the RCCE quotation. Confirm the final probe, fixture and switching configuration before ordering.
