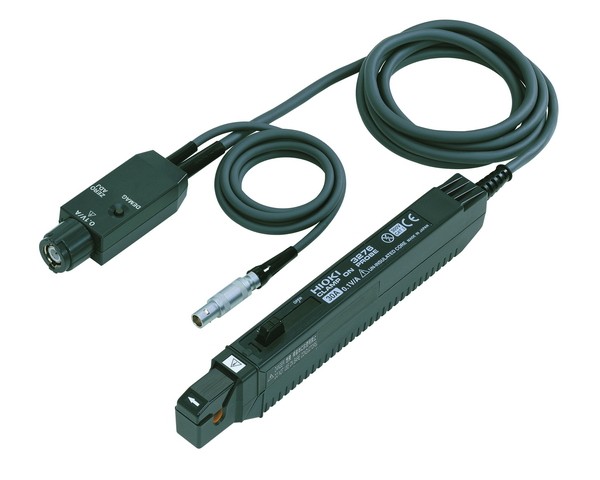

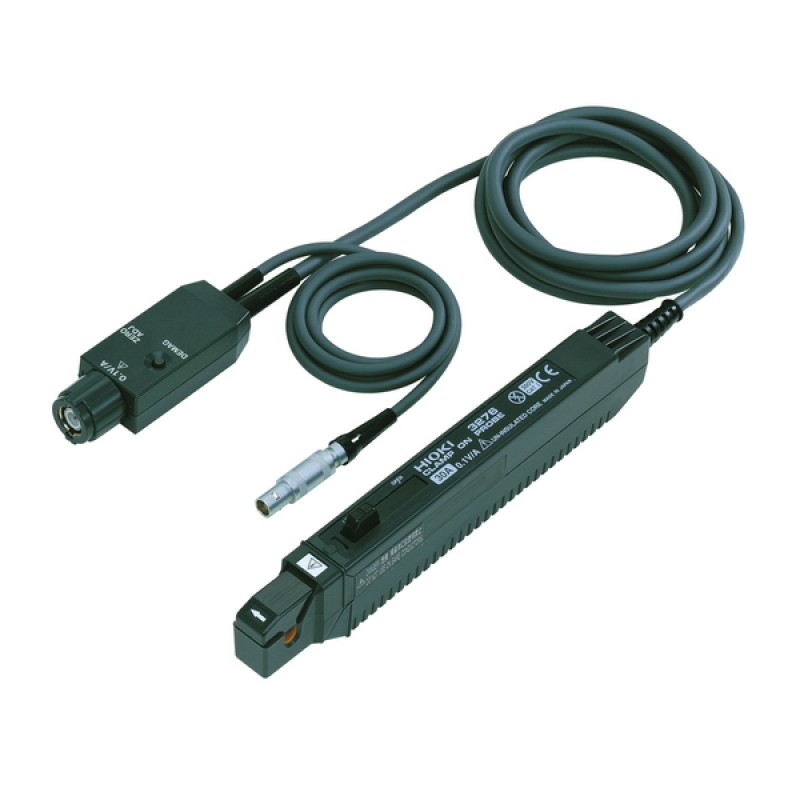

3276 - HIOKI 30A DC - 100MHz Clampon CT

Wide-band current probe allows direct input to oscilloscope

Wide band: DC to 100 MHz (-3 dB) High S/N characteristic enables measuring ultra low mA-range current waveforms Connects directly to oscilloscope BNC input terminal Connects directly to the MEMORY HiCORDER to provide waveform monitoring An optional power supply is available for use with oscilloscopes that do not provide probe power

Note: Connect and power up Clamp-on sensor to use in combination with the oscilloscope, or the MEMORY HiCORDER

Basic specifications (accuracy guaranteed for 1 year)

Frequency band width DC to 100 MHz (-3 dB) Rise time =<3.5 ns Noise level 2.5 mA rms max. (band width limited to 20 MHz) Continuous allowable input 30 A rms (requires derating at frequency) Max. allowable peak input 50 A peak (non continuous) Amplitude accuracy ±1.0 % rdg. ±1 mV f.s. (DC, 45 to 66 Hz, 0 to 30 A rms) ±2 % rdg. (DC, 45 to 66 Hz, 30 A to 50 A peak) Output rate 0.1 V/A (use with a device having a 1 M-ohm input resistance or higher) Max. rated voltage to earth 300 V CAT I (insulated wire) Core jaw dia. φ 5 mm(0.20 in) Power supply ±12 V ±0.5 V, 5.3 VA Dimensions, mass 175 mm (6.89 in)W × 18 mm (0.71 in)H × 40 mm (1.57 in)D, 240 g (8.5 oz), Sensor cable BNC terminal: 1.5 m (4.92 ft), Power cable: 1 m (3.28 ft), Power plug: FFA.0S.304.CLAC42Z / LEMO inc. Accessories Hard case × 1

POWER SUPPLY 3272 (Basic specifications)

Compatible models Model 3273-50, 3274, 3275 or 3276 × 1 unit. (One sensor only) Note: May be used with up to 2 units of Model 3273 (not -50 type), and up to 2 units of Models 3273-50, 3274, 3275 or 3276 on condition that the measurement current is sufficiently low. Please check with your HIOKI distributor. Power supply 100 V or 120/ 220/ 240 V AC (specify when ordering), 50/60 Hz 20 VA max. Dimensions, mass 73 mm (2.87 in)W × 110 mm (4.33 in)H × 186 mm (7.32 in)D, 1.1 kg (38.8 oz) Supplied accessories Power cord × 1, Spare fuse × 1

POWER SUPPLY 3269 (Basic specifications)

Compatible models Model 3273-50, 3274, 3275 or 3276 × 4 units Note: Also up to 4 units for the discontinued Model 3273 Power supply 100 V to 240 V AC (free), 50/60 Hz 170 VA max. Dimensions, mass 80 mm (3.15 in)W × 119 mm (4.69 in)H × 200 mm (7.87 in)D, 1.1 kg (38.8 oz) Supplied accessories Power cord × 1

Continuous allowable input (requires derating at frequency)

Frequency [Hz]
