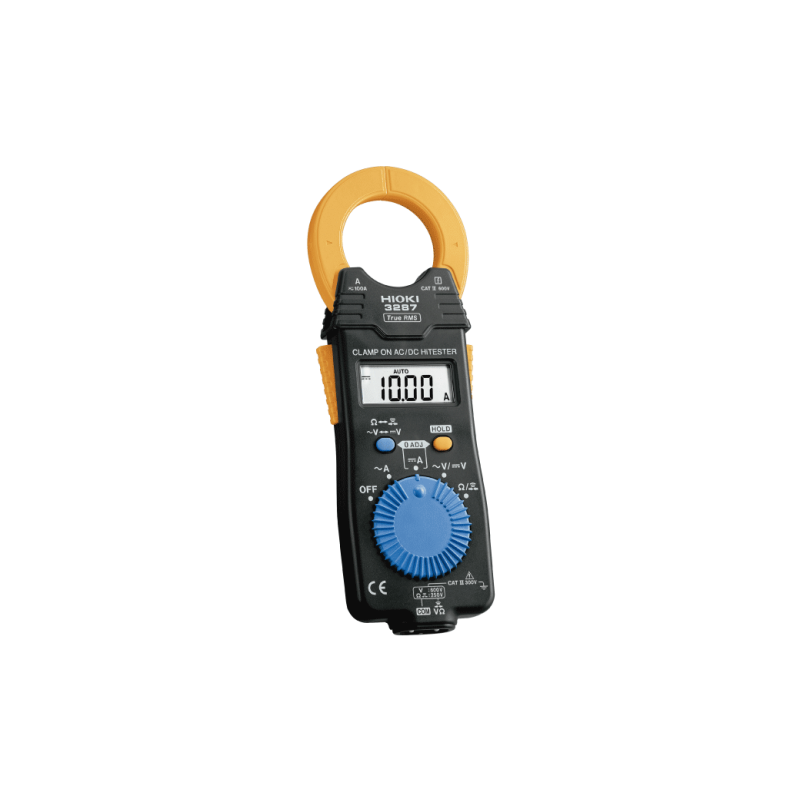

3287 - HIOKI 100A AC/DC TRMS Clampon Tester

Name: 3287 - HIOKI 100A AC/DC TRMS Clampon Tester
Brand: HIOKI
SKU: 3287
Price: 511.00 CAD
Availability: InStock

Click Image for Gallery

Brand: HIOKI
Product Code: 3287
Availability: In Stock
Specifications: Link to Data Sheet

CAD 511.00

Qty: Add to Cart

Add to Enquiry List Add to Compare

Description

Official HIOKI product information for 3287 - HIOKI 100A AC/DC TRMS Clampon Tester.

Contact RCC Electronics for Canadian availability, configuration guidance and a formal quotation.

DC Current range	10.00/ 100.0 A, Basic accuracy: ±1.5 % rdg. ±5 dgt.
AC Current range	10.00/ 100.0 A (10 Hz to 1 kHz, True RMS) ; Basic accuracy: ±1.5 % rdg. ±5 dgt.
DC Voltage range	419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.3 % rdg. ±4 dgt.
AC Voltage range	4.199 V to 600 V, 4 ranges (30 to 500 Hz, True RMS); Basic accuracy: ±2.3 % rdg. ±8 dgt.
Resistance range	419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt
Crest factor	2.5 or less (150 A, 1000 V max.)
Other functions	Continuity: (50 Ω ±40 Ω) or less buzzer sounds, Data hold, Auto power save, Auto zero (DC A)
Display	LCD, max. 4199 dgt., Display refresh rate: 2.5 times/s
Power supply	Coin type lithium battery (CR2032) ×1, Continuous use 25 hours
Core jaw dia.	φ 35 mm (1.38 in)
Dimensions and mass	57 mm (2.24 in) W × 180 mm (7.09 in) H × 16 mm (0.63 in) D, 170 g (6.0 oz)

Tags: HIOKI, 3287, Current Sensors, electrical test equipment
