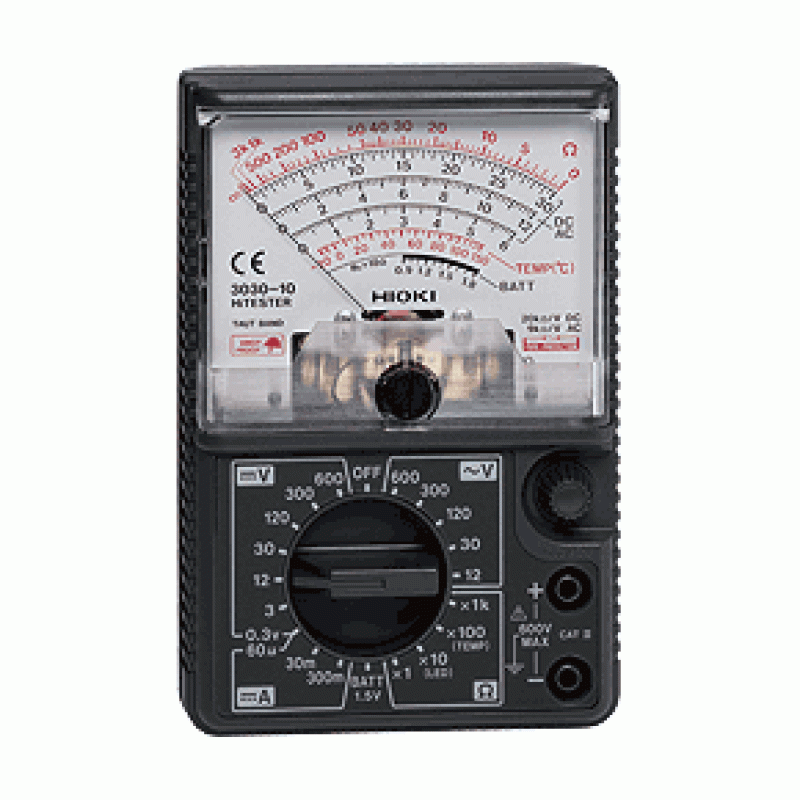

3030-10 - HIOKI Analog Multimeter





Basic Analog Multimeter with Standard Features

Drop proof design withstands dropping onto a concrete floor from a height of 1 meter LED check, Battery check function Temperature measurement support (with optional probes) Protected against transient voltages up to 250 V AC, preventing electric shock accidents before they can happen

Basic specifications

DC Voltage range	0.3 V (16.7 k-ohm/V), 3/12/30/120/300/600 V (20 k-ohm/V) Accuracy: ±2.5 % f.s. Max. rated voltage: 600 V
AC Voltage range	12 V (9 k-ohm/V) Accuracy: ±4 % f.s. 30/120/300/600 V (9 k-ohm/V) Accuracy: ±2.5 % f.s. Average rectifier effective value Max. rated voltage: 600 V
DC Current range	60 µA/30 m/300 mA (300 mV internal voltage drop) Accuracy: ±3 % f.s.
Resistance range	0 to 3 k-ohm (center scale 30 ohm), R × 1, R × 10, R × 100, R × 1 k Accuracy: ±3 % of scale length
Battery check	0.9 to 1.8 V, load resistance 10 ohm Accuracy: ±6 % f.s.
Temperature scale	-20 to 150°C (Thermister Temperature Probe 9021-01 is necessary, sold separately), Accuracy: ±3 % of scale length
Power consumption	For resistance measurement range, R6P (AA) × 2 batteries
Dimensions, mass	95 mm(3.74 in)W × 141 mm(5.55 in)H × 39 mm(1.54 in)D, 280 g (9.9 oz)
Supplied accessories	TEST LEAD 9207-30 × 1, CARRYING CASE 9390 × 1, Spare fuse × 1
