ST4030A - HIOKI IMPULSE WINDING TESTER

New Pre-Order ST4030A - HIOKI IMPULSE WINDING TESTER
Click Image for Gallery

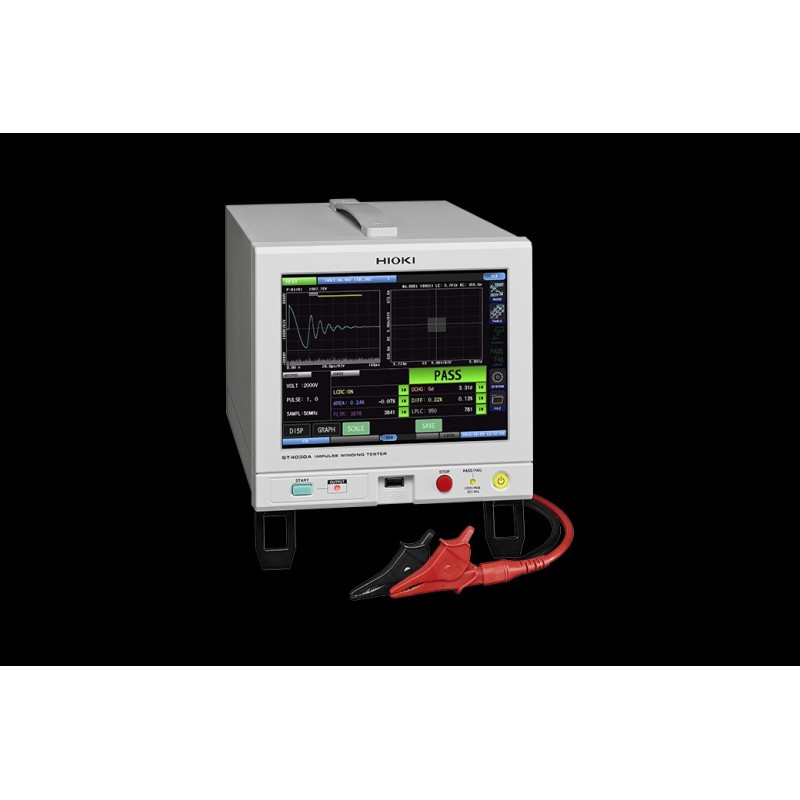

ST4030A - HIOKI IMPULSE WINDING TESTER
Brand: HIOKI
Product Code: ST4030A
Availability: Pre-order item. Add item to cart and ETA will be 2-4 weeks.
Specifications: Link to Data Sheet
Video: Link to Video
CAD 30,545.20
Qty: Add to Cart
Add to Enquiry List Add to Compare

The ST4030A is an impulse winding tester, or surge tester, that combines the functions of both a resistance meter and insulation-withstand testing required for electric motor winding manufacturers to improve quality.  Meet the needs of more reliable motor windings in light of the increasing use of electric vehicles and self-driving technology.


How to Use the Hioki Impulse Winding Tester ST4030A

The ST4030A detects the existence of layer shorts between coil windings, defects that are found in motor inductors. By using a master waveform taken from a reference coil after applying an impulse voltage, and comparing it to the measured waveform across a specific interval of the coil under test, the resulting area difference can help determine pass or fail easily and accurately. In addition, quantification of response waveforms, a new method developed by Hioki, lets you detect even single-turn faults by using a pass/fail distribution plot. Watch this video to learn how to easily make settings and begin testing right away.
