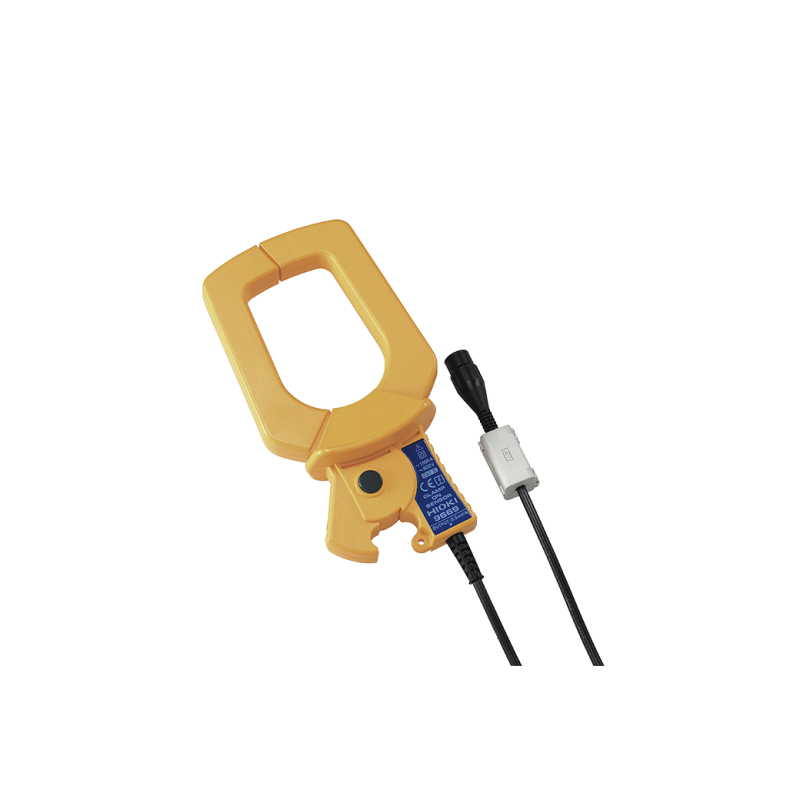

9669 - HIOKI 1000A AC Clampon CT
Price: CAD 721.00
| Clamp-on Sensors for the POWER QUALITY ANALYZER 3196 and CLAMP ON POWER HiTESTER 3169 |
| For input up to AC 1000A, select our Model 9669, and up to AC 1000A, select Model 9667. Both sensors are designed with a safety barrier to protect the user from being in direct contact with live conductors and completely meet all CE marking requirements. |
| Basic specifications |
| Rated input current | 1000 A AC |
| Rated output current | 0.5 V AC |
| Accuracy (at 45 to 66 Hz) |
Amplitude: ± 1.0 % rdg. ±0.01 % f.s. , Full scale (f.s.) is the 3196 range value, Phase: ± 1° or less |
| Frequency characteristics | 66 Hz to 5 kHz (±1 % or less from accuracy) |
| Max. allowable input | continuous 1000 A rms (45 to 66 Hz) |
| Max. circuit voltage | 600 V AC rms (insulated wire) |
| Core jaw dia. | Ø55 mm(2.17 in), 80 mm (3.15 in) × 20 mm (0.79 in) busbar |
| Dimensions, mass | 99.5 mm(3.92 in)W × 188 mm(7.40 in)H × 42 mm(1.65 in)D, 590 g (20.8 oz), cord length: 3 m(9.84 ft) |
