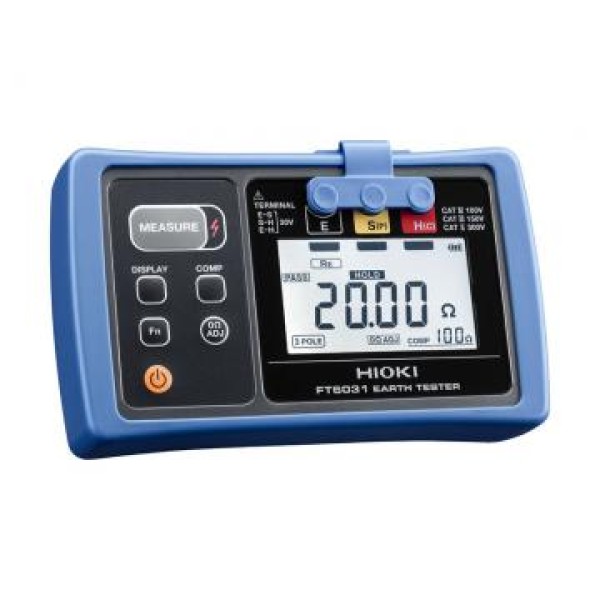

FT6031-90 - HIOKI Digital Earth Tester - 3 Pole Design w/ Wireless Adapter

FT6031-90 - HIOKI Digital Earth Tester - 3 Pole Design w/ Wireless Adapter

HIOKI FT6031-50 IP67 earth tester measures 0 to 2000 Ω by two- or three-pole method, with 25 V rms earth potential tolerance and fast cable winders.

Key Capabilities

• Easily transfer measurement data to your smartphone or tablet by using our free app GENNECT Cross or to an Excel® file. (Wireless Adapter Z3210 is necessary)
• Excellent noise resistance
• IP67 protected – top of the industry
• Test all ground types from Class A to Class D with a single meter
• Wide 0Ω to 2000Ω measurement range
• Minimize cabling time with innovative earthing rods and cable winder

Contact RCC Electronics for Canadian availability, configuration guidance and a formal quotation.

Technical Specifications

Official HIOKI product information

Standard Accessories

• Auxiliary Earthing Rod L9840 (2 piece set) ×1, Measurement Cable L9841 (black 4 m) ×1, Measurement Cable L9842-11 (yellow 10 m, equipped with winder) ×1, Measurement Cable L9842-22 (red 20 m, equipped with winder) ×1, Carrying Case C0106 ×1, Protector ×1, LR6 Alkaline battery ×4, Instruction manual ×1

Optional accessories below are not included unless stated on the RCCE quotation.

Optional Accessories

• PROTECTOR Z5070
• CARRYING CASE C0106
• AUXILIARY EARTHING ROD L9840
• MEASUREMENT CABLE L9841
• MEASUREMENT CABLE L9842-11
• MEASUREMENT CABLE L9842-22
• TEST LEAD L9787
• MEASUREMENT CABLE L9843-51
• MEASUREMENT CABLE L9843-52
• MEASUREMENT CABLE L9844
• EARTH NETS 9050
• WIRELESS ADAPTER Z3210 — • Increase your work efficiency, by eliminating human errors from manual reporting; • Transfer readings on instruments to easy-to-read graphical reports to prove integrity; • Compliance with wireless regulations in more than 50 countries and regions
• GENNECT CROSS SF4071, SF4072 — • Mobile app for iOS, Android; • Improve efficiency of operations that repeat measurement and recording; • Analyze correlated data during issues and generate quick reports

Confirm compatibility and the final configuration with RCC Electronics before ordering.
