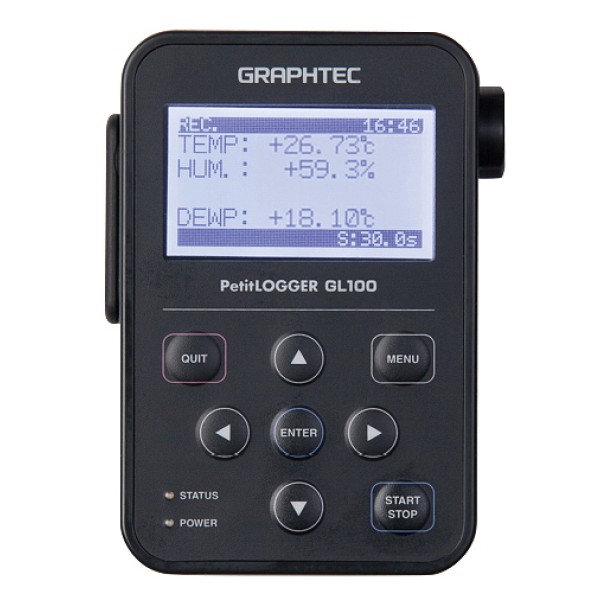

GL100-N-TH - GRAPHTEC Compact Data Logger GRAPHTEC

GL100-N-TH - GRAPHTEC Compact Data Logger GRAPHTEC
Click Image for Gallery
GL100-N-TH - GRAPHTEC Compact Data Logger GRAPHTEC GL100-N-TH - GRAPHTEC Compact Data Logger GRAPHTEC
Brand: GRAPHTEC Instruments
Product Code: GL100-N-TH
Availability: In Stock
Specifications: Link to Data Sheet
CAD 413.00
Qty: Add to Cart
Add to Enquiry List Add to Compare

Compact temperature and humidity recording

The GRAPHTEC GL100-N-TH combines the non-wireless GL100-N compact logger with temperature and humidity sensing for portable environmental monitoring and recorded-data retrieval.

  • Temperaturemeasured by the connected GS-TH sensor
  • Humidity0.0–100.0% RH measuring range
  • microSDexternal recording memory
  • USBPC connection on GL100-N

Measurement and recording

  • Temperature and relative-humidity measurement with calculated dew-point and accumulated-temperature values
  • Selectable sampling intervals from 0.5 seconds to 60 minutes with the GS-TH sensor
  • Built-in memory plus microSD card support
  • USB connection for the non-wireless GL100-N main unit

Application fit

Use this compact configuration for room, storage, process or equipment-environment monitoring where temperature and humidity history are required. Confirm sensor placement, response time and environmental limits for the application.

Power

The GL100 main unit supports two AA alkaline batteries or USB bus power. Battery and external USB power accessories should be selected for the required recording duration.

Technical reference

Specifications were checked against the official GRAPHTEC GL100 series product page and the GS-TH temperature and humidity sensor specifications.
