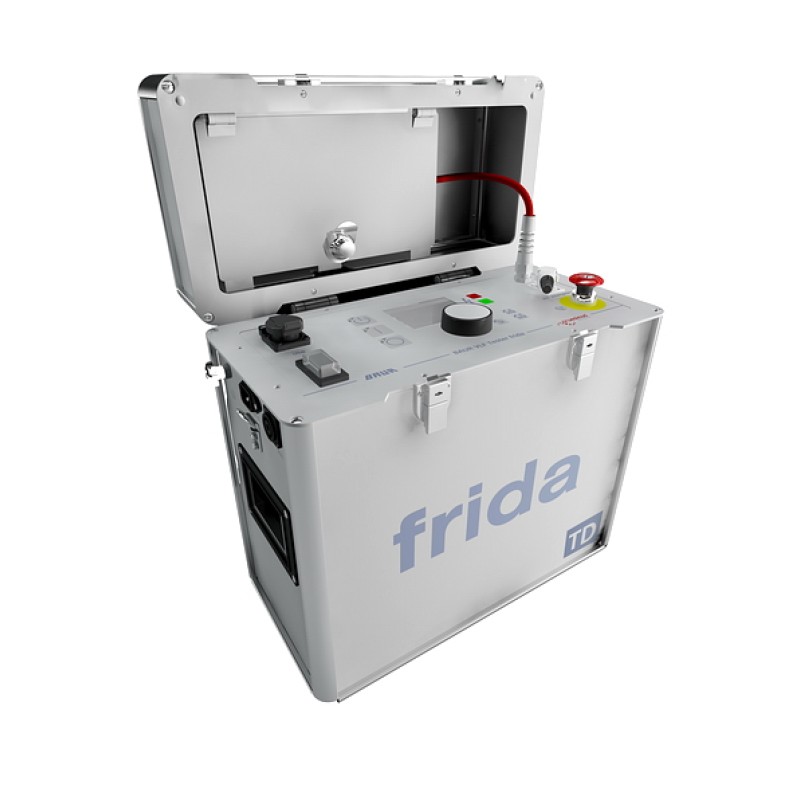

Frida - BAUR VLF testing and diagnostics unit

70 to 80% of cable lines are in a voltage range of up to 20 kV. All these cables can be tested with frida TD easily and quickly. Additionally examination of the aging condition without damage to cable. The intuitive BAUR user interface, the integrated tan delta measurement, compact dimensions and low weight make frida TD the ideal companion for network maintenance personnel and service providers.

• Testing electrical equipment and cables up to 15 kV rated voltage
• Max. test voltage 24 kV_rms
• Cable testing according to: VDE DIN 0276-620/621 (CENELEC HD 620/621), IEEE P 400.2-2004, IEEE 400-2001
• VLF truesinus^® test technology enables exact,
  load-independent sinusoidal generated high voltage
• Cable sheath testing according to IEC 60502/IEC 60229
• Insulation tests on electrical equipment according to IEEE 433
• Diagnosis of electrical equipment and cables up to 20 kV rated voltage (at 2*Uo)
• Highly precise tan delta measurement with an accuracy of 1 x 10^-4
• Automated, individually programmable test sequences
• Intuitive operation through BAUR user interface
• Data transfer via USB interface
• Management of test and measurement data with PC software
• Expandable to the partial discharge diagnosis system in combination with BAUR PD Portable
• Small, compact and light

Cable lines are often replaced only due to their age without knowing their actual condition. Thereby, often intact sections are replaced. This results in considerable investments. On the contrary, the cost for high voltage testing and diagnosis is comparatively low. With frida TD, the condition of cable lines in the local network can be ascertained effectively and exhaustively. This enables a targeted investment and maintenance of medium voltage networks.
