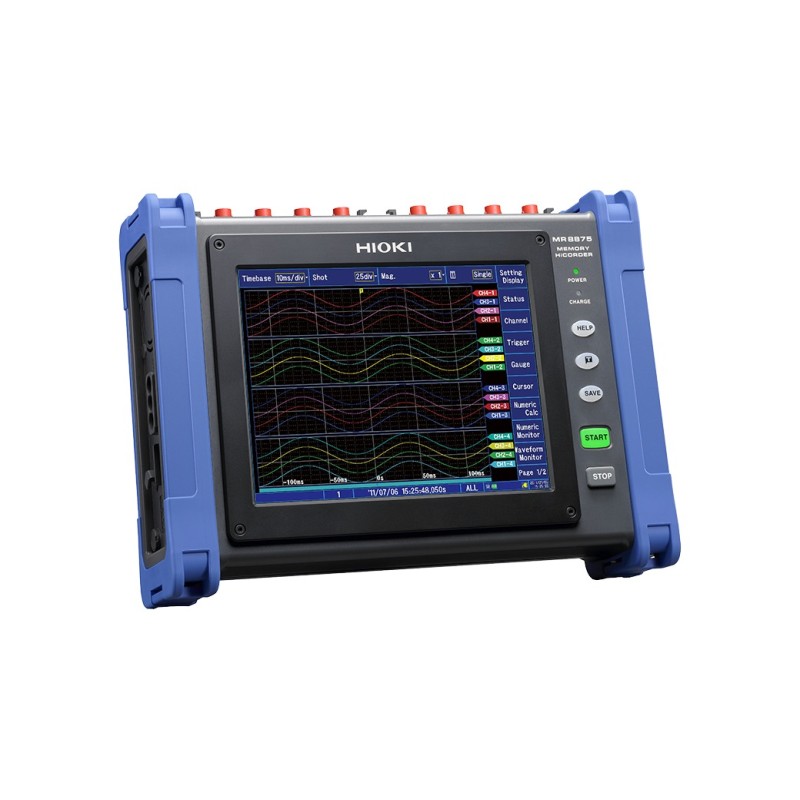

HIOKI MR8875 PRO Kit

The HIOKI MR8875 modular Memory HiCorder records waveforms from interchangeable input modules for vehicle testing, equipment development and multi-signal analysis. Voltage, temperature, strain and CAN capabilities depend on the modules installed.

Key Features

Four input-module slots; up to 16 analog channels or 60 temperature channels with the appropriate modules.
Up to 500 kS/s per channel with MR8901 modules; 16-bit acquisition.
32 Mwords of memory and direct SD-card recording.
FFT and waveform calculations, 8.4-inch touch display, LAN and USB connectivity.

Configuration: Input modules and measurement leads are sold separately and are not included in this PRO Kit. The PRO Kit adds a Z1003 battery, C1004 case and Z4003 card.

See Accessories Included for the exact quantities supplied with this configuration.

Contact RCC Electronics for configuration assistance and Canadian application support.

MR8875 Specifications

Instrument specifications apply under HIOKI's stated measurement conditions. Kit contents are listed separately.

Number of input units	Up to 4 slots
Number of channels	Max. 16 analog channels (Max. 60 channels when using the MR8902) + standard 8 logic channels + 2 pulse channels Note: For analog units, channels are isolated from each other and from the MR8875’s GND. For CAN unit ports or standard logic terminals or standard pulse terminals, all channels have common GND.
Measurement ranges (20 div full-scale)	5 mV to 10 V/div , 11 ranges (when using the MR8901), 500 mV to 50 V/div , 7 ranges (when using the MR8905), resolution : 1/1250 of range
Max. rated voltage	Between terminals: 150 V DC Between terminal to earth: 100 V AC, DC (when using the MR8901)
Frequency characteristics	DC to 100 kHz (-3 dB, when using the MR8901)
Time axis	200 µs to 5 min/div, 21 ranges, sampling period: 1/100 of range, External sampling possible
Max. sampling rate	[When using MR8901] 500 kS/s (2 μs period, all channels simultaneously) [When using MR8902] 10 ms (all input channels are scanned at high speed during every recording interval) [When using MR8903] 200 kS/s (5 μs period, all channels simultaneously) External sampling: 200 kS/s (5 μs period)
Measurement functions	High-speed function (high speed recording), Real-time calculation between channels, FFT calculation, or other functions
Storage memory capacity	Total 32 M-words (memory expansion: N/A, 8 MW each input unit) Note: 1 word = 2 bytes, therefore 32 Mega-words = 64 Mega-bytes. Note: Storage memory can be allocated depending on the number of channels used at each input unit
Removable storage	SD card slot ×1, USB 2.0 memory
Display	Touch-panel operation 8.4-inch SVGA-TFT color LCD (800 × 600 dots)
Communication interfaces	LAN: 100BASE-TX (DHCP, DNS supported, FTP server/ client, WEB server, send E-mail, command control) USB: USB 2.0 compliant, series mini-B receptacle ×1 (setting / measure with communication command, or file transfer SD card to PC), series A receptacle ×2 (USB memory, USB mouse/ key-board)
Power supply	1) AC adapter Z1002: 100 to 240 V AC (50/60 Hz), 56 VA 2) Battery pack Z1003: 7.2 V DC, 36 VA, continuous operation time: 1 hour with back light ON (AC adapter has priority when used in combination with battery pack), Charges while installed in the MR8875, recharging time: 3 hours 3) External DC Power: 10 to 28 V DC, 56 VA
Dimensions and mass	298 mm (11.73 in.)W × 224 mm (8.82 in.)H × 84 mm (3.31 in.)D, 2.4 kg (84.7 oz.), (excluding input units and the Battery pack Z1003) Reference data: 3.47 kg/ 122.4 oz. (including the MR8901 ×4 units and the Battery pack Z1003)

HIOKI official specifications and accessories

MR8875 PRO Kit Contents

The following quantities describe this kit configuration.

Qty	Model	Included item
1	MR8875	modular Memory HiCorder
1	Z1003	Rechargeable NiMH battery pack
1	C1004	Hard carrying case
1	Z4003	8 GB SD memory card

Standard Accessories Supplied with the Instrument

These are supplied with the main instrument. Items already counted in the kit table are not repeated.

Qty	Model	Included item
1	Z1002	AC adapter
1	L1003	USB cable
1	—	Protection sheet
1	—	Shoulder strap
1	—	Instruction manual
1	—	Measurement guide

Included versus optional: Input modules and measurement leads are sold separately and are not included in this PRO Kit. The PRO Kit adds a Z1003 battery, C1004 case and Z4003 card.
