LR8534 Wireless Strain kit - HIOKI LR8534 w/ Z1007

Name: LR8534 Wireless Strain kit - HIOKI LR8534 w/ Z1007
Brand: HIOKI
SKU: LR8534 Wireless Strain kit
Price: 6071.80 CAD
Availability: OutOfStock

Pre-Order

Click Image for Gallery

Brand: HIOKI
Product Code: LR8534 Wireless Strain kit
Availability: Pre-order item. Add item to cart and ETA will be 2-4 weeks.

CAD 6,071.80

Qty: Add to Cart

Add to Enquiry List Add to Compare

Description

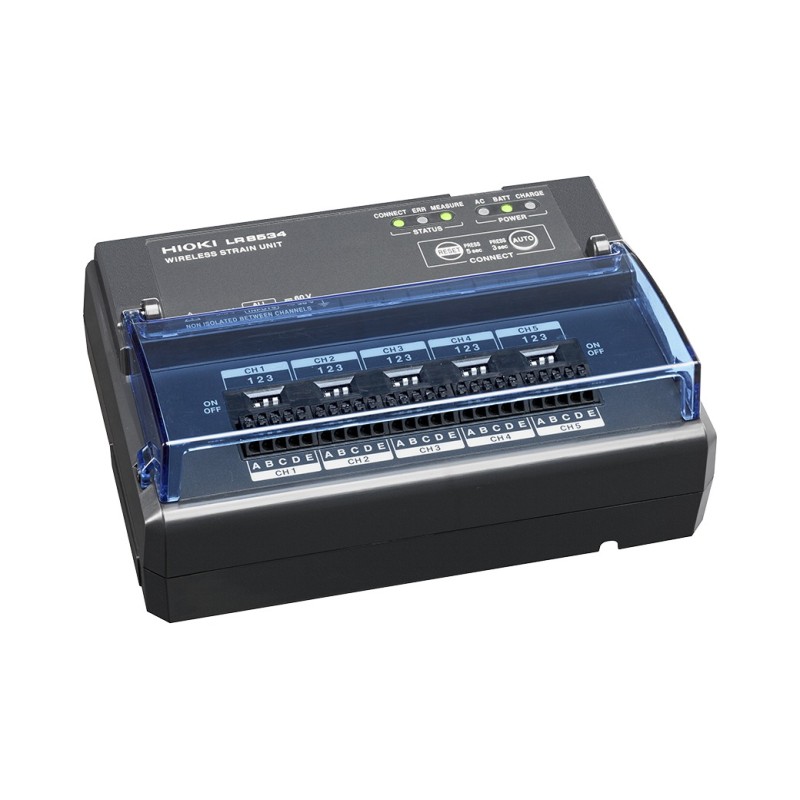

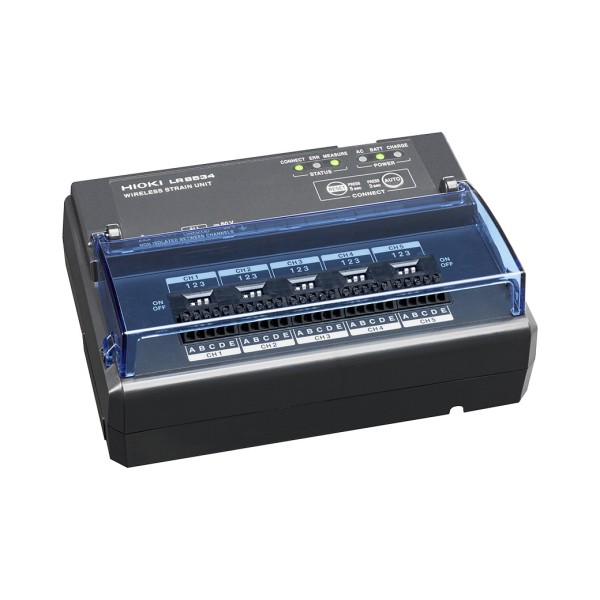

HIOKI LR8534 Wireless Strain Kit

The HIOKI LR8534 wireless strain unit extends an LR8450-01 logger with 5 measurement channels. It communicates through the supplied wireless LAN adapter and cannot operate as a standalone logger.

Key Features

Voltage, strain gauges and strain transducers; simultaneous sampling with non-isolated channels.
Fastest sampling: 1 ms.
Wireless range up to 30 m under line-of-sight conditions.
4 Mword buffer retains measurements during a temporary communication interruption.
Z1008 AC adapter supplied; Z1007 battery included in the Kit version.

Configuration: An LR8450-01 logger and suitable sensors or input wiring are required separately. Z3231 is a standard module accessory and is counted only once in the kit total.

See Accessories Included for the exact quantities supplied with this configuration.

Contact RCC Electronics for configuration assistance and Canadian application support.

LR8534 Specifications

Instrument specifications apply under HIOKI's stated measurement conditions. Kit contents are listed separately.

Fastest sampling	1 ms.
Connectable instrument	Memory HiLogger LR8450-01 (Wireless LAN model)
Control communications method	Connect wirelessly via Wireless LAN Adapter Z3231 (included) Wireless LAN (IEEE 802.11b/g/n) Communication range: 30 m (line of sight) Encryption function: WPA-PSK/WPA2-PSK, TKIP/AES Available number of channels: 1 to 11
Communications buffer memory	4 M word (volatile memory) Saves data in the event of a communications error. Data is resent when communications are restored.
Operating temperature and humidity	-20°C to 55°C, 80% RH (no condensation) (Charging temperature range: 5°C to 35°C)
Storage temperature and humidity	-20°C to 60°C, 80% RH (no condensation)
Vibration resistance	JIS D 1601:1995 5.3(1), Class 1A (passenger vehicle) equivalent
LED display	Wireless connection, measurement status, error status, AC adapter/external power, battery power, charge status
Automatic connection function	Available
Number of input channels	5 ch (Able to set voltage or strain for each channel)
Input terminals	Push-button type terminal block (5 terminals per channel), outfitted with terminal block cover Set DIP switches according to measurement target.
Measurement target	Voltage Strain: Strain gage 1-gage method (2-wire setup), 1-gage method (3-wire setup), 2-gage method (adjacent sides), 4-gage method Strain gauge transducer
Input type	Balanced differential input, Simultaneous sampling of all channels (non-isolated channels)
Voltage measurement (resolution)	1 mV f.s. (50 nV), 2 mV f.s. (100 nV), 5 mV f.s. (250 nV), 10 mV f.s. (500 nV), 20 mV f.s. (1μV), 50 mV f.s. (2.5μV), 100 mV f.s. (5μV), 200 mV f.s. (10μV)
Strain measurement (resolution)	1,000 με f.s. (0.05 με), 2,000 με f.s. (0.1 με), 5,000 με f.s. (0.25 με), 10,000 με f.s. (0.5 με), 20,000 με f.s. (1 με), 50,000 με f.s. (2.5 με), 100,000 με f.s. (5 με), 200,000 με f.s. (10 με)

HIOKI official specifications and accessories

HIOKI LR8450 family catalog: current Z3231 configuration

LR8534 Wireless Strain Kit Contents

The following quantities describe this kit configuration.

Qty	Model	Included item
1	LR8534	wireless strain unit
1	Z3231	Wireless LAN adapter
1	Z1007	Rechargeable lithium-ion battery pack

Standard Accessories Supplied with the Instrument

These are supplied with the main instrument. Items already counted in the kit table are not repeated.

Qty	Model	Included item
1	Z1008	AC adapter
1	—	Mounting plate
2	M3 × 4	Mounting screw
1	—	Instruction manual
1	—	Wiring confirmation label

Included versus optional: An LR8450-01 logger and suitable sensors or input wiring are required separately. Z3231 is a standard module accessory and is counted only once in the kit total.

HIOKI official specifications and accessories
