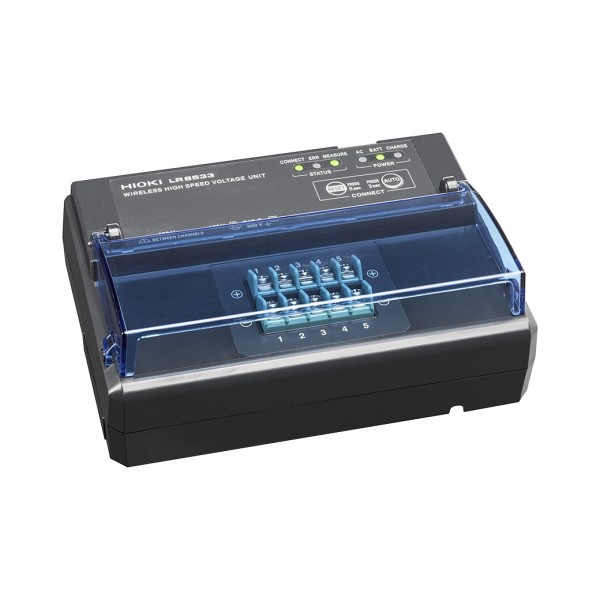

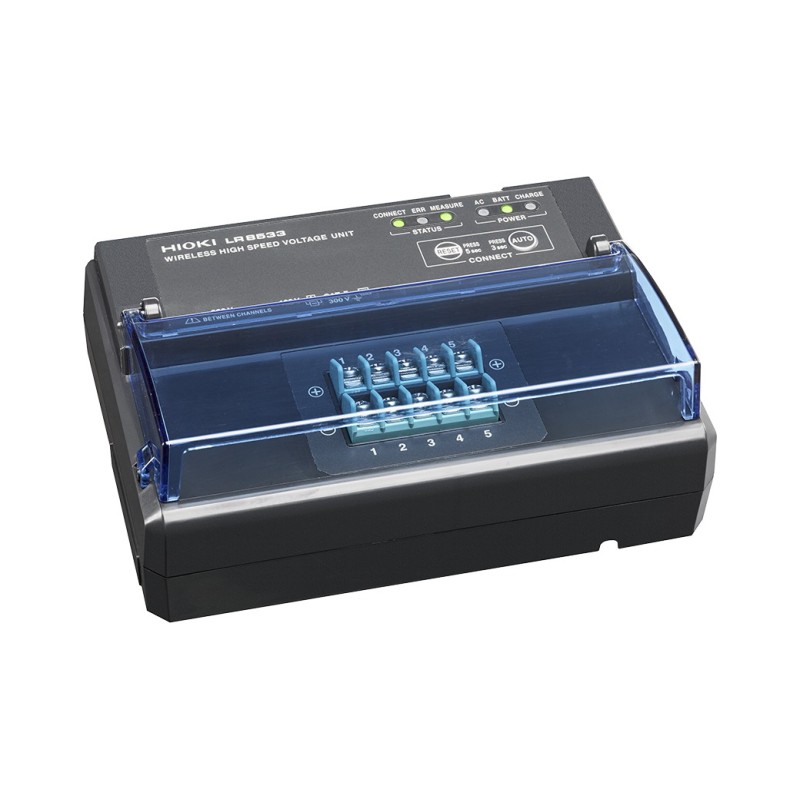

The HIOKI LR8533 wireless high-speed voltage unit extends an LR8450-01 logger with 5 measurement channels. It communicates through the supplied wireless LAN adapter and cannot operate as a standalone logger.
Key Features
Five isolated voltage channels for rapidly changing DC voltage signals.
Fastest sampling: 1 ms.
Wireless range up to 30 m under line-of-sight conditions.
4 Mword buffer retains measurements during a temporary communication interruption.
Z1008 AC adapter supplied; Z1007 battery included in the Kit version.
Configuration: An LR8450-01 logger and suitable sensors or input wiring are required separately. Z3231 is a standard module accessory and is counted only once in the kit total.
See Accessories Included for the exact quantities supplied with this configuration.
Contact RCC Electronics for configuration assistance and Canadian application support.
LR8533 Specifications
Instrument specifications apply under HIOKI's stated measurement conditions. Kit contents are listed separately.
Fastest sampling
1 ms.
Connectable instrument
Memory HiLogger LR8450-01 (Wireless LAN model)
Control communications
method
Connect wirelessly via Wireless LAN Adapter Z3231 (included)
Wireless LAN (IEEE 802.11b/g/n)
Communication range: 30 m (line of sight)
Encryption function: WPA-PSK/WPA2-PSK, TKIP/AES
Available number of channels: 1 to 11
Communications buffer
memory
4 M word (volatile memory)
Saves data in the event of a communications error. Data is resent when communications are restored.
Operating temperature
and humidity
-20°C to 55°C, 80% RH (no condensation)
(Charging temperature range: 5°C to 35°C)
Storage temperature
and humidity
-20°C to 60°C, 80% RH (no condensation)
Vibration resistance
JIS D 1601:1995 5.3(1), Class 1A (passenger vehicle) equivalent
LED display
Wireless connection, measurement status, error status, AC adapter/external power, battery power, charge status
Automatic connection function
Available
Number of input
channels
5 ch (voltage only)
Input terminals
M3 screw-type terminal block (2 terminals per channel), outfitted with terminal block cover
Measurement
target
Voltage
Input type
Scanning by semiconductor relays
All channels isolated
Voltage measurement (resolution)
100 mV f.s. (5 μV), 200 mV f.s. (10 μV), 1 V f.s. (50 μV), 2 V f.s. (100 μV), 10 V f.s. (500 μV), 20 V f.s. (1 mV), 100 V f.s. (5 mV), 1-5 V f.s. (500 μV)
These are supplied with the main instrument. Items already counted in the kit table are not repeated.
Qty
Model
Included item
1
Z1008
AC adapter
1
—
Mounting plate
2
M3 × 4
Mounting screw
1
—
Instruction manual
Included versus optional: An LR8450-01 logger and suitable sensors or input wiring are required separately. Z3231 is a standard module accessory and is counted only once in the kit total.
