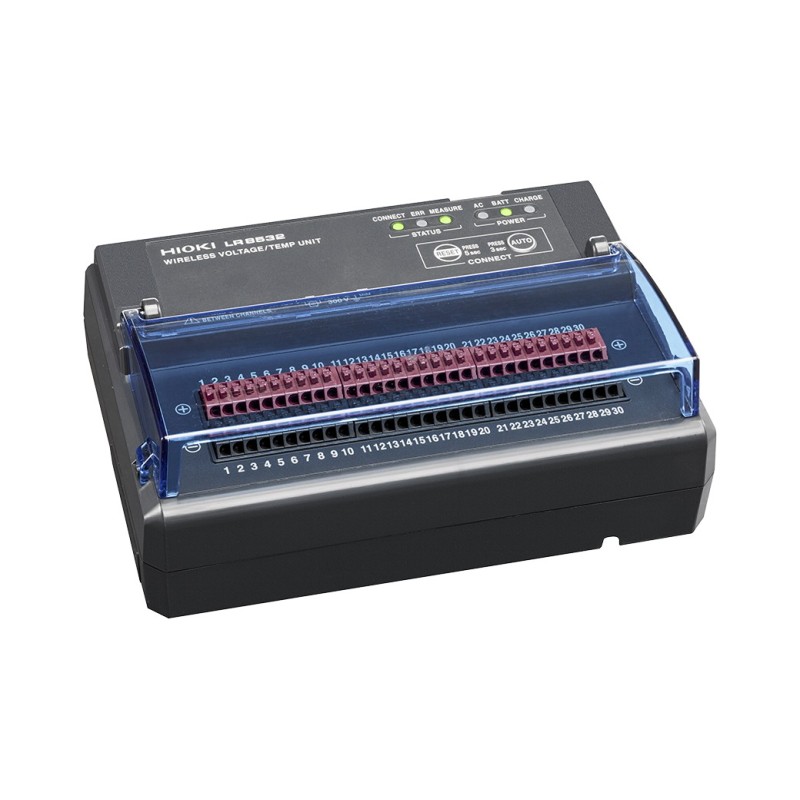

HIOKI LR8532 Wireless Voltage/Temp (30ch) Kit

The HIOKI LR8532 wireless voltage/temperature unit extends an LR8450-01 logger with 30 measurement channels. It communicates through the supplied wireless LAN adapter and cannot operate as a standalone logger.

Key Features

Voltage and thermocouple temperature inputs through push-button terminals.
Fastest sampling: 20 ms for 30 channels; 10 ms with 15 or fewer channels.
Wireless range up to 30 m under line-of-sight conditions.
4 Mword buffer retains measurements during a temporary communication interruption.
Z1008 AC adapter supplied; Z1007 battery included in the Kit version.

Configuration: An LR8450-01 logger and suitable sensors or input wiring are required separately. Z3231 is a standard module accessory and is counted only once in the kit total.

See Accessories Included for the exact quantities supplied with this configuration.

Contact RCC Electronics for configuration assistance and Canadian application support.

LR8532 Specifications

Instrument specifications apply under HIOKI's stated measurement conditions. Kit contents are listed separately.

Fastest sampling	20 ms for 30 channels; 10 ms with 15 or fewer channels.
Connectable instrument	Memory HiLogger LR8450-01 (Wireless LAN model)
Control communications method	Connect wirelessly via Wireless LAN Adapter Z3231 (included) Wireless LAN (IEEE 802.11b/g/n) Communication range: 30 m (line of sight) Encryption function: WPA-PSK/WPA2-PSK, TKIP/AES Available number of channels: 1 to 11
Communications buffer memory	4 M word (volatile memory) Saves data in the event of a communications error. Data is resent when communications are restored.
Operating temperature and humidity	-20°C to 55°C, 80% RH (no condensation) (Charging temperature range: 5°C to 35°C)
Storage temperature and humidity	-20°C to 60°C, 80% RH (no condensation)
Vibration resistance	JIS D 1601:1995 5.3(1), Class 1A (passenger vehicle) equivalent
LED display	Wireless connection, measurement status, error status, AC adapter/external power, battery power, charge status
Automatic connection function	Available
Number of input channels	30 ch (Able to set voltage or temperature using the thermocouple for each channel)
Input terminals	Push-button type terminal block (2 terminals per channel)
Measurement target	Voltage, temperature using the thermocouple
Input type	Scanning by semiconductor relays All channels isolated
Voltage measurement (resolution)	10 ｍV f.s. (500 nV), 20 mV f.s. (1μV), 100 mV f.s. (5μV), 200 mV f.s. (10μV), 1 V f.s. (50μV), 2 V f.s. (100μV), 10 V f.s. (500μV), 20 V f.s. (1 mV), 100 V f.s. (5 mV), 1-5 V f.s. (500μV)
Temperature measurement (thermocouple)	K: -100.00℃ to 1350.0℃ J: -100.00℃ to 1200.0℃ E: -100.00℃ to 1000.0℃ T: -100.00℃ to 400.0℃ N: -100.00℃ to 1300.0℃ R: 0.00℃ to 1700.0℃ S: 0.00℃ to 1700.0℃ B: 400.0℃ to 1800.0℃ C: 0.00℃ to 2000.0℃

HIOKI official specifications and accessories

HIOKI LR8450 family catalog: current Z3231 configuration

LR8532 Wireless Voltage/Temp (30ch) Kit Contents

The following quantities describe this kit configuration.

Qty	Model	Included item
1	LR8532	wireless voltage/temperature unit
1	Z3231	Wireless LAN adapter
1	Z1007	Rechargeable lithium-ion battery pack

Standard Accessories Supplied with the Instrument

These are supplied with the main instrument. Items already counted in the kit table are not repeated.

Qty	Model	Included item
1	Z1008	AC adapter
1	—	Mounting plate
2	M3 × 4	Mounting screw
1	—	Instruction manual

Included versus optional: An LR8450-01 logger and suitable sensors or input wiring are required separately. Z3231 is a standard module accessory and is counted only once in the kit total.
