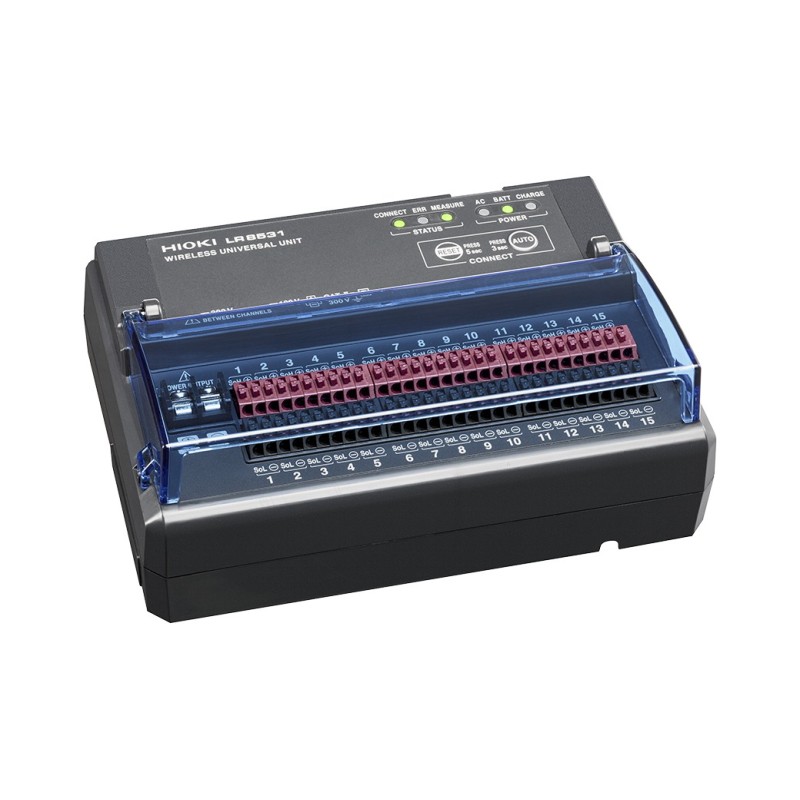

HIOKI LR8531 Wireless Universal Kit

The HIOKI LR8531 wireless universal unit extends an LR8450-01 logger with 15 measurement channels. It communicates through the supplied wireless LAN adapter and cannot operate as a standalone logger.

Key Features

Voltage, thermocouple/RTD temperature, resistance and humidity inputs. Inputs are not isolated for RTD, resistance or humidity measurement.
Fastest sampling: 10 ms.
Wireless range up to 30 m under line-of-sight conditions.
4 Mword buffer retains measurements during a temporary communication interruption.
Z1008 AC adapter supplied; Z1007 battery included in the Kit version.

Configuration: An LR8450-01 logger and suitable sensors or input wiring are required separately. Z3231 is a standard module accessory and is counted only once in the kit total.

See Accessories Included for the exact quantities supplied with this configuration.

Contact RCC Electronics for configuration assistance and Canadian application support.

LR8531 Specifications

Instrument specifications apply under HIOKI's stated measurement conditions. Kit contents are listed separately.

Fastest sampling	10 ms.
Connectable instrument	Memory HiLogger LR8450-01 (Wireless LAN model)
Control communications method	Connect wirelessly via Wireless LAN Adapter Z3231 (included) Wireless LAN (IEEE 802.11b/g/n) Communication range: 30 m (line of sight) Encryption function: WPA-PSK/WPA2-PSK, TKIP/AES Available number of channels: 1 to 11
Communications buffer memory	4 M　word (volatile memory) Saves data in the event of a communications error. Data is resent when communications are restored.
Operating temperature and humidity	-20°C to 55°C, 80% RH (no condensation) (Charging temperature range: 5°C to 35°C)
Storage temperature and humidity	-20°C to 60°C, 80% RH (no condensation)
Vibration resistance	JIS D 1601:1995 5.3(1), Class 1A (passenger vehicle) equivalent
LED display	Wireless connection, measurement status, error status, AC adapter/external power, battery power, charge status
Automatic connection function	Available
Number of input channels	15 ch (Able to set voltage, temperature using the thermocouple or RTD, humidity, and resistance for each channel)
Input terminals	Push-button type terminal block (4 terminals per channel)
Measurement target	Voltage, temperature using the thermocouple or RTD, humidity, resistance
Input type	Scanning by semiconductor relays All channels isolated (Not isolated when measuring with RTD, resistance, and humidity)
Voltage measurement (resolution)	10 ｍV f.s. (500 nV), 20 mV f.s. (1μV), 100 mV f.s. (5μV), 200 mV f.s. (10μV), 1 V f.s. (50μV), 2 V f.s. (100μV), 10 V f.s. (500μV), 20 V f.s. (1 mV), 100 V f.s. (5 mV), 1-5 V f.s. (500μV)
Temperature measurement (thermocouple)	K: -100.00℃ to 1350.0℃ J: -100.00℃ to 1200.0℃ E: -100.00℃ to 1000.0℃ T: -100.00℃ to 400.0℃ N: -100.00℃ to 1300.0℃ R: 0.00℃ to 1700.0℃ S: 0.00℃ to 1700.0℃ B: 400.0℃ to 1800.0℃ C: 0.00℃ to 2000.0℃
Temperature measurement (Pt)	Pt100：-100.00℃ to 800.0℃ JPt100：-100.00℃ to 500.0℃ Pt1000：-100.00℃ to 800.0℃
Resistance measurement (resolution)	10 Ω (0.5 mΩ), 20 Ω (1 mΩ), 100 Ω (5 mΩ), 200 Ω (10 mΩ)

HIOKI official specifications and accessories

HIOKI LR8450 family catalog: current Z3231 configuration

LR8531 Wireless Universal Kit Contents

The following quantities describe this kit configuration.

Qty	Model	Included item
1	LR8531	wireless universal unit
1	Z3231	Wireless LAN adapter
1	Z1007	Rechargeable lithium-ion battery pack

Standard Accessories Supplied with the Instrument

These are supplied with the main instrument. Items already counted in the kit table are not repeated.

Qty	Model	Included item
1	Z1008	AC adapter
1	—	Mounting plate
2	M3 × 4	Mounting screw
1	—	Instruction manual

Included versus optional: An LR8450-01 logger and suitable sensors or input wiring are required separately. Z3231 is a standard module accessory and is counted only once in the kit total.
