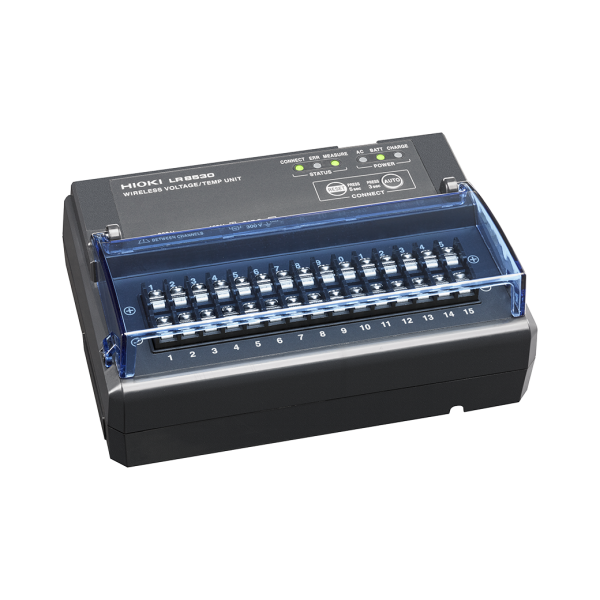

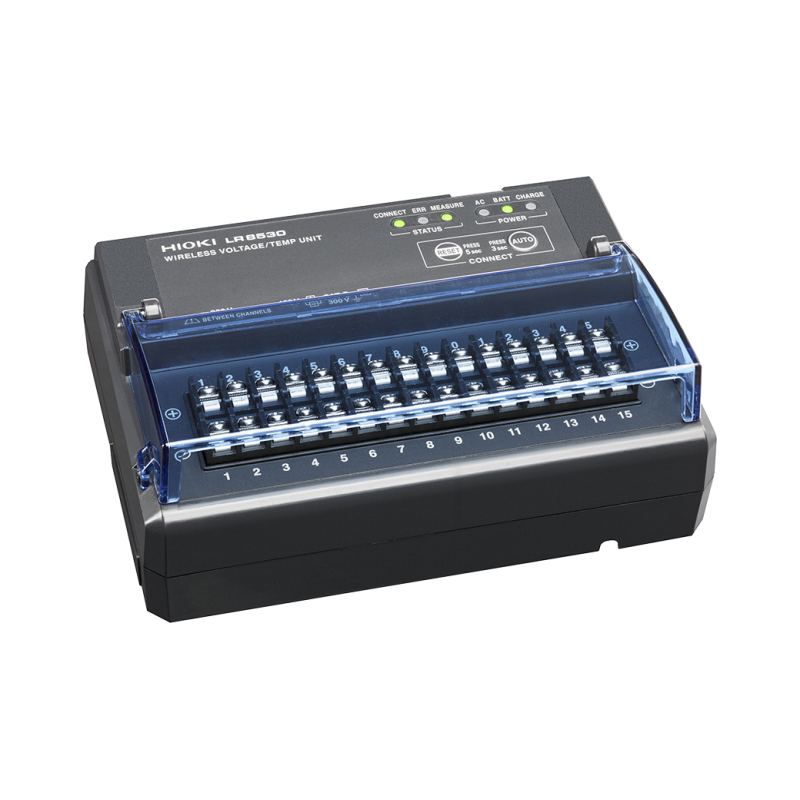

The HIOKI LR8530 wireless voltage/temperature unit extends an LR8450-01 logger with 15 measurement channels. It communicates through the supplied wireless LAN adapter and cannot operate as a standalone logger.
Key Features
Voltage and thermocouple temperature inputs through M3 screw terminals.
Fastest sampling: 10 ms.
Wireless range up to 30 m under line-of-sight conditions.
4 Mword buffer retains measurements during a temporary communication interruption.
Z1008 AC adapter supplied; Z1007 battery included in the Kit version.
Configuration: An LR8450-01 logger and suitable sensors or input wiring are required separately. Z3231 is a standard module accessory and is counted only once in the kit total.
Contact RCC Electronics for configuration assistance and Canadian application support.
LR8530 Specifications
Instrument specifications apply under HIOKI's stated measurement conditions. Kit contents are listed separately.
Fastest sampling
10 ms.
Connectable instrument
Memory HiLogger LR8450-01 (Wireless LAN model)
Control communications method
Connect wirelessly via Wireless LAN Adapter Z3231 (included) Wireless LAN (IEEE 802.11b/g/n) Communication range: 30 m (line of sight) Encryption function: WPA-PSK/WPA2-PSK, TKIP/AES Available number of channels: 1 to 11
Communications buffer memory
4 M word (volatile memory) Saves data in the event of a communications error. Data is resent when communications are restored.
Operating temperature and humidity
-20°C to 55°C, 80% RH (no condensation) (Charging temperature range: 5°C to 35°C)
Storage temperature and humidity
-20°C to 60°C, 80% RH (no condensation)
Vibration resistance
JIS D 1601:1995 5.3(1), Class 1A (passenger vehicle) equivalent
LED display
Wireless connection, measurement status, error status, AC adapter/external power, battery power, charge status
Automatic connection function
Available
Number of input channels
15 ch (Able to set voltage or temperature using the thermocouple for each channel)
Input terminals
M3 screw-type terminal block (2 terminals per channel)
Measurement target
Voltage, temperature using the thermocouple
Input type
Scanning by semiconductor relays All channels isolated
Voltage measurement (resolution)
10 ｍV f.s. (500 nV), 20 mV f.s. (1μV), 100 mV f.s. (5μV), 200 mV f.s. (10μV), 1 V f.s. (50μV), 2 V f.s. (100μV), 10 V f.s. (500μV), 20 V f.s. (1 mV), 100 V f.s. (5 mV), 1-5 V f.s. (500μV)
Temperature measurement (thermocouple)
K: -100.00℃ to 1350.0℃ J: -100.00℃ to 1200.0℃ E: -100.00℃ to 1000.0℃ T: -100.00℃ to 400.0℃ N: -100.00℃ to 1300.0℃ R: 0.00℃ to 1700.0℃ S: 0.00℃ to 1700.0℃ B: 400.0℃ to 1800.0℃ C: 0.00℃ to 2000.0℃
Included versus optional: An LR8450-01 logger and suitable sensors or input wiring are required separately. Z3231 is a standard module accessory and is counted only once in the kit total.
