HIOKI LR8450 Data Logger Kit

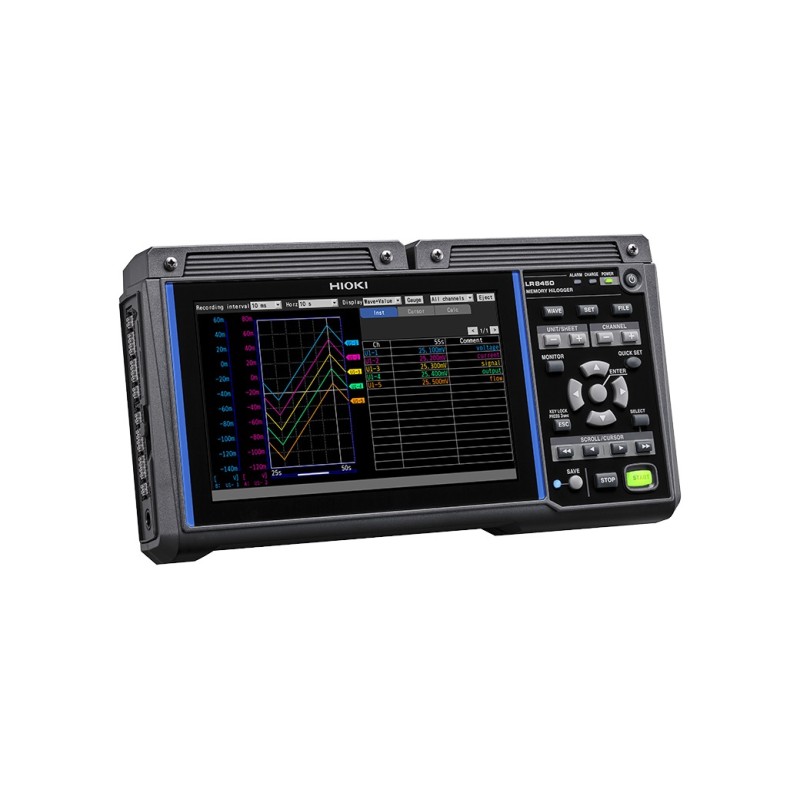

The HIOKI LR8450 modular Memory HiLogger provides modular recording of voltage, temperature and other signals for product testing and industrial data acquisition. Select plug-in measurement modules to suit the required input types.

Key Features

Accepts up to four plug-in modules, supporting up to 120 analog channels depending on configuration.
Recording intervals down to 1 ms with compatible high-speed modules.
Eight pulse/logic inputs and a 7-inch colour display.
SD and USB storage, USB communication and wired LAN connectivity.

Configuration: Measurement modules, sensors and input wiring are sold separately. The Data Logger Kit adds a C1012 case, Z4003 card and two Z1007 batteries; it does not include measurement modules.

See Accessories Included for the exact quantities supplied with this configuration.

Contact RCC Electronics for configuration assistance and Canadian application support.

LR8450 Specifications

Instrument specifications apply under HIOKI's stated measurement conditions. Kit contents are listed separately.

No. of measurement channels	Up to 120 ch with plug-in modules. U8555 can input up to 500 channels per unit.
Pulse/logic input	[Number of ch] 8 ch (common GND, non-isolated, exclusive setting for pulse/logic input for individual channels) [Adaptive input format] Non-voltage contact, open collector, or voltage input [Count] 0 to 1000 M pulse, 1 pulse resolution [Rotational speed] 0 to 5000/n (r/s), 1/n (r/s) resolution, 0 to 300,000/n (r/min.), 1/n (r/min.) resolution, n: Number of pulses per rotation (1 to 1000) [Logic input] Records 1 or 0 for each recording interval
Recording intervals	1 ms, 2 ms, 5 ms* (*: Can be set only when using 1 ms/S modules), 10 ms to 1 hour, 22 selections (Data refresh interval can be set for each unit
Data storage	SD Memory Card/USB Drive (user-selectable) (Only storage media sold by Hioki are guaranteed for operation)
LAN interface	100BASE-TX / 1000BASE-T, DHCP, DNS support, Functions: Data acquisition, condition settings used with the Logger Utility software, configuring settings and controlling recording using communications commands, FTP server / FTP client, HTTP server, Email transmission, NTP client
USB interface	Series A receptacle × 2: USB 2.0 compliant (USB drive, keyboard, or hub) Series mini-B receptacle × 1: Data acquisition, condition settings used with the Logger Utility, configuring settings and controlling recording using communications commands, transferring data from a connected SD Memory Card to a computer
SD card slot	SD standard-compliant slot × 1 (with SD memory card/SDHC memory card support), Guaranteed-operation options: ‌Z4001, Z4003
Display	7 inch TFT color liquid crystal display (WVGA 800 × 480 pixel)
Functions	Save waveform data in real time to the SD memory card or USB drive, numerical value calculations, waveform calculations, 8ch alarm output, voltage output ×2 (5 V /12 V /24 V selectable)
Power supply	[AC adapter] Using the Z1014 (100 to 240 V AC, 50/60 Hz), 95 VA Max. (including AC adapter), 28 VA Max. (exclusive of AC adapter) [Battery Pack] Using the Z1007 (accommodates 2 batteries), continuous use 4 hr (reference value for 2 pieces), 20 VA Max. [External power] 10 to 30 V DC, 28 VA Max.
Dimensions and mass	Without any modules: 272 mm (10.71 in.) W × 145 mm (5.71 in.) H × 43 mm (1.69 in.) D (excluding protrusions), 1108 g (39.1 oz.) (excluding battery pack) With 2 modules: 272 mm (10.71 in.) W × 198 mm (7.80 in.) H × 63 mm (2.48 in.) D (excluding protrusions) With 4 modules: 272 mm (10.71 in.) W × 252 mm (9.92 in.) H × 63 mm (2.48 in.) D (excluding protrusions)

HIOKI official specifications and accessories

LR8450 Data Logger Kit Contents

The following quantities describe this kit configuration.

Qty	Model	Included item
1	LR8450	modular Memory HiLogger
1	C1012	Carrying case
1	Z4003	8 GB SD memory card
2	Z1007	Rechargeable lithium-ion battery pack

Standard Accessories Supplied with the Instrument

These are supplied with the main instrument. Items already counted in the kit table are not repeated.

Qty	Model	Included item
1	Z1014	AC adapter
1	L1003	USB cable
1	—	Quick start manual

Included versus optional: Measurement modules, sensors and input wiring are sold separately. The Data Logger Kit adds a C1012 case, Z4003 card and two Z1007 batteries; it does not include measurement modules.
