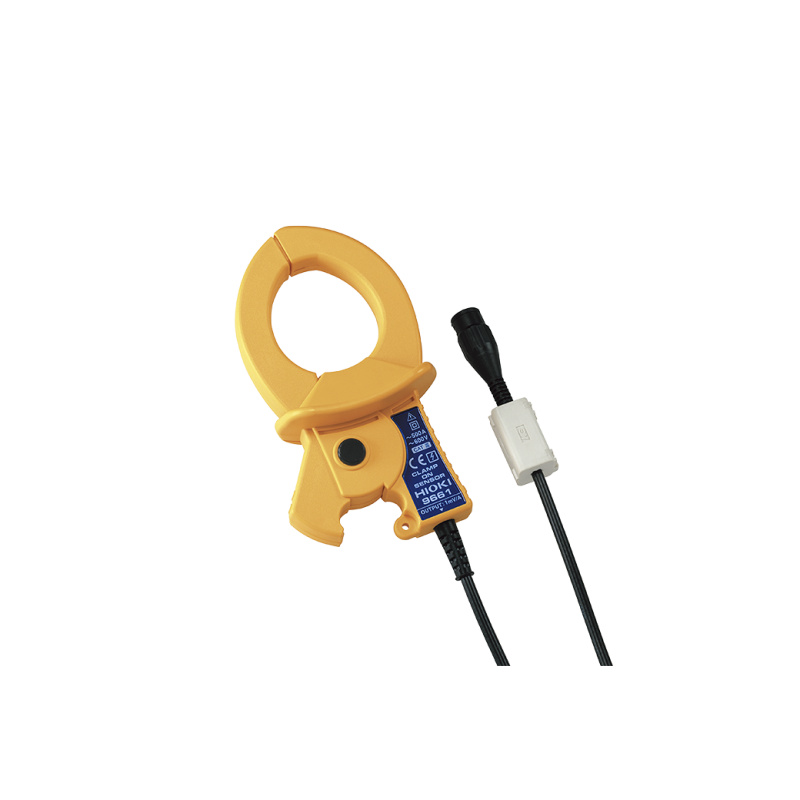

Clamp Meter 9661 - HIOKI 500A AC Clampon CT

9661 - HIOKI 500A AC Clampon CT

9661 - HIOKI 500A AC Clampon CT
9661 - HIOKI 500A AC Clampon CT
Brand: HIOKI
Product Code: 9661
Availability: 11
Price: CAD 456.40 CAD 407.50
Qty:

Clamp-on Sensors for the POWER QUALITY ANALYZER 3196 and CLAMP ON POWER HiTESTER 3169
For input up to AC 500A, select our Model 9661, and for smaller currents of up to AC 100A, select Model 9660. Both sensors are designed with a safety barrier to protect the user from being in direct contact with live conductors and completely meet all CE marking requirements.
Basic specifications
Rated input current 500 A AC
Rated output current 0.5 V AC
Accuracy (at 45 to 66 Hz) Amplitude: ±0.5 % rdg. ±0.2 % f.s. , Full scale (f.s.) is the 3196 range value,
Phase: ±0.5 ° or less
Frequency characteristics 66 Hz to 5 kHz (±1 % or less from accuracy)
Max. allowable input continuous 550 A rms (45 to 66 Hz)
Max. circuit voltage 600 V AC rms (insulated wire)
Core jaw dia. Ø46 mm(1.81 in)
Dimensions, mass 77 mm(3.03 in)W × 151 mm(5.94 in)H × 42 mm(1.65 in)D, 360 g (12.7 oz), cord length: 3 m(9.84 ft)
