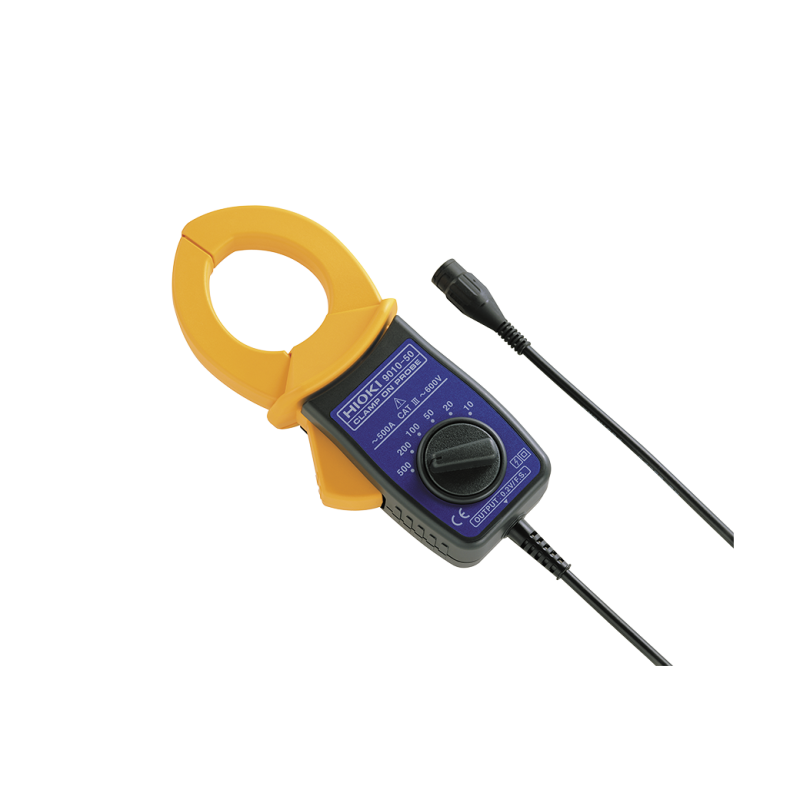

Clamp Meter 9010-50 - HIOKI 500A AC Clampon CT - 1KHz

9010-50 - HIOKI 500A AC Clampon CT - 1KHz

9010-50 - HIOKI 500A AC Clampon CT - 1KHz
9010-50 - HIOKI 500A AC Clampon CT - 1KHz
Brand: HIOKI
Product Code: 9010-50
Availability: 2-4 Weeks
*** Click here to view manufacturer specifications ***
Price: CAD 336.00 CAD 300.00
Qty:

Easy-to-use, current to voltage transformer
  • Choose from up to six general-purpose ranges
  • Combine use of the dedicated ranges with HIOKI Digital HiTESTERs to measure live conductors
  • Connect with optional BNC-Banana Adapter for greater flexibility
Basic specifications
Rated current 6 selectable ranges - 10/20/50/100/200/500A AC
Frequency band width 40 to 1 kHz (±6 % rdg max. for 10A and 20A ranges, ±3 % rdg max. for ranges 50A and above)
Accuracy (at 50 or 60 Hz) ±2% rdg. ±1%f.s. (45 to 66Hz)
Output rate 0.2 V AC at full scale range (AC voltage output), Connect to a voltage input device providing a high input impedance of 1Mohm, etc.
Output terminal: Insulated BNC
Max. current input 150A rms (10/20/50A range)
400A rms (100/200A range)
650A rms (500A range)
Max. rated voltage to earth 600 V AC rms (insulated conductor)
Core jaw diameter Ø46 mm(1.81 in)
Power supply None
Dimensions, mass 74 mm(2.91 in)W × 190 mm (7.48 in)H × 35 mm(1.38 in)D, 420 g (14.8 oz), cord length: 3 m(9.84 ft)
Accessories None
