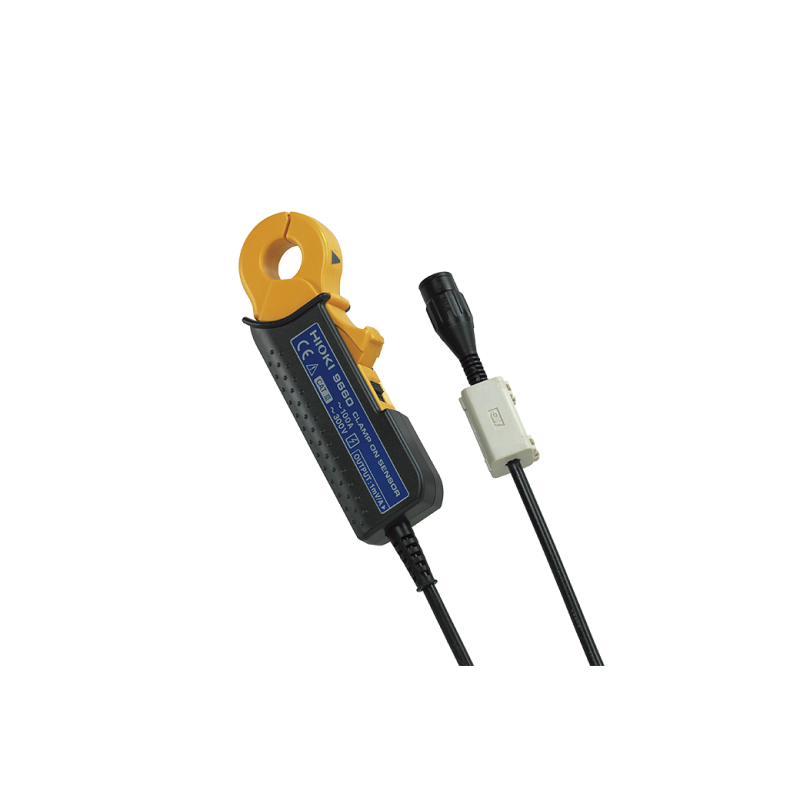

Clamp Meter 9660 - HIOKI 100A AC Clampon CT

9660 - HIOKI 100A AC Clampon CT

9660 - HIOKI 100A AC Clampon CT
9660 - HIOKI 100A AC Clampon CT
Brand: HIOKI
Product Code: 9660
Availability: 2
Price: CAD 418.60 CAD 373.75
Qty:

Clamp-on Sensors for the POWER QUALITY ANALYZER 3196 and CLAMP ON POWER HiTESTER 3169
For input up to AC 500A, select our Model 9661, and for smaller currents of up to AC 100A, select Model 9660. Both sensors are designed with a safety barrier to protect the user from being in direct contact with live conductors and completely meet all CE marking requirements.
Basic specifications
Rated input current 100 A AC
Rated output current 0.1 V AC
Accuracy (at 45 to 66 Hz) Amplitude: ±0.5 % rdg. ±0.2 % f.s. , Full scale (f.s.) is the 3196 range value,
Phase: ±1 ° or less (at 90 A or less), ±1.3 ° or less (at 90 A to 100 A)
Frequency characteristics 66 Hz to 5 kHz (±1 % or less from accuracy)
Max. allowable input continuous 130 A rms (45 to 66 Hz)
Max. circuit voltage 300 V AC rms (insulated wire)
Core jaw dia. Ø15 mm(0.59 in)
Dimensions, mass 46 mm(1.81 in)W × 135 mm(5.31 in)H × 21 mm(0.83 in)D, 230 g (8.1 oz), cord length: 3 m(9.84 ft)
