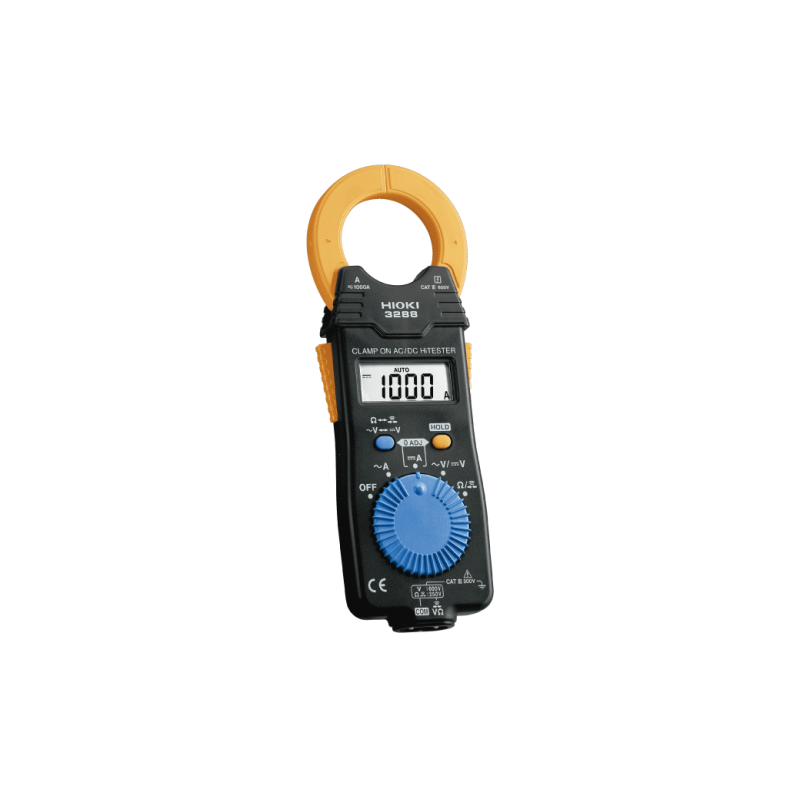

3288 - HIOKI 1000A AC/DC Clampon Tester

Compact & easy, one-touch maintenance on all types of AC/DC equipment

Use the 3288 for high current measurements such as UPS emergency batteries and train motors A slim core of only 10 mm(0.39 in) for easy clamping even in crowded wiring

Basic specifications

AC Current range	100.0 or 1000 A AC, 2 ranges (±1.5 % rdg. ±5 dgt. at 50 or 60Hz), Average rectifier effective value
DC Current range	100.0 or 1000 A DC, 2 ranges (±1.5 % rdg. ±5 dgt.)
AC Voltage range	4.200 to 600 V AC, 4 ranges (±2.3 % rdg. ±8 dgt. at 50 or 60Hz), Average rectifier effective value
DC Voltage range	420.0 mV to 600 V DC, 5 ranges (±1.3 % rdg. ±4 dgt.)
Other functions	Resistance: 420.0 to 42.00 M-ohm, 6 ranges, Accuracy: ±2.0 % rdg. ±4 dgt. (at 420 to 420 k-ohm range), Continuity: 420.0 ohm (Buzzer sounds at approx. 50 ohm or less)
Analog output	None
Frequency characteristics (at AC current / voltage)	AC current: 10 to 500 Hz, AC voltage: 30 to 500 Hz
Display section	Digital / LCD, maximum 4199 dgt.
Sampling rate	2.5 times/sec
Max. circuit voltage	600 V AC rms (insulated wire)
Power supply	CR2032 (3 VDC) × 1, Continuous use 60 hours
Core jaw dia.	Ø 35 mm(1.38 in)
Dimensions, mass	57 mm(2.24 in)W × 180 mm(7.09 in)H × 16 mm(0.63 in)D, 150 g (5.3 oz)
Accessories	TEST LEAD 9208 (1), CARRYING CASE 9398 (1)
