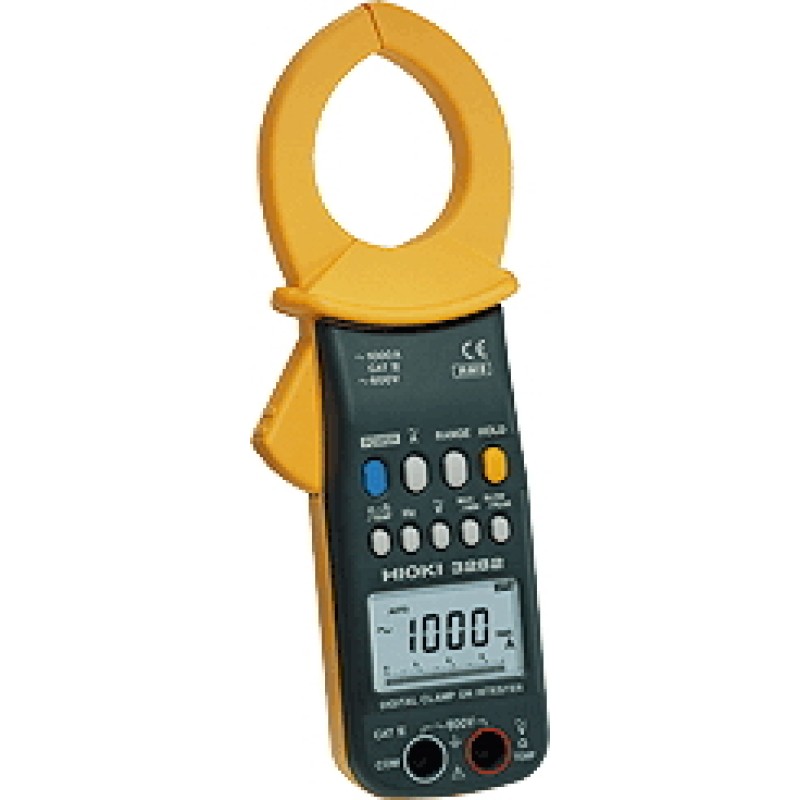

3282 (Used) - HIOKI TRMS 1000A AC Clampon Tester

TRMS AC Clampon Multimeter 1000A

AC Current/Voltage, Frequencies, Resistance, Conduction check, Temperature (probe sold separately) Wave peak value, Waveform distortion check Auto-power off to prevent the power from being left on Non-fuse type protects up to 600 V AC

Basic specifications

AC Current range	30.00 to 1000 A AC, 3 ranges (±1 % rdg. ±5 dgt. at 50 or 60Hz), Effective value rectifier
Wave peak value at AC Current	30.0 to 600 A peak, 3 ranges (±3 % rdg. ±5 dgt. at 50 or 60Hz)
AC Voltage range	300.0 or 600 V AC, 2 ranges (±1 % rdg. ±3 dgt. at 50 or 60Hz), Effective value rectifier
Wave peak value at AC Voltage	up to 300 or 600 V peak, 2 ranges (±3 % rdg. ±5 dgt. at 50 or 60Hz)
Other functions	Distortion check: 1 to 5 Crest factor, Resistance: 1 k or 10 k-ohm range, Temperature: -50 to 150 °C ( TEMPERATURE PROBE 9462 required, sold separately), Frequency: 100 or 1000 Hz, Mode: Slow/Peak/C.F./RMS/Record mode/Auto-off/Conduction
Analog output	None
Frequency characteristics (at AC current / voltage)	40 to 1000 Hz
Display section	Digital / 3000 dgt. Bar graph / 35 seg.
Sampling rate	2 or 4 times/sec (Slow: 1 times/3 sec)
Crest factor (RMS)	2.5 (1.7 at 1000 A, 600 V range)
Max. circuit voltage	600 V AC rms (insulated wire)
Power supply	6F22(006P) × 1, Continuous use 45 hours
Core jaw dia.	Ø 46 mm(1.81 in)
Dimensions, mass	62 mm(2.44 in)W × 230 mm(9.06 in)H × 39 mm(1.54 in)D, 400 g (14.1 oz)
Accessories	TEST LEAD 9207-10 (1), CARRYING CASE 9399 (1), Hand strap (1)
