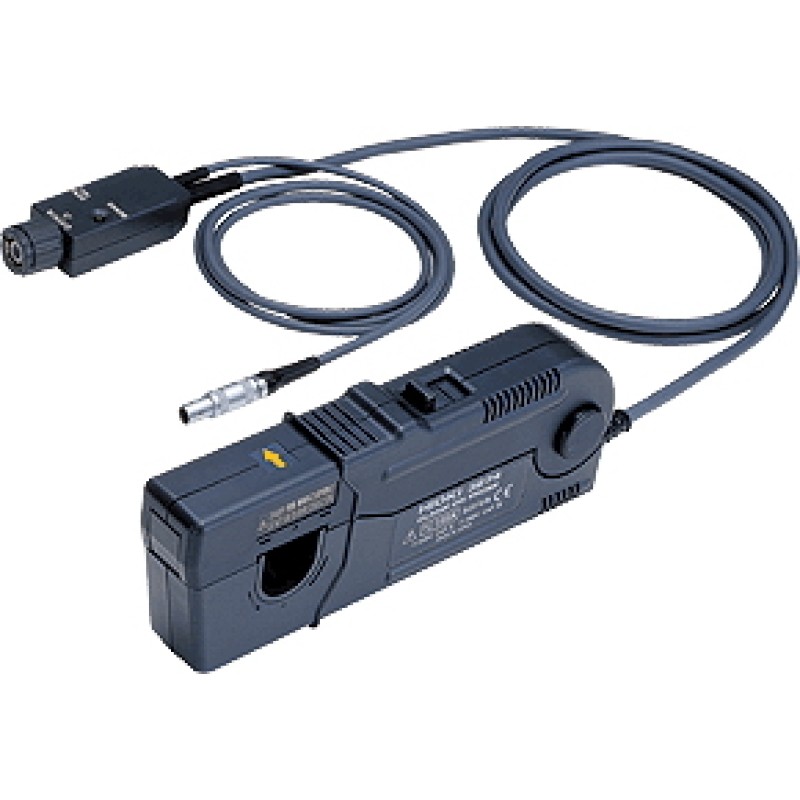

3274 - HIOKI 150A DC - 10MHz Clampon CT

Wide-band, large current probe allows direct input to oscilloscope

Even with the wide DC to 10 MHz frequency band, current waveforms up to 150 A can be directly observed in applications such as power device and power-on in-rush current monitoring Connects directly to oscilloscope BNC input terminal Connects directly to the F/V UNIT 8940 of the MEMORY HiCORDER to provide waveform monitoring An optional power supply is available for use with oscilloscopes that do not provide probe power

Basic specifications

Rated current	150 A (requires derating at frequency)
Frequency band width	DC to 10 MHz (-3 dB)
Rise time	=<35 ns
Noise level	25 mA rms max. (band width limited to 20 MHz)
Accuracy (DC or 45 to 66 Hz)	±1.0 % rdg. ±1 mV
Output rate	0.01 V/A
Max. circuit voltage	600 V CAT II, 300 V CAT III (insulated wire)
Core jaw dia.	Ø20 mm(0.79 in)
Power supply	±12 V ±1 V, 5.5 VA max.,   Plug: FFA.0S.304.CNAC42Z / LEMO inc.
Dimensions, mass	176 mm(6.93 in)W × 69 mm(2.72 in)H × 34 mm(1.34 in)D, 450 g (15.9 oz), cord length: 2 m(6.56 ft)
Accessories	Carrying case (1)
