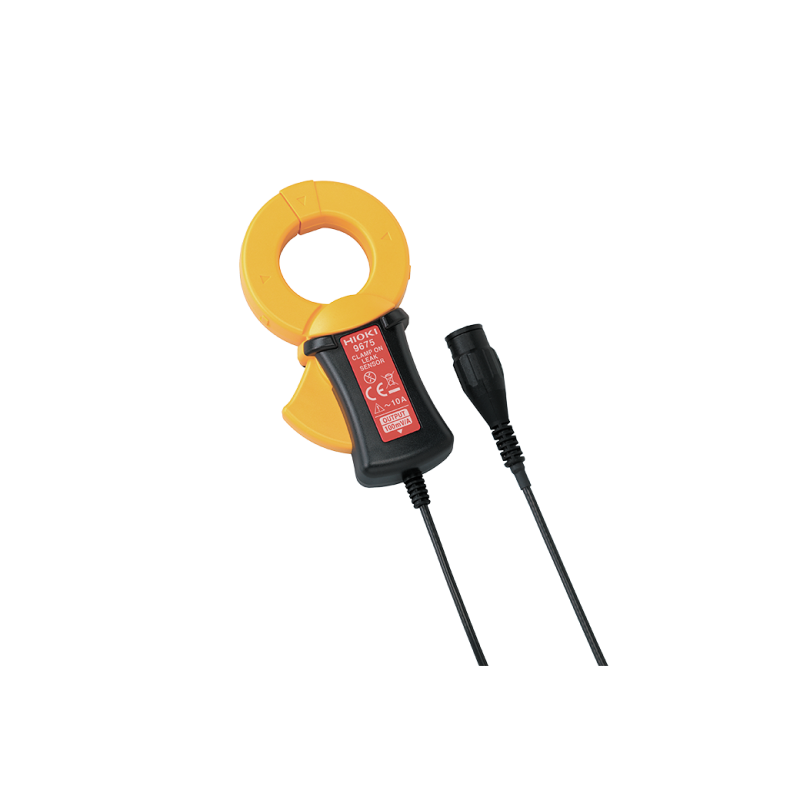

9675 - HIOKI Clamp On Leak Sensor

■ Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)

Rated primary current	AC 10 A (for leak current measurement, 50/60 Hz)
Max. allowable input (45-66 Hz)	Max. 10 A of continuous input
Rated output current	AC 100 mV/A
Amplitude accuracy (45-66 Hz)	±1.0 % rdg. ±0.005 % f.s.
Phase accuracy	±5 ° (at 50 Hz or 60 Hz)
Frequency characteristics	40 Hz to 5 kHz: ± 5%  (Add to amplitude accuracy)
Max. rated voltage to earth	40 Hz to 5 kHz: ± 5%  (Add to amplitude accuracy)
Core diameter	φ 30 mm (1.18 in)
Dimensions and mass	60 mm (2.36 in)W × 112.5 mm (4.43 in)H × 23.6 mm (0.93 in)D, 160 g (5.6 oz), Cord length: 3 m (9.84 ft)
Accessories	Instruction manual ×1
