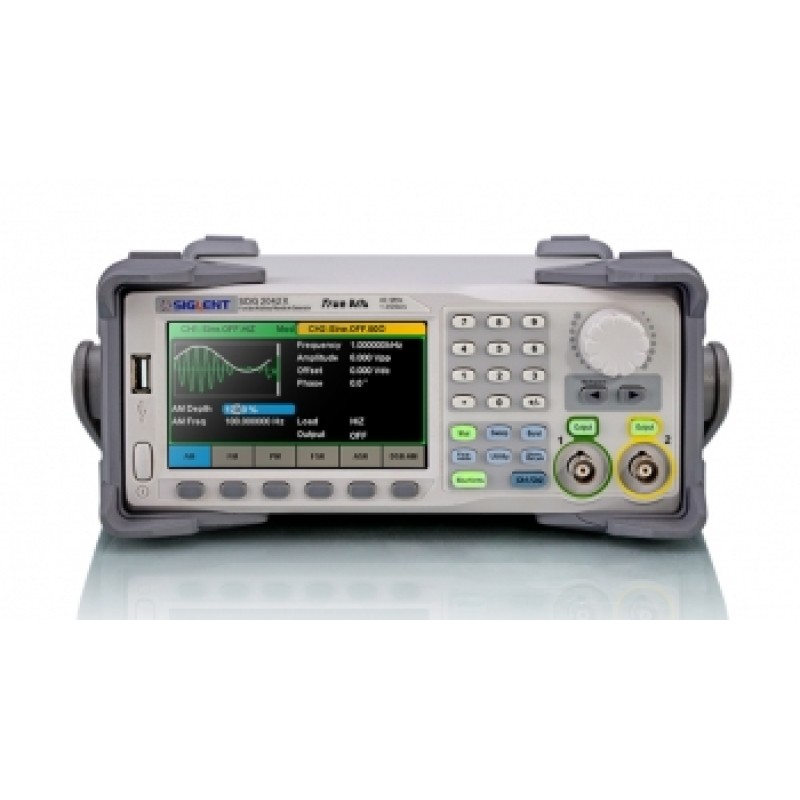

SDG2082X - Siglent Waveform Generator - 80MHz - 1.2GS/s

All products ship from Toronto, Canada by courier. Shipping is usually 1-10 days depending on your location in Canada. Shipping is free of charge. Orders received before 2:00pm (Mon-Fri) will be shipped on the same day (provided item is available in stock).  You can pay with all major credit cards. On our side, we use PayPal to process all credit card transactions. But on your side, it will be like any regular purchase. You do not need to create a PayPal account. From the shopping cart, simply select "PayPal / Credit Card", then select "Pay with a credit or Visa debit card". Customer satisfaction guaranteed, or your money back. RCC Electronics is proudly Canadian. We have been selling the best test equipment since 1978.



Product overview:
SIGLENT’s SDG2000X is a series of dual-channel function/arbitrary waveform generators with specifications of up to 120MHz maximum bandwidth, 1.2GSa/s sampling rate and 16-bit vertical resolution. The proprietary TrueArb & EasyPulse techniques help to solve the weaknesses inherent in traditional DDS generators when generating arbitrary, square and pulse waveforms. With advantages above, SDG2000X can provide users with a variety of high fidelity and low jitter signals, which can meet the growing requirements of complex and extensive applications.


Main Benefits:

◆  Dual-channel, 120MHz maximum bandwidth, 20Vpp maximum output amplitude, high fidelity output with 80dB dynamic range

◆  High-performance sampling system with 1.2GSa/s sampling rate and 16-bit vertical resolution. No detail in your waveforms will be lost

◆  Innovative TrueArb technology, based on a point-by-point architecture, supports any 8pts~8Mpts Arb waveform with a sampling rate in range of 1μSa/s~75MSa/s

◆  Innovative EasyPulse technology, capable of generating lower jitter Square or Pulse waveforms, brings a wide range and extremely high precision in pulse width and rise/fall times adjustment

◆  Plenty of analog and digital modulation types: AM, DSB-AM, FM, PM, FSK, ASK and PWM

◆  Sweep and Burst function

◆  High precision Frequency Counter

◆  Standard interfaces: USB Device, USB Host, LAN（VXI-11, support U Disk storage and software, upgrading GPIB port is optional

◆  4.3” touch screen display for easier operation

High Performance Sampling System:

Benefiting from a 1.2GSa/s and 16-bit sampling system, SDG2000X achieves extremely high accuracy performance in both time domain and amplitude, which results in more accurately reconstructed waveforms and lower distortion.

Product Models:

◆  SDG2042X, 40 MHz, 2 channel

◆  SDG2082X, 80 MHz, 2 channel

Standard Accessories:

◆  Quick Start Guide

◆  Product Certification

◆  Power Cord

◆  Calibration Certificate
