SDG7102A - SIGLENT 1 GHz, 2-Channel Waveform Generator

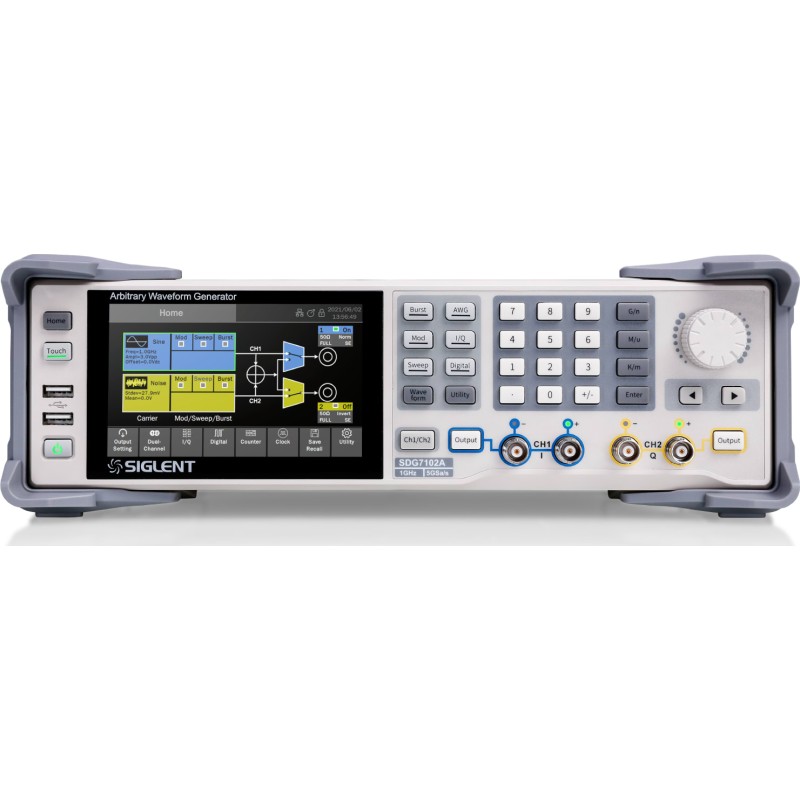

SIGLENT SDG7102A 1 GHz Waveform Generator

The SDG7102A is the 1 GHz model in the SDG7000A series. It provides dual-channel differential or single-ended outputs, 5 GSa/s sampling, deep arbitrary waveform memory and a high-speed platform for communications, semiconductor, research and automated test systems.

Key Capabilities

• Dual-channel differential or single-ended output
• 5 GSa/s maximum sampling rate and 14-bit vertical resolution
• 512 Mpoint waveform memory
• TrueArb sample rates from 0.01 Sa/s to 2.5 GSa/s
• 1 ns minimum pulse width and 500 ps minimum edge
• Optional IQ generation and 16-channel LVTTL or LVDS digital bus output

Typical Applications

• Analog and mixed-signal circuit development
• Filter, amplifier and power-electronics testing
• Sensor, communications and control-system simulation
• Education, production and automated test systems

Contact RCC Electronics for Canadian availability, configuration guidance and a formal quotation.

Technical Specifications

Official SIGLENT series information

Standard Accessories

• USB cable
• 2 × BNC coaxial cable
• Quick Start Guide
• Power cord for the destination country
• Wireless mouse

These items are supplied with the SDG7102A. Optional accessories below are not included unless stated on the RCCE quotation.

Optional Accessories

• ATT-20dB — 20 dB attenuator
• SSG-RMK — single-instrument 3U rack-mount kit
• USB-GPIB — USB-to-GPIB interface adapter
• 10M_OCXO_L — factory-installed high-precision OCXO
• DIG-LVTTL — 16-bit LVTTL digital bus kit
• DIG-LVDS — 16-bit LVDS digital bus kit without RF cables
• DIG-LVDS-2 — 16-bit LVDS digital bus kit with 32 RF cables
• SDG-7000A-IQ — IQ signal generator software function

Confirm compatibility, factory-install requirements and the final accessory configuration with RCCE before ordering.
