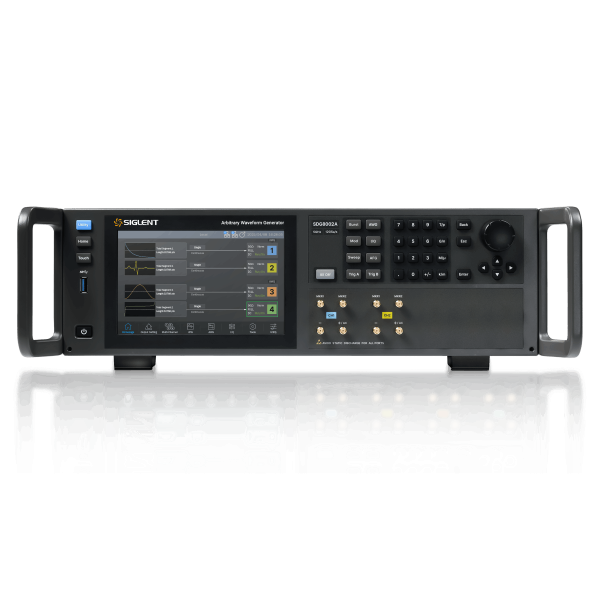

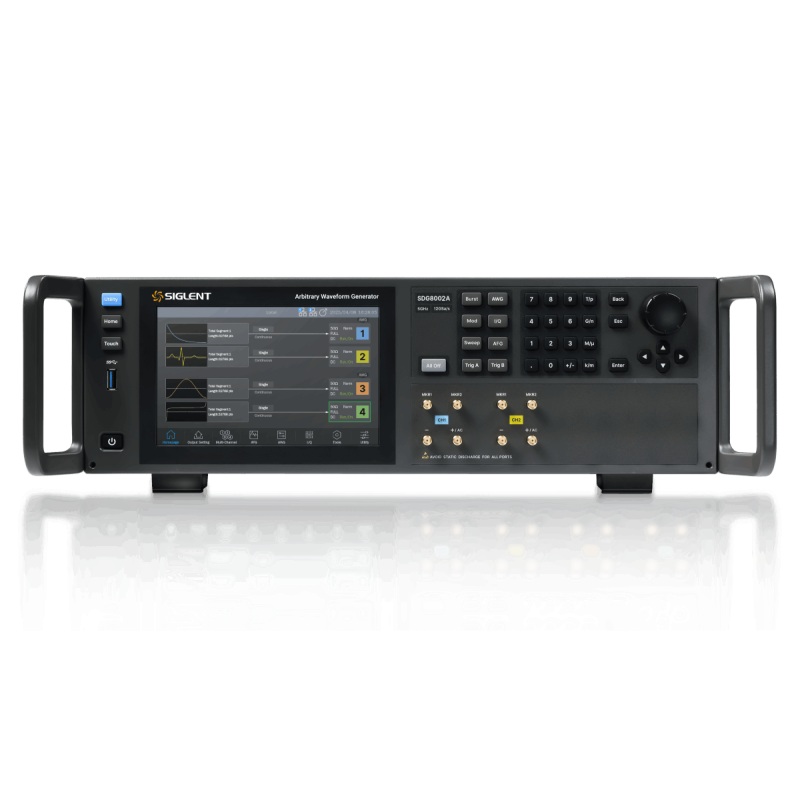

SDG8002A - SIGLENT 2-Channel Arbitrary Waveform Generator

New Pre-Order SDG8002A - SIGLENT 2-Channel Arbitrary Waveform Generator
Click Image for Gallery
SDG8002A - SIGLENT 2-Channel Arbitrary Waveform Generator
Brand: SIGLENT
Product Code: SDG8002A
Availability: Pre-order item. Add item to cart and ETA will be 2-4 weeks.
CAD 73,980.00
Qty: Add to Cart
Add to Enquiry List Add to Compare

SIGLENT SDG8002A 2-Channel Arbitrary Waveform Generator

The SDG8002A combines function and arbitrary waveform generation with IQ/vector signal generation and modulation capabilities in a two-channel instrument for advanced signal-generation and test workflows.

Key Capabilities

  • Two output channels with 16-bit vertical resolution.
  • Arbitrary waveform generation with 2 Gpts storage depth.
  • Maximum output frequency up to 5 GHz; sampling is 10 GSa/s with optional 12 GSa/s interpolation configuration.
  • Supported functions include IQ/vector, modulation, multi-tone, chirp, and sequence generation.

SDG8002A Specifications

  • Channels: 2
  • Vertical resolution: 16 bit
  • Sampling rate: 5 GSa/s (10 GSa/s with interpolation); optional 12 GSa/s interpolation configuration
  • Maximum output frequency: up to 5 GHz (configuration dependent)
  • Arbitrary waveform storage depth: 2 Gpts

See the official SDG8000A datasheet for configuration details.

Standard Accessories Included

  • 1 ร— USB cable
  • 1 ร— wireless mouse
  • 2 ร— SMA cables
  • 4 ร— 50 ฮฉ connectors
  • 1 ร— power cord
  • 1 ร— quick start guide
  • 1 ร— calibration certificate

Quantities reflect the SDG8002A configuration in the official SDG8000A datasheet.

Optional Accessories and Configurations

  • SDG8000-IQ โ€” IQ vector signal generation software
  • SDG8000-HSS โ€” high-speed serial waveform function
  • SDG8000-4GPTS โ€” 4 Gpts waveform storage option
  • SDG8000-ACAMP โ€” AC amplified output function
  • SDG8000-DCAMP โ€” DC amplified output function
  • SDG8000-MTONENL โ€” multi-tone and chirp function
  • SDG8000-Multi-Level SEQ โ€” multi-level sequence waveform function
  • USB-GPIB adapter, 10M_OCXO_L option, and DynamicPort-Cable
  • SIGLENT lists SigIQPro software options for SDG8000A; some protocol options require SDG8000-IQ.

Confirm configuration requirements in the official datasheet.

Official resources: SDG8002A product page ยท SDG8000A datasheet
