SDG6052X - Siglent Pulse/Arbitrary Waveform Generator

SIGLENT SDG6052X 500 MHz Waveform Generator

The SDG6052X is a dual-channel 500 MHz pulse/arbitrary waveform generator in the SDG6000X series. Its 2.4 GSa/s, 16-bit sampling system, TrueArb and EasyPulse technologies provide high-fidelity signals for fast pulse, communications, component and automated test applications.

Key Capabilities

• Two independent output channels
• 2.4 GSa/s sampling rate and 16-bit vertical resolution
• 20 Mpoint arbitrary waveform length
• TrueArb and EasyPulse waveform generation
• Noise, PRBS, sweep, burst, harmonic and waveform-combining functions
• Optional baseband and IF IQ signal generation

Typical Applications

• Analog and mixed-signal circuit development
• Filter, amplifier and power-electronics testing
• Sensor, communications and control-system simulation
• Education, production and automated test systems

Contact RCC Electronics for Canadian availability, configuration guidance and a formal quotation.

Technical Specifications

Official SIGLENT series information

Standard Accessories

• Quick Start Guide
• Power cord for the destination country
• Calibration certificate
• USB cable
• 2 × BNC coaxial cable

These items are supplied with the SDG6052X. Optional accessories below are not included unless stated on the RCCE quotation.

Optional Accessories

• SDG-6000X-IQ — IQ signal generator function
• SPA1010 — 10 W power amplifier
• ATT-20dB — 20 dB attenuator
• USB-GPIB — USB-to-GPIB interface adapter
• SDG-RMK — single-instrument rack-mount adapter
• SDG-2-RMK — dual-instrument 3U rack-mount kit

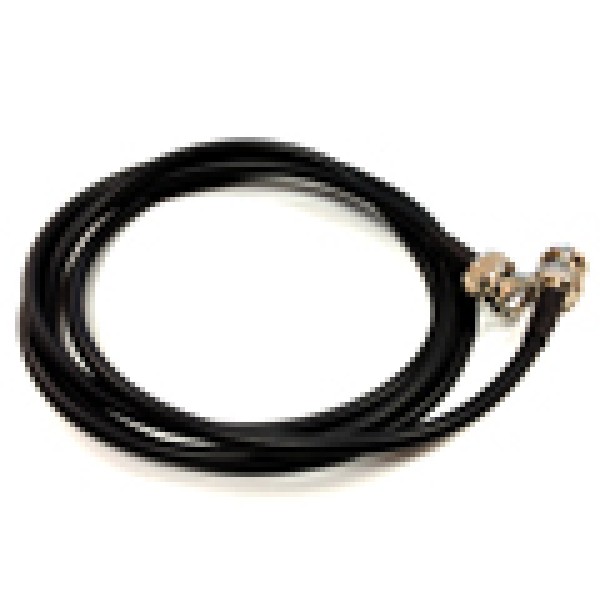

• SDG-BNC — spare BNC coaxial cable

Confirm compatibility, factory-install requirements and the final accessory configuration with RCCE before ordering.
