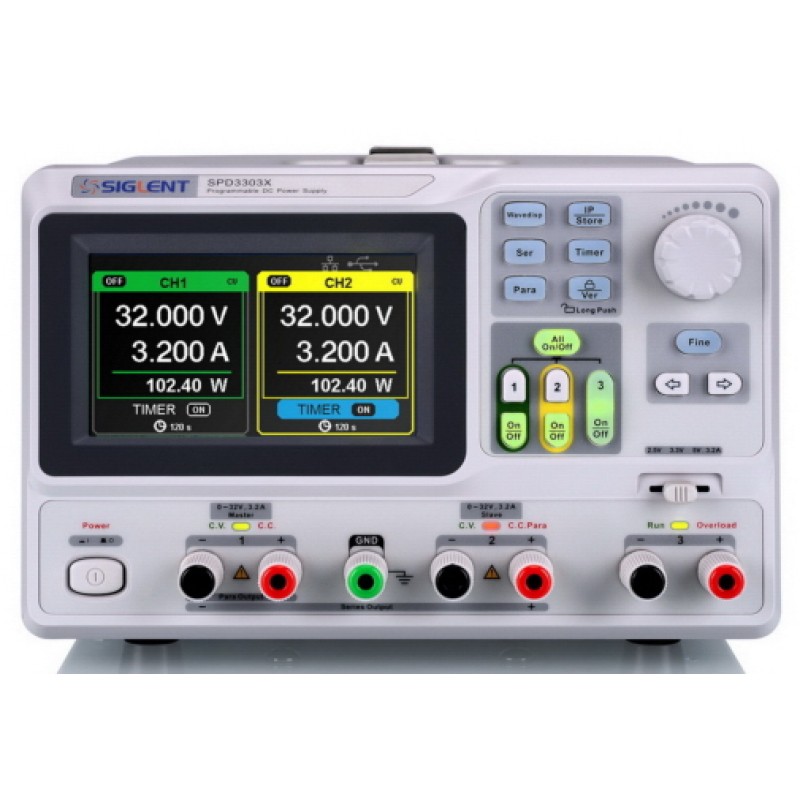

Siglent’s SPD3303X & SPD3303X-E Series Programmable Linear DC Power Supplies have a 4.3 inch TFT-LCD display, support Remote Programming and have Real Time Wave Displays. The SPD3000X Series has three isolated outputs; two adjustable channels and one selectable channel from 2.5 V, 3.3 V, and 5 V. It also has output short and overload protection and can be used in production and development.
| Channel Output | Display | Resolution | Setting Accuracy | Readback Accuracy | ||
|---|---|---|---|---|---|---|
| SPD3303X |
CH1: Voltage 0 to 32 V Current 0 to 3.2 A CH2: Voltage 0 to 32 V, Current 0 to 3.2 A CH3: Voltage 2.5/3.3/5.0 V, Current 3.2 A |
4.3" color TFT-LCD 5 digit voltage display 4 digit current display |
1 mV, 1 mA |
Voltage±(0.03% of reading+10mV) Current±(0. 3% of reading+10mA) |
Voltage±(0.03% of reading+10mV) Current±(0.3% of reading+10mA) |
Buy Now |
| SPD3303X-E |
CH1: Voltage 0 to 32 V Current 0 to 3.2 A CH2: Voltage 0 to 32 V, Current 0 to 3.2 A CH3: Voltage 2.5/3.3/5.0 V, Current 3.2 A |
4.3" color TFT-LCD 4 digit voltage display 3 digit current display |
10 mV, 10 mA |
Voltage: ± (0.5% of reading + 2 digits) Current ± (0.5% of reading + 2 digits) |
Voltage: ± (0.5% of reading + 2 digits) Current: ± (0.5% of reading + 2 digits) |
Buy Now |
