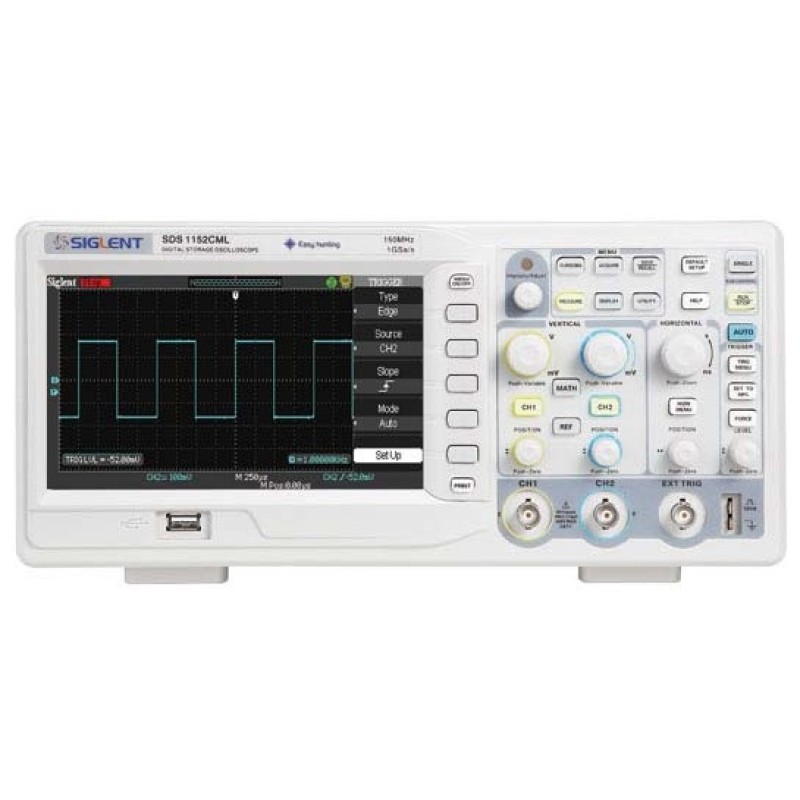

SDS1102CML+ - Siglent Digital Storage Scope - 100MHz, 2Ch
Product Overview
SDS1000CML+ series is a dual-channel universal digital
oscilloscope, available in 70 MHz, 100 MHz and 150 MHz
bandwidth models. It includes a 2 Mpts memory depth that helps
to ensure accurate waveform resolution and to capture longer
signal lengths. With its 7 inch TFT-LCD (800*480) screen, there is
adequate screen space to help better see and analyze waveform
details. Along with a 1 GSa/s sampling rate, the SDS1000CML+
supports 32 parameters measurements and common mathematical
operations to speed up complex / repetitive measurements.
Key Features
◆ 70 MHz, 100 MHz, 150 MHz bandwidth models
◆ Real-time sampling rate up to 1 GSa/s, Equivalent-time sampling rate up to 50 GSa/s
◆ Memory Depth up to 2 Mpts
◆ Trigger types: Edge, Pulse, Video, Slope, Alternate
◆ Waveform math functions:+, -, *, /, FFT
◆ 6 digital frequency counter
◆ Supports Multi-language display and embedded online help
◆ Screensaver from 1 minute to 5 hours
◆ Digital filter and waveform recorder function
◆ Shortcut storage function key
◆ 7 inch TFT-LCD display with 800 * 480 resolution
◆ Multiple interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11), Pass / Fail
