SYN64 - SIGLENT 64-Channel Synchronization Distributor

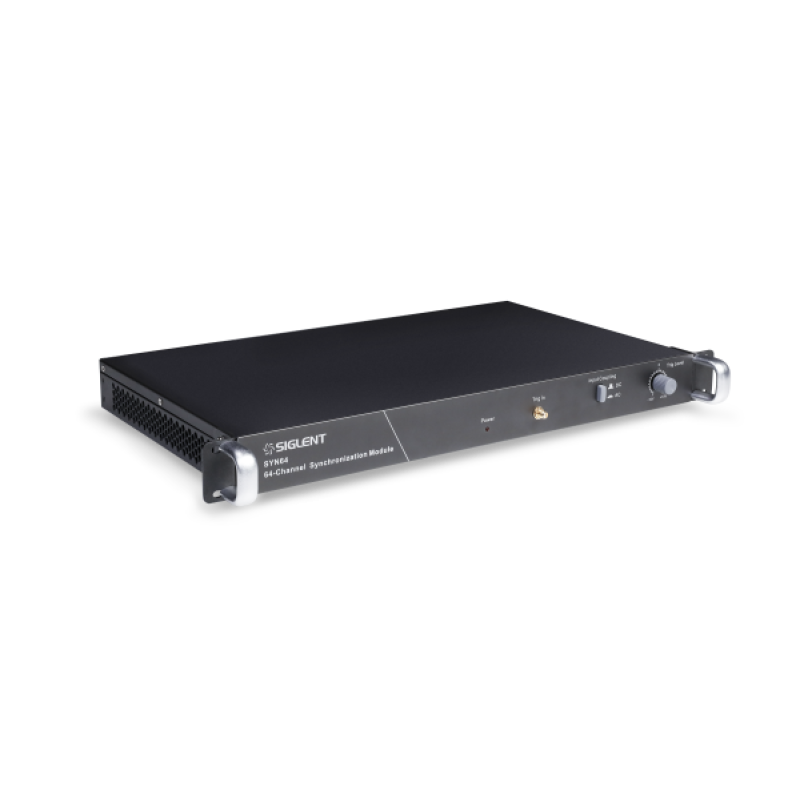

SIGLENT SYN64 64-Channel Synchronization Distributor

The SYN64 is a 1-to-64 high-speed digital signal distributor for synchronizing large multi-oscilloscope acquisition systems. It distributes one trigger input to 64 low-jitter, low-skew outputs so multiple instruments and channels can acquire events on a common timing reference.

Key capabilities

• 1 input to 64 synchronized outputs
• Low-jitter, low-skew trigger distribution
• DC-coupled and AC-coupled input modes
• −10 V to +10 V input range
• Adjustable −10 V to +10 V trigger-level range
• 1U rack-mount form factor

The SYN64 can also support channel-delay calibration by feeding its outputs to oscilloscope analog inputs. Contact RCCE for system architecture guidance, cabling requirements, Canadian pricing and availability.
