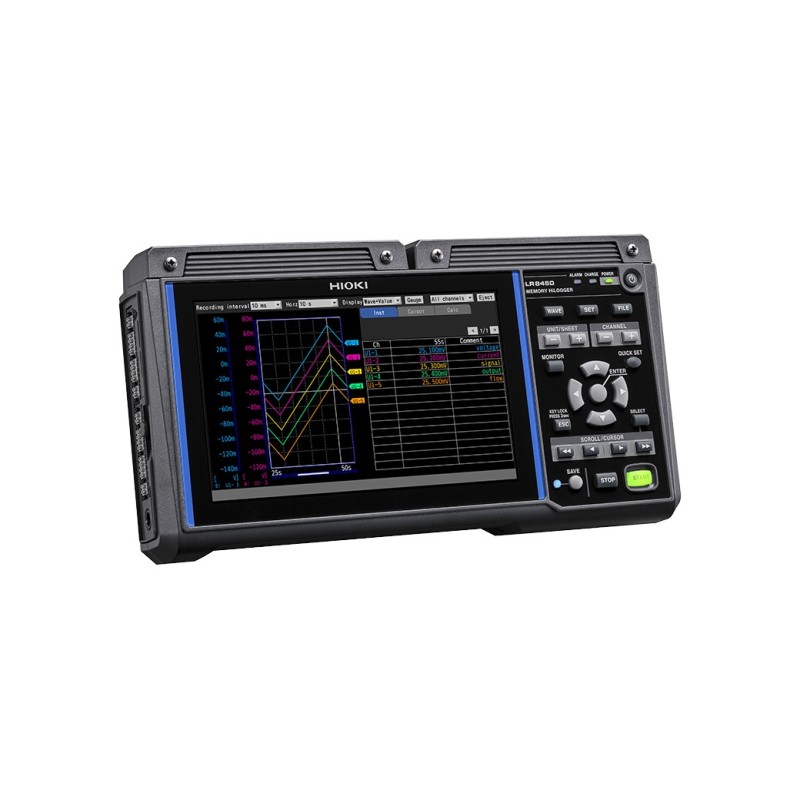

HIOKI LR8450-01 Wireless Data logger Kit

The HIOKI LR8450-01 wireless modular Memory HiLogger combines plug-in and wireless measurement modules for distributed voltage, temperature and other signal recording. The wireless model supports measurement points away from the logger.

Key Features

Accepts four plug-in modules plus seven wireless modules.
Supports up to 330 analog channels depending on module configuration; CAN channel capacity differs.
Recording intervals down to 1 ms with compatible modules.
7-inch display, SD/USB storage, wired LAN and wireless LAN connectivity.

Configuration: Measurement modules, sensors and input wiring are sold separately. This kit includes the logger, C1012 case, Z4003 card and two Z1007 batteries; wireless measurement modules are not included.

See Accessories Included for the exact quantities supplied with this configuration.

Contact RCC Electronics for configuration assistance and Canadian application support.

LR8450-01 Specifications

Instrument specifications apply under HIOKI's stated measurement conditions. Kit contents are listed separately.

No. of measurement channels	Up to 120 ch with plug-in modules, up to 330 ch with plug-in modules and wireless modules (U8555 and LR8535 can input up to 500 channels per module)
Pulse/logic input	[Number of ch] 8 ch (common GND, non-isolated, exclusive setting for pulse/logic input for individual channels) [Adaptive input format] Non-voltage contact, open collector, or voltage input [Count] 0 to 1000 M pulse, 1 pulse resolution [Rotational speed] 0 to 5000/n (r/s), 1/n (r/s) resolution, 0 to 300,000/n (r/min.), 1/n (r/min.) resolution, n: Number of pulses per rotation (1 to 1000) [Logic input] Records 1 or 0 for each recording interval
Recording intervals	1 ms, 2 ms, 5 ms* (*: Can be set only when using 1 ms/S modules), 10 ms to 1 hour, 22 selections (Data refresh interval can be set for each module)
Data storage	SD Memory Card/USB Drive (user-selectable) (Only storage media sold by Hioki are guaranteed for operation)
LAN interface	100BASE-TX / 1000BASE-T, DHCP, DNS support, Functions: Data acquisition, condition settings used with the Logger Utility software, configuring settings and controlling recording using communications commands, FTP server / FTP client, HTTP server, Email transmission, NTP client
Wireless LAN interface	IEEE 802.11b/g/n Communications range: 30 m, line of sight Encryption function: WPA-PSK/WPA2-PSK, TKIP/AES Usable channels: 1 to 11 Supported modes: Wireless module connectivity, access point, station Functions: Configuring settings and controlling recording using communications commands, FTP server / client, HTTP server, Email transmission, NTP client
USB interface	Series A receptacle × 2: USB 2.0 compliant (USB drive, keyboard, or hub)) Series mini-B receptacle × 1: Data acquisition, condition settings used with the Logger Utility, configuring settings and controlling recording using communications commands, transferring data from a connected SD Memory Card to a computer
SD card slot	SD standard-compliant slot × 1 (with SD memory card/SDHC memory card support), Guaranteed-operation options: ‌Z4001, Z4003
Display	7 inch TFT color liquid crystal display (WVGA 800 × 480 pixel)
Functions	Save waveform data in real time to the SD memory card or USB drive, numerical value calculations, waveform calculations, 8ch alarm output, voltage output ×2 (5 V /12 V /24 V selectable)
Power supply	[AC adapter] Using the Z1014 (100 to 240 V AC, 50/60 Hz), 95 VA Max. (including AC adapter), 28 VA Max. (exclusive of AC adapter) [Battery Pack] Using the Z1007 (accommodates 2 batteries), continuous use 4 hr (reference value for 2 pieces), 20 VA Max. [External power] 10 to 30 V DC, 28 VA Max.
Dimensions and mass	Without any modules: 272 mm (10.71 in.) W × 145 mm (5.71 in.) H × 43 mm (1.69 in.) D (excluding protrusions), 1108 g (39.1 oz.) (excluding battery pack) With 2 modules: 272 mm (10.71 in.) W × 198 mm (7.80 in.) H × 63 mm (2.48 in.) D (excluding protrusions) With 4 modules: 272 mm (10.71 in.) W × 252 mm (9.92 in.) H × 63 mm (2.48 in.) D (excluding protrusions)

HIOKI official specifications and accessories

LR8450-01 Wireless Data logger Kit Contents

The following quantities describe this kit configuration.

Qty	Model	Included item
1	LR8450-01	wireless modular Memory HiLogger
1	C1012	Carrying case
1	Z4003	8 GB SD memory card
2	Z1007	Rechargeable lithium-ion battery pack

Standard Accessories Supplied with the Instrument

These are supplied with the main instrument. Items already counted in the kit table are not repeated.

Qty	Model	Included item
1	Z1014	AC adapter
1	L1003	USB cable
1	—	Quick start manual
1	—	Radio-wave precautions

Included versus optional: Measurement modules, sensors and input wiring are sold separately. This kit includes the logger, C1012 case, Z4003 card and two Z1007 batteries; wireless measurement modules are not included.
